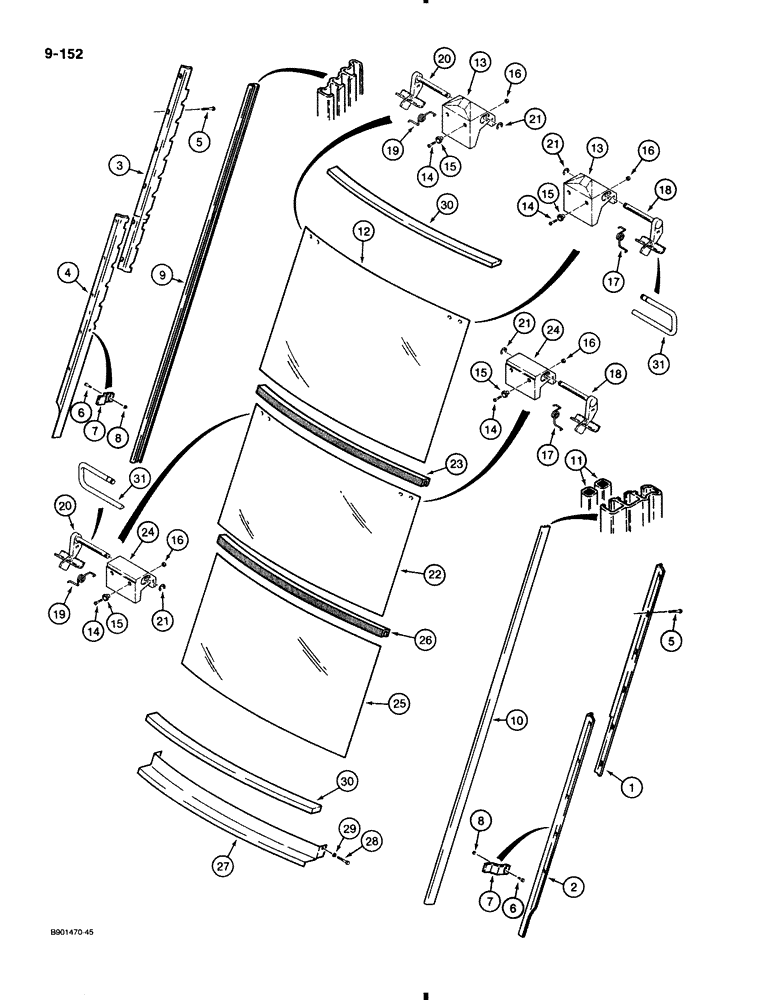

Запчасти Case 580K (9-152) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

97256C3

SUPPORT

BRACKET right hand, upper

1шт.

2

97257C3

SUPPORT

BRACKET right hand, lower

1шт.

3

97258C3

RETAINER

BRACKET left hand, upper

1шт.

4

97259C3

SUPPORT

BRACKET left hand, lower

1шт.

5

187-1309

SELF-TAP SCREW,Hex Flg Hd, #10 x 3/4"

SCREW tri-roundular, self tapping, No. 10 NC x 3/4"

18шт.

6

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

2шт.

7

D129974

BRACKET

lower rear window

2шт.

8

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

9

R52939

CHANNEL

track, left hand side, stationary

1шт.

10

R52940

CHANNEL

track, right hand side, retractable

1шт.

11

R52942

SEAL

SEAL foam, adhesive back, special, right hand track channel only, 60-15/32", 1536 mm long

2шт.

12

D129967

GLASS

upper rear window only

1шт.

13

97278C1

LATCH

upper rear window only

2шт.

14

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

machine, oval Phillips head, No. 10 - 24 NC x 1"

8шт.

15

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

special

8шт.

16

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

8шт.

17

2358426R1

SPRING right hand latch

2шт.

Replaced by part nbr F45398, which now subs to part nbr 1990727C1

1шт.

18

97254C1

LEVER

latch, plastic, right hand side, if used

2шт.

19

2358427R1

SPRING left hand latch

2шт.

Replaced by part nbr F45399, which now subs to part nbr 1990728C1

1шт.

20

97255C1

LEVER

latch, plastic, left hand side, if used

2шт.

21

A27795

RING

retaining, latch lever

4шт.

22

D129968

GLASS

center rear window only

1шт.

23

D126198

SEAL,894mm L

center window glass, 35-29/32", 912 mm long

1шт.

24

97277C1

LATCH

center window only

2шт.

25

D129969

GLASS

lower rear window only

1шт.

26

D126198

SEAL,894mm L

lower window glass, 35-29/32", 912 mm long

1шт.

27

D130002

BRACKET

horizontal, lower, mounts to cab frame

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL adhesive back, 20 mm x 10 mm x 912 mm

2шт.

31

1344232C1

LEVER

latch, metal, left hand and right hand, if used

4шт.
