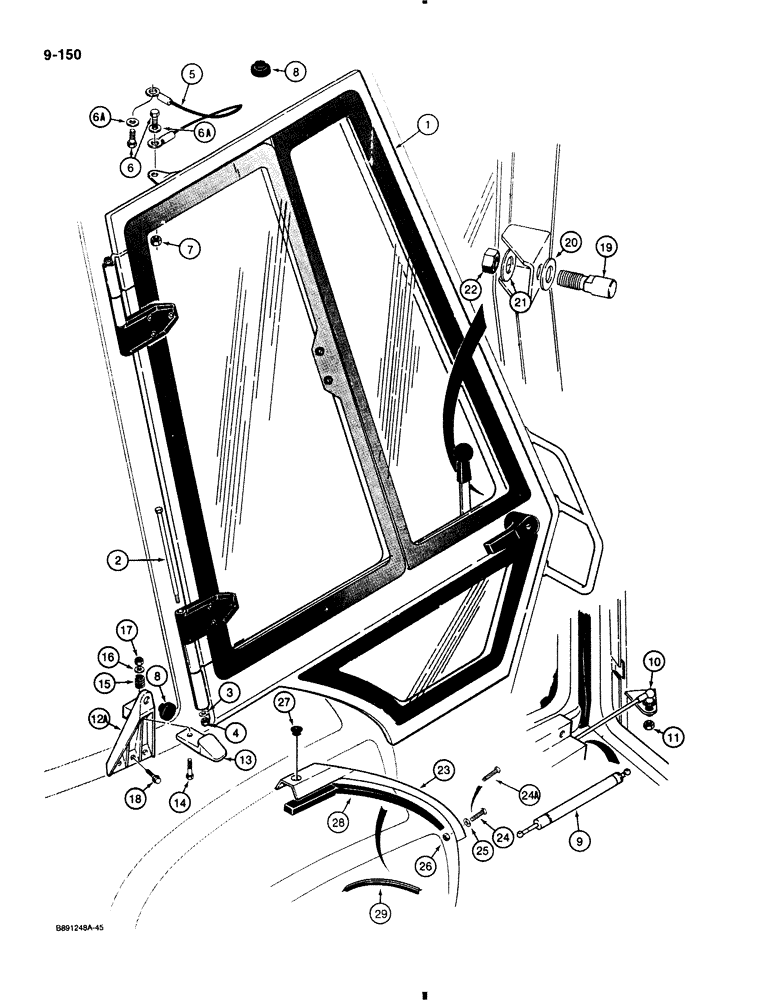

Запчасти Case 580K (9-150) - LEFT-HAND AND RIGHT-HAND CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, see Figures 9-146 through 9-150

1шт.

2

1340373C1

PIN

door hinge

4шт.

Some machines may have PIN 1340373C1 held in place w/ a retaining ring, F45340, instead of bolt, washer and nut. When replacing, order bolt 413-6152, washer F64046, and nut 131-203.

1шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

4шт.

Some machines may have PIN 1340373C1 held in place w/ a retaining ring, F45340, instead of bolt, washer and nut. When replacing, order bolt 413-6152, washer F64046, and nut 131-203.

1шт.

4

F45340

SNAP RING,#31, Ext, E-Type

RETAINER pin

4шт.

Some machines may have PIN 1340373C1 held in place w/ a retaining ring, F45340, instead of bolt, washer and nut. When replacing, order bolt 413-6152, washer F64046, and nut 131-203.

1шт.

5

R53560

CABLE

door, upper

2шт.

6

R53633

BOLT

shoulder, special, cable retaining

4шт.

6a

195-104

WASHER,3/8"

flat, plated, 3/8"

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, door shoulder bolt, 5/16" NC

2шт.

8

L60224

BUMPER

rubber, cab door frame and window latch

4шт.

New L-shaped bumper is part nbr 1977504C1

1шт.

9

F44881

CYLINDER ASSY.

CYLINDER left hand and right hand doors

2шт.

Spring clip F44883 has been removed from F44881 assy. and must be purchased separately.

1шт.

10

F44882

BALL

STUD ball, cylinder

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" - 18 NC

2шт.

12

R53957

SUPPORT

BRACKET left hand cab door window retaining, mounts to frame, not shown

1шт.

12a

R53956

SUPPORT

BRACKET right hand cab door window retaining, Serial Range: mounts-frame

1шт.

13

1344229C1

LATCH

door window to cab frame

2шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Latch to bracket Hex, 1/4"-20 x 1 1/4", G5

2шт.

15

D36669

SPRING

compression, left hand and right hand window latch release

2шт.

16

195-102

WASHER,1/4"

flat, plated, 1/4"

2шт.

17

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

18

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Bracket to frame Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

6шт.

19

R52735

LATCH

STRIKER door latch

2шт.

20

F44748

SPRING WASHER

SPRING Belleville, washer

2шт.

21

195-2029

WASHER,7/16" x 1 1/4" x .134"

flat, 7/16" x 1-1/4" x 1/8"

2шт.

22

131-1129

LOCK NUT,7/16"-14, GA

NUT hex, self locking, plated, 7/16" - 14 NC

2шт.

23

1344394C1

SUPPORT

BRACKET plastic, right hand fender sill

1шт.

23a

1344395C1

SUPPORT

BRACKET plastic, left hand fender sill, not shown

1шт.

24

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

machine, pan Phillips head, fender bracket, 1/4" NC x 1/2"

8шт.

24a

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

pan Phillips head, 1/4" NC x 3/4", used on models with optional deluxe interior

8шт.

25

195-2208

WASHER,.266" x 13/16" x .079"

flat, black Teflon, 1/4"

8шт.

26

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

27

353-405

PLUG,Dome, .562" hole, Nylon

nylon, fender bracket, 9/16"

2шт.

28

1977625C1

DOOR SEAL

SEAL foam strip, door sill, 711 mm long, cut to required length from 198530C2 bulk seal, see below, no longer used, order 1343949C1 seal, Ref. 29

1-2шт.

29

1343949C1

DOOR SEAL

rubber, door sill, 730 mm long

2шт.

198530C2

SEAL foam, bulk, 50 ft, 1524 cm long

1шт.
