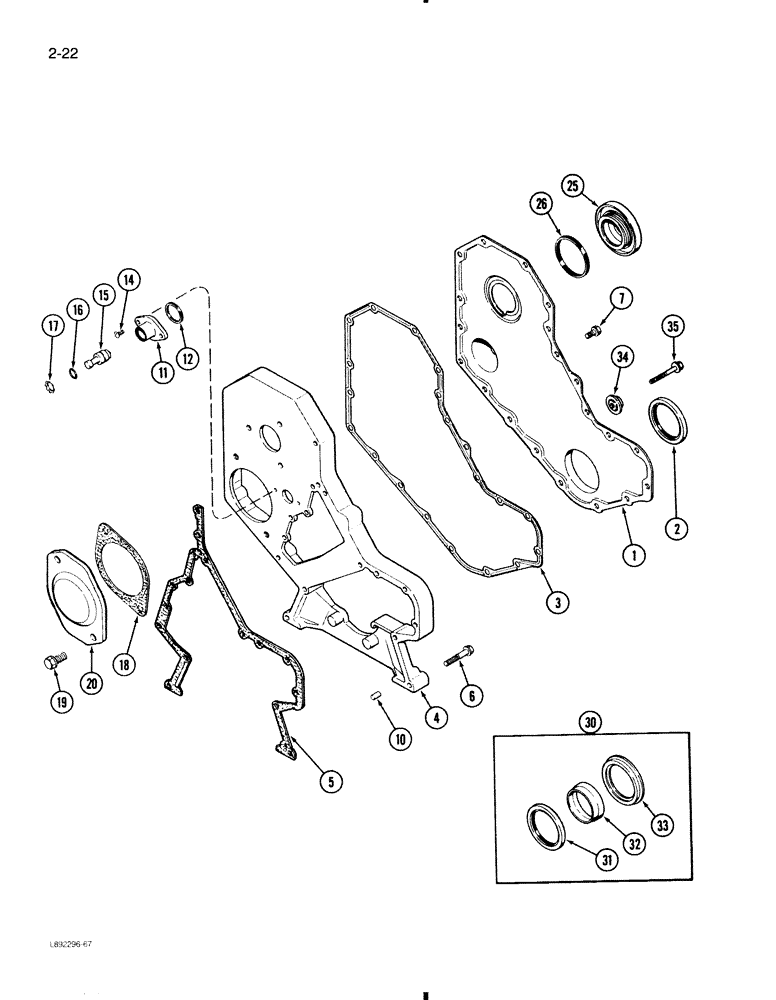

Запчасти Case 580K (2-022) - FRONT GEAR COVER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft, front, order Ref. 30

1шт.

3

J914385

GASKET,1.02mm Thk

cover, front

1шт.

4

J920518

HOUSING

timing gear, Replaces: J910411, J917759

1шт.

5

J916131

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

hex, 8 mm - 1.25 x 50 mm

11шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

hex, 8 mm - 1.25 x 16 mm

16шт.

The proper bolt to use is J924962 or J900629 bolt with Loctite.

1шт.

10

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm

2шт.

11

J905933

HOUSING

timing pin

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing, Replaces: J914092

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

16

J913994

O-RING

sealing

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J913192

GASKET

cover plate

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

hex flange, 12 mm - 1.75 x 25 mm

2шт.

20

J914868

COVER

PLATE cover, access, Replaces: J909918

1шт.

25

J903463

PLUG,M63 x 5

tachometer drive hole

1шт.

This is a screw in cap for electric tach drive. The bolt on cover for cable drive tach is J903476. Illustrated in 580 Super E catalog.

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

30

J904353

GASKET KIT

KIT oil seal, crankshaft, front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft, front

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL installation, seal

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL installation, seal

1шт.

34

J912772

RETAINER

belt

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- hex flange, 8 - 1.25 x 60 mm

1шт.
