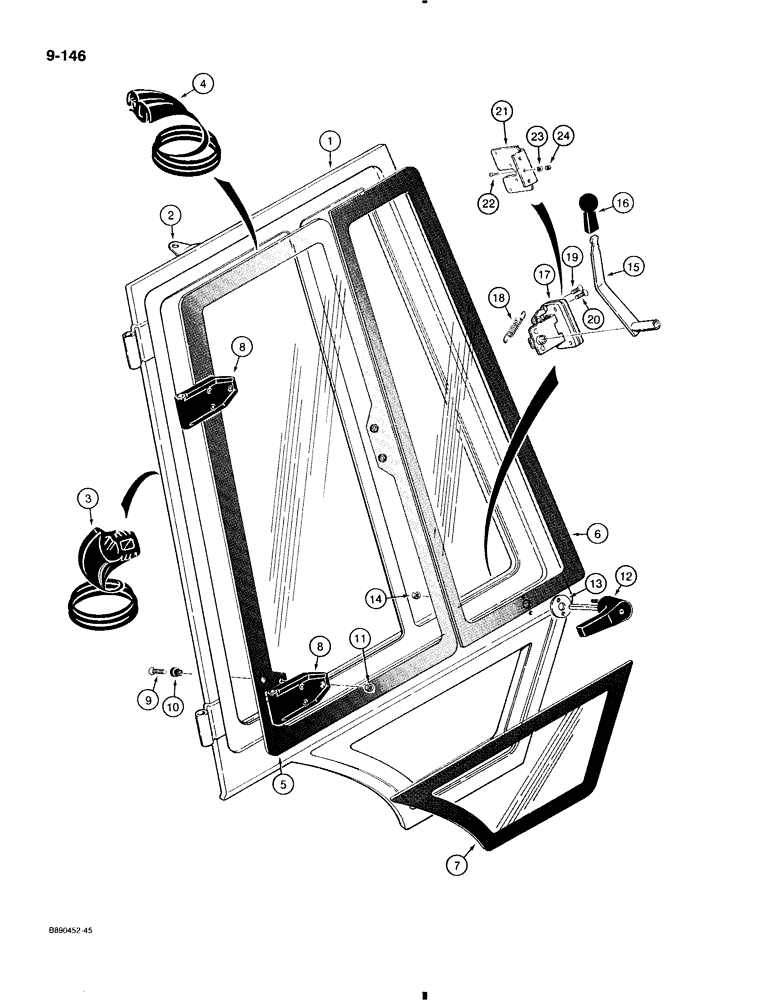

Запчасти Case 580K (9-146) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR (09) - CHASSIS/ATTACHMENTS

1

97401C1

DOOR ASSY.

FRAME right hand door

1шт.

1a

97402C1

DOOR

FRAME left hand door, not shown, Includes Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left hand or right hand door frame

1шт.

3

R52936

SEAL

bulb type, left hand and right hand door frames, 181-1/2", 4610 mm long

2шт.

Sealant used to retain P/N R52936 into the channel of door is 345-157 Loctite adhesive. Make sure the surfaces are free of all dust and oil.

1шт.

4

R53444

SEAL,2688mm L

bulb type, left hand and right hand window frames, 105-7/8", 2688 mm long

2шт.

5

R54106

GLASS

right hand door, rear, window, tinted

1шт.

5a

R54107

GLASS

left hand door, rear, window, tinted, not shown

1шт.

6

R52880

GLASS

right hand door, front, tinted

1шт.

6a

R52879

GLASS

left hand door, front, tinted, not shown

1шт.

7

R52884

GLASS

right hand door, lower, tinted

1шт.

7a

R52883

GLASS

left hand door, lower, tinted, not shown

1шт.

8

R52917

HINGE

glass, left hand and right hand door window

4шт.

9

179-166

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

machine, black, left hand and right hand door window hinge, oval Phillips head, No. 10 - 24 NC x 3/4"

12шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, glass to hinge, left hand and right hand door window hinge

12шт.

11

F45165

SPECIAL NUT,#10-24

NUT hex, self locking, No. 10 - 24 NC, Teflon coated, left hand and right hand door window hinge

12шт.

12

R53001

HANDLE

right hand door, outer

1шт.

12a

R53002

HANDLE

left hand door, outer, not shown

1шт.

13

F64342

GASKET,1.6mm Thk

door handle, left hand and right hand

2шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , LH and RH door handles #10-24, GB

4шт.

15

R54625

LEVER

inner left hand and right hand door latch handle

2шт.

16

D135387

GRIP

KNOB inner door latch levers

2шт.

17

R55000

LATCH ASSY.

LATCH ASSEMBLY, door, right hand, rotary

1шт.

17a

R55001

LATCH ASSY.

LATCH ASSEMBLY, door, left hand, rotary, not shown, Includes Ref. 18

1шт.

18

A180163

SPRING

extension, left hand or right hand door latch

1шт.

19

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW Phillips, left hand and right hand door latch, No. 10 - 16 NC x 3/4"

4шт.

20

171-240

SCREW,Cross Flat Hd, 1/4" - 20 x 1", W/ Nylon Insert

machine, Phillips flat, self locking, 1/4" NC x 1", left hand and right hand door latch

8шт.

21

1977402C1

SUPPORT

BRACKET latch, leftt hand rotary

1шт.

21a

1977401C1

SUPPORT

BRACKET latch, rightt hand rotary, not shown

1шт.

22

171-221

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

machine, flat head slotted, 5/16" NC x 3/4"

6шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

24

425-105

NUT,5/16"-18, G5

hex, zinc plated, 5/16" - 18 NC

6шт.
