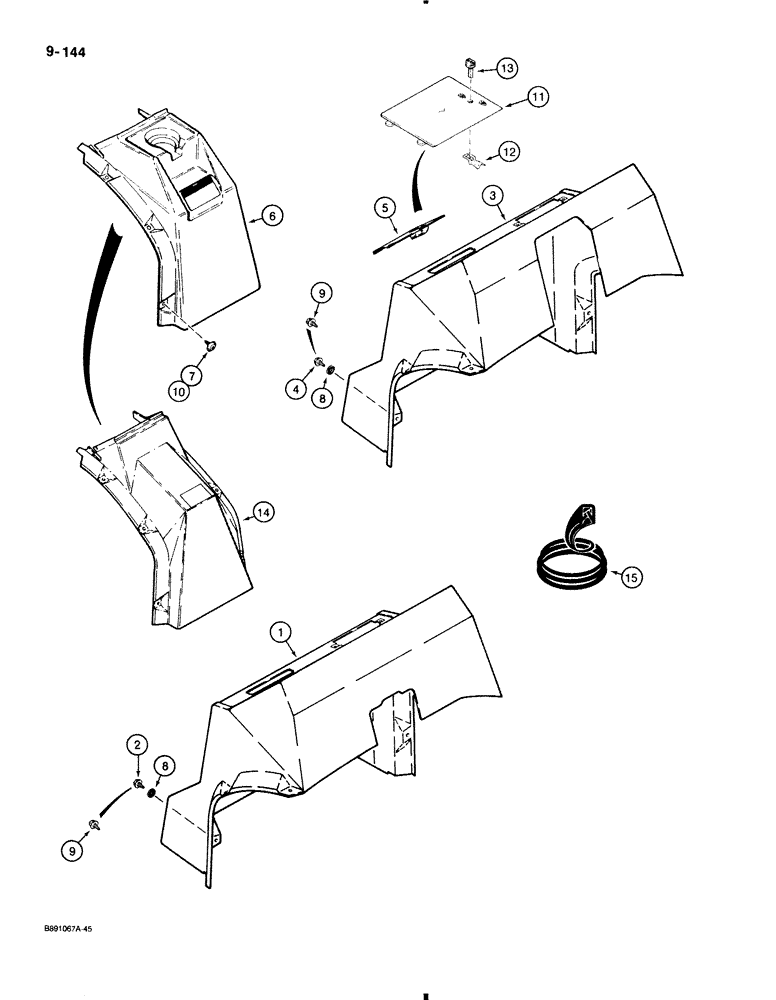

Запчасти Case 580K (9-144) - LEFT-HAND AND RIGHT-HAND CONSOLES, FOR ROPS CAB OR CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

D136507

PANEL, INSTRUMENTS

CONSOLE side instrument, right hand, ROPS canopy, subs to 103026A1 models only

1шт.

2

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self tapping, black, 1/4" NC x 3/4"

6шт.

3

D136579

CONSOLE

side instrument, right hand, ROPS cab models only, Serial Range: subs-103027A1

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self tapping, black, 1/4" NC x 3/4"

6шт.

5

D135678

COVER

fuse box, mounts in right-hand side instrument console, cab or canopy models, see Figure 9-188 for fuse location decal, no longer available, for service order Ref. 11 through 13 below

1шт.

6

D143491

SUPPORT

CONSOLE left hand side, with cup holder, cab models only, Includes 321-6958 decal, see Figure 9-188 for decals, no longer available, order D148506 console, Ref. 14

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self tapping, Phillips, with washer, No. 10 - 16 x 3/4"

6шт.

8

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

flat, 5/16"

6шт.

9

187-1925

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

SCREW Phillips head, self tapping, 1/4" NC x 1", used on models with optional deluxe interior

6шт.

10

F45174

SCREW,#10 - 16 x 3/4"

Phillips head, self tapping, No. 10 - 16 x 1", used on models with optional deluxe interior

6шт.

11

D145601

COVER

fuse box, used with Ref. 12 and 13, mounts in right hand side instrument console, cab or canopy models, see Figure 9-188 for fuse location decal

1шт.

12

D145206

CLASP

PAWL knob retainer

1шт.

13

D145207

BUTTON

KNOB lock

1шт.

14

D148506

PANEL

CONSOLE left hand side, without cup holder, cab models only, Includes 321-6958 decal, see Figure 9-188 for decals

1шт.

15

D43403

LINING

SEAL edge, side console, 5", cut to required length from bulk seal F42827, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, 116", 2946 mm long

1шт.
