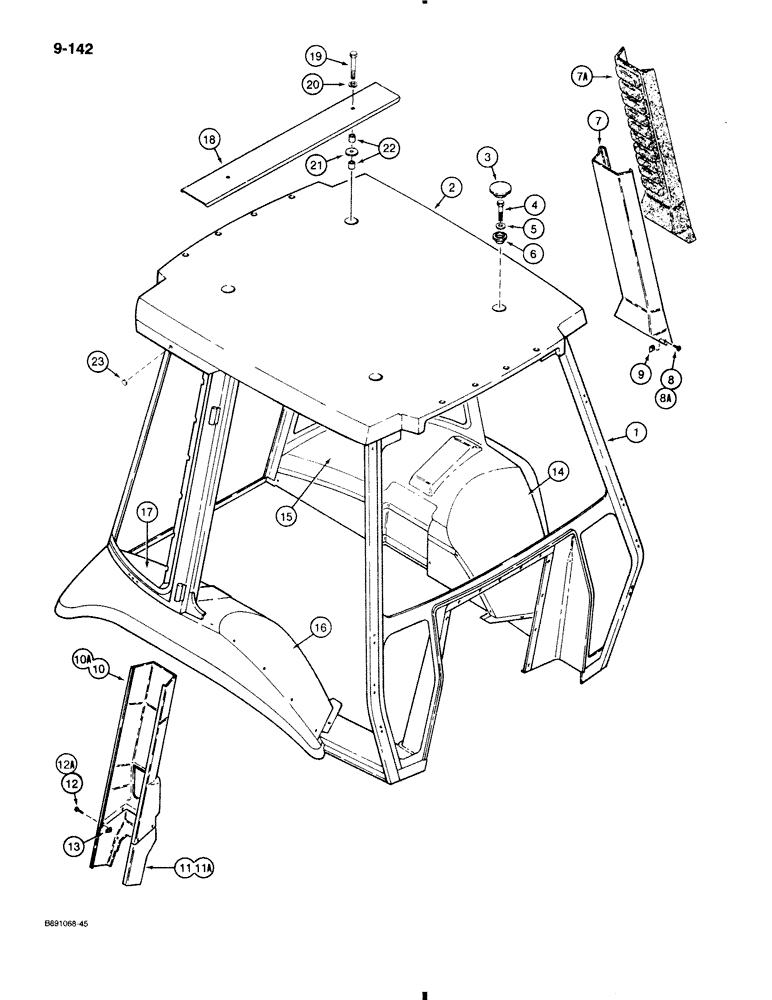

Запчасти Case 580K (9-142) - CAB FRAME, ROOF CAP, AND COVERS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME cab

1шт.

2

R52559

COVER

CAP roof, plastic

1шт.

The Plastic Roof Cap, R52559 was eliminated per NLB SB 001 93. Typical roof mounted items can be mounted direct to metal frame.

1шт.

3

R54262

PLUG

cap mounting holes, 2-5/64", 53 mm diameter

4шт.

4

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, 1/2"- 13 NC x 2-1/4", use with Loctite 242, blue, do not use plated bolt with Loctite

4шт.

5

195-106

WASHER,1/2"

flat, plated, 1/2"

4шт.

6

1344187C1

SPACER

special

4шт.

7

97293C1

COVER

plastic, left hand post

1шт.

7a

D138178

PANEL

COVER padded, left hand post, optional deluxe interior

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self tapping, Phillips, with washer, No. 10 - 16 x 3/4"

2шт.

8a

F45174

SCREW,#10 - 16 x 3/4"

self tapping, Phillips head, No. 10 - 16 x 1", used with optional deluxe interior covers

4шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

10

R53851

COVER

plastic, right hand post, upper

1шт.

10a

D138179

PANEL

COVER padded, right hand post, upper, optional deluxe interior

1шт.

11

97292C1

COVER

plastic, right hand post, lower

1шт.

11a

D138180

PANEL

COVER padded, right hand post, lower, optional deluxe interior

1шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW self tapping, Phillips, with washer, No. 10 - 16 x 3/4"

4шт.

12a

F45174

SCREW,#10 - 16 x 3/4"

self tapping, Phillips head, No. 10 - 16 x 1", used with optional deluxe interior covers

4шт.

13

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

14

D138181

LINING

COVER padded, left hand front fender, optional deluxe interior

1шт.

15

D138182

LINING

COVER padded, left hand rear fender, optional deluxe interior

1шт.

16

D138183

LINING

COVER padded, right hand front fender, optional deluxe interior

1шт.

17

D138184

LINING

COVER padded, right hand rear fender, optional deluxe interior

1шт.

18

97377C1

CHANNEL

PLATE mounting, used with Ref. 19-22, used on cab models with rotating beacon

1шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

195-2205

WASHER,17/32" x 2" x .238"

flat, plated, 1/2" ID x 2" OD x 1/4" thick

2шт.

22

D48528

SPACER

mounting plate

4шт.

23

L60224

BUMPER

rubber, cab roof

2шт.

New L-shaped bumper is P/N 1977504C1.

1шт.
