Запчасти Case 580K (9-140) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

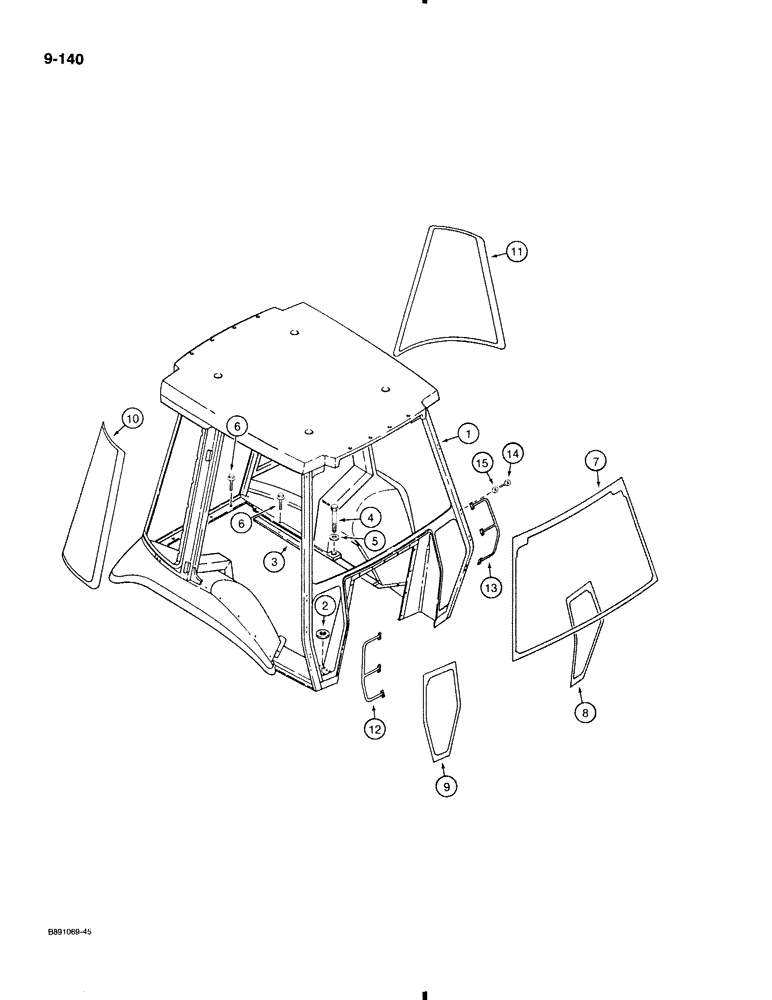

CAB ROPS, operators, machinery item, order from Machinery Price List, parts list Figure 9-140 through 9-174

1шт.

Cab on this machine is P/N 108762A1.

1шт.

P/N 108762A1 is a cab frame made up of P/N 108532A1 frame, P/N 151-525 rivet and P/N 1990696c2 S/N and model plate.

1шт.

This is part of P/N D104066 complete cab which is no longer available through whole goods. Dealer needs to order the P/N 108762A1 frame and all other primes separately and build up cab complete. This frame will fit the 580K-I, the 580K-III and the 580 Super K.

1шт.

2

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32" x 2" x 1/4", see Figure 9-108, Ref. 11 and 12, for bolt and insulator

2шт.

3

D90936

BAND

SEAL adhesive one side, rear fender to operator compartment frame, 112", 2845 mm long, cut from L35819 bulk

2шт.

4

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex head, 7/8" - 9 NC x 3-1/4", grade 8

4шт.

5

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

flat, hardened, 7/8"

4шт.

6

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self locking , 5/16" - 18 NC x 3/4"

11шт.

7

97290C1

GLASS

front windshield

1шт.

8

D131289

GLASS

lower left hand front window

1шт.

9

D131288

GLASS

lower right hand front window

1шт.

10

D126204

GLASS

right hand rear quarter panel window

1шт.

11

D126205

GLASS

left hand rear quarter panel window

1шт.

12

R53960

HANDLE

grab, right hand

1шт.

This is an ABS plastic handle. You may order P/N R54900 and R54901 (which are metal handles) in their place.

1шт.

13

R53961

HANDLE

grab, left hand

1шт.

This is an ABS plastic handle. You may order P/N R54900 and R54901 (which are metal handles) in their place.

1шт.

14

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT hex socket head, plated, 1/4" - 20 NC x 7/8", grade 8

12шт.

15

195-516

WASHER,#12

flat, No. 12, plated

12шт.

L35819

RUBBER SEAL

SEAL foam rubber, bulk roll, adhesive-back, 1", 25 mm wide x 1/8", 3 mm thick x 50 ft, 15.2 m long

1шт.
