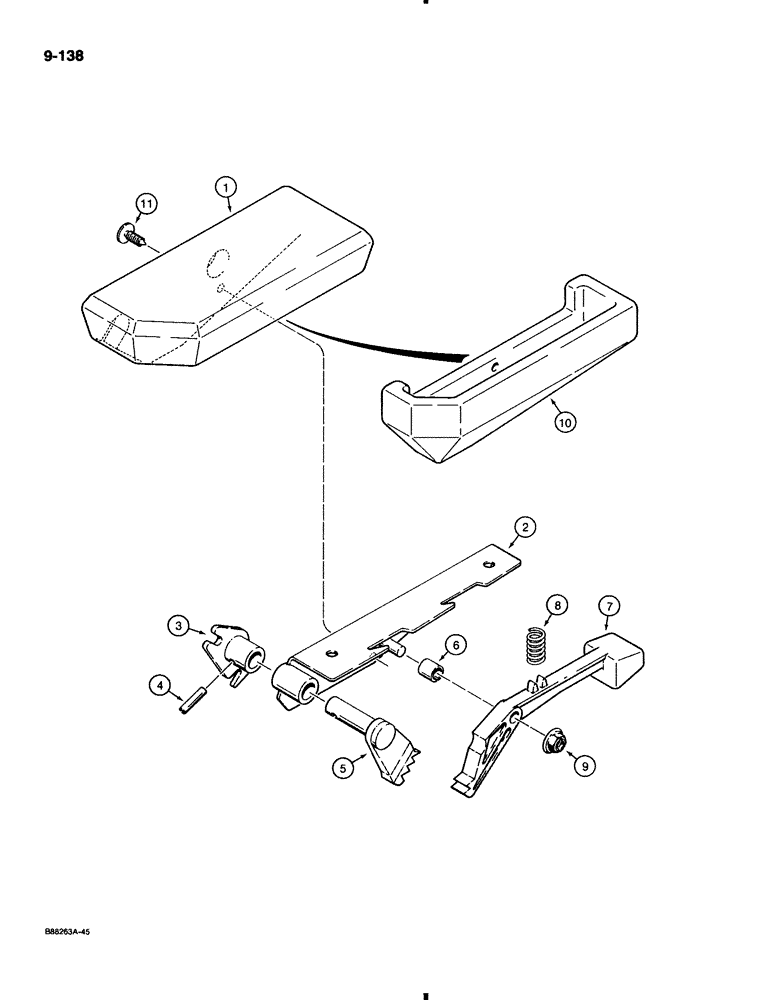

Запчасти Case 580K (9-138) - ARMRESTS (09) - CHASSIS/ATTACHMENTS

N14853

ARMREST

ASSEMBLY, left hand, not shown

1шт.

N14854

ARMREST

ASSEMBLY, right hand, Includes Ref. 1, 1A, 6-11, and P/N's N14856, N14862

1шт.

1

N14863

SHROUD

COVER armrest, upper, right-hand

1шт.

1a

N14860

SHROUD

COVER armrest, upper, left hand, not shown

1шт.

N14856

RETAINER

ASSEMBLY, armrest, left hand, not shown

1шт.

N14862

PAN

RETAINER ASSEMBLY, armrest, right hand, Includes Ref. 2-5A

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER armrest

1шт.

3

D149164

PAN

BRACKET retainer mounting, right hand

1шт.

3a

NSS

NOT SOLD SEPARAT

BRACKET retainer mounting, left hand, not shown

1шт.

NSS items LH bracket and LH lever should have read part nbrs D149163 and D149161 respectively. Both of these parts now sub to one assembly, 101575A1. RH bracket and lever, Ref. 3 & 5 now also sub to one assembly, 101576A1

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

5

D149162

PAN

LEVER stop, right hand

1шт.

5a

NSS

NOT SOLD SEPARAT

LEVER -top, left hand, not shown

1шт.

NSS items LH bracket and LH lever should have read part nbrs D149163 and D149161 respectively. Both of these parts now sub to one assembly, 101575A1. RH bracket and lever, Ref 3 & 5 now also sub to one assembly, 101576A1

1шт.

6

N14857

SPACER

split

1шт.

7

N14858

LATCH

lever, armrest

1шт.

8

N14859

SPRING

compression

1шт.

9

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on, 3/8"

1шт.

10

N14861

PAD

ARMREST lower, retainer, right-hand

1шт.

10a

N14855

PAD

ARMREST lower, retainer, left-hand, not shown

1шт.

11

N14323

CLIP

RETAINER brown, plastic

1шт.
