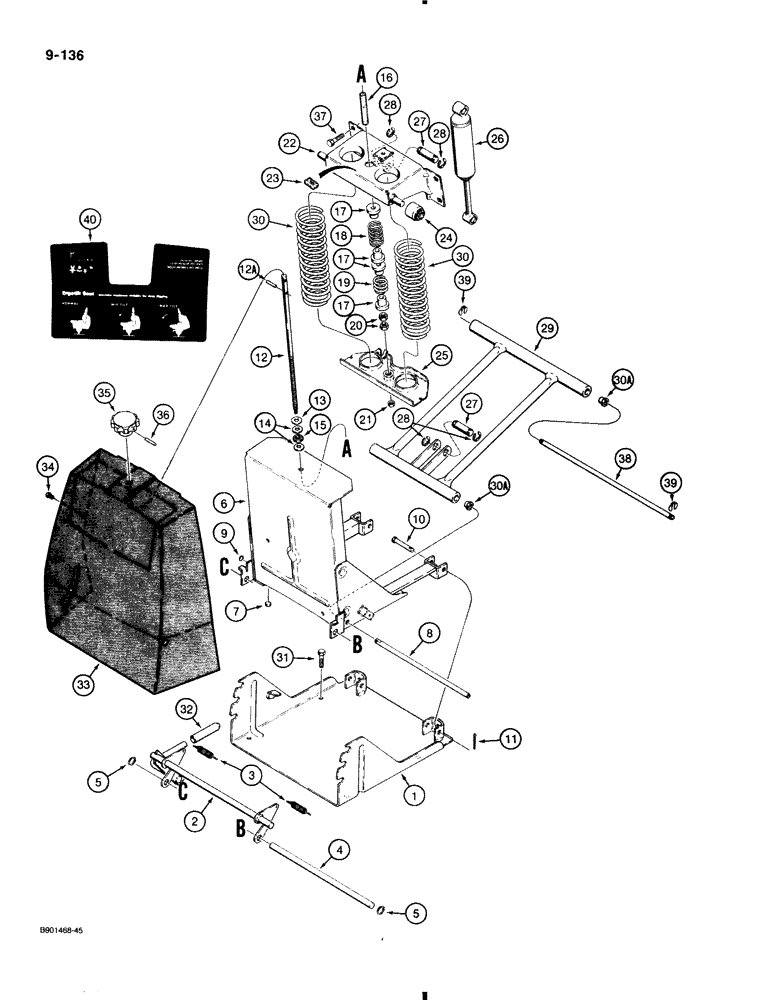

Запчасти Case 580K (9-136) - SUSPENSION SEAT ADJUSTER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

N14297

SUSPENSION

ADJUSTER ASSEMBLY, all suspension seats, Includes Ref. 1-30

1шт.

1

NSS

NOT SOLD SEPARAT

BASE support

1шт.

2

N14310

LEVER

seat tilt

1шт.

3

N9240

VALVE SPRING

SPRING extension

2шт.

4

N14312

SHAFT

rear, seat tilt lever

1шт.

5

N14313

OIL SEAL

RING snap, shaft retaining

2шт.

6

NSS

NOT SOLD SEPARAT

HOUSING adjuster assembly

1шт.

7

N14316

BUMPER

housing

2шт.

8

N8492

SHAFT

seat adjuster arm, rear

1шт.

9

N14306

OIL SEAL

RING snap, shaft retaining

1шт.

10

N14309

PIN

clevis, special, Serial Range: housing-base

2шт.

11

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

12

N14307

ADJUSTMENT SCREW

adjusting, seat

1шт.

12a

D144457

PIN

spring

1шт.

13

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

14

N8502

WASHER

thrust, adjuster knob

2шт.

15

F13537

THRUST BEARING

BEARING thrust, adjuster knob

1шт.

16

N8501

SPACER

vinyl, 7/16" x 9/16" x 3-1/64"

1шт.

17

N8495

RETAINER

SEAT springs, seat adjuster

4шт.

18

N8496

VALVE SPRING

SPRING compression, upper, seat adjuster

1шт.

19

N8494

VALVE SPRING

SPRING compression, lower, seat adjuster

1шт.

20

N8497

NUT

special, seat adjuster, upper

2шт.

21

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self locking, plated, 1/4" - 20 NC

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET springs, upper

1шт.

23

N8484

INSULATOR BLOCK

BUMPER rubber

1шт.

24

N8500

ROLLER

upper bracket, seat adjustment

2шт.

25

N8493

SUPPORT ASSY.

BRACKET springs, lower

1шт.

26

N8488

SHOCK ABSORBER

ABSORBER shock, adjuster assembly

1шт.

27

N8485

AXLE PIN

PIN shock absorber mounting

2шт.

28

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , pin #62, .480" Dia, E-Type

4шт.

29

NSS

NOT SOLD SEPARAT

ARM seat adjuster

1шт.

30

N8498

VALVE SPRING

SPRING compression

2шт.

30a

N13754

BUSHING

BEARING flanged

4шт.

31

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

32

N14311

COVER

HANDLE seat tilt lever

1шт.

33

N14314

COVER

shroud, housing

1шт.

34

N8487

RIVET

plastic, yellow, weight indicator

1шт.

35

N14308

KNOB

seat adjuster

1шт.

36

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

37

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

38

N14430

SHAFT

seat adjuster arm, front

1шт.

39

D95093

RING

shaft retaining

2шт.

40

N14315

DECAL

seat tilt adjustment, see Figure 9-186 for decal

1шт.
