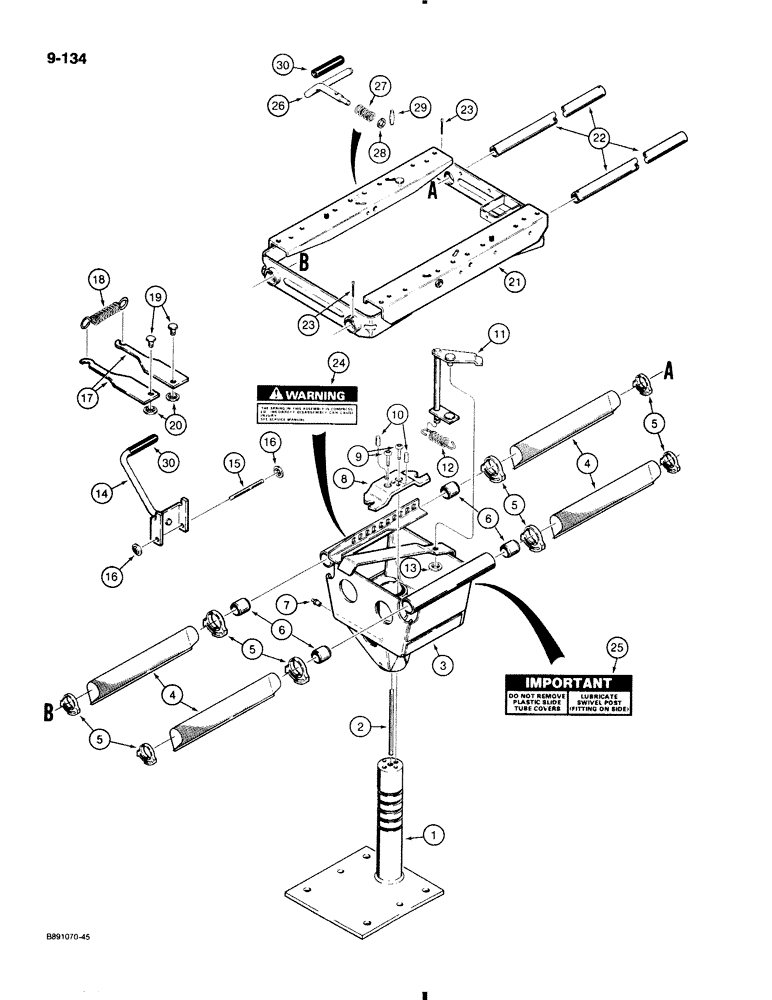

Запчасти Case 580K (9-134) - SUSPENSION SEAT SUPPORT, WITH 1/2 INCH DIAMETER LATCH PIN LEVER (ITEM 11) (09) - CHASSIS/ATTACHMENTS

D147655

PEDESTAL

SUPPORT ASSEMBLY, D147689 or D147692 suspension seat, Includes Ref. 1-29

1шт.

1

N14299

BASE

seat support

1шт.

2

N14300

SHAFT

seat support

1шт.

3

N14301

SUPPORT ASSY.

RISER seat support

1шт.

4

D147877

BELLOWS

slide tube

4шт.

5

N14105

CLAMP

bellows

8шт.

6

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING slide tube

4шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight, 5/16" drive

1шт.

8

NSS

NOT SOLD SEPARAT

LATCH seat swivel

1шт.

Part of latch kit P/N D147775

1шт.

9

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, 5/16" NC x 1/2", grade 8

2шт.

Part of latch kit P/N D147775

1шт.

10

135-84

GROOVED PIN,5/16" x 3/4", Type A

PIN, GROOVED, 5/16" x 3/4", Type A

2шт.

Part of latch kit P/N D147775

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER seat swivel, 1/2" diameter

1шт.

Part of latch kit P/N D147775

1шт.

12

N8341

SPRING

seat swivel

1шт.

Part of latch kit P/N D147775

1шт.

13

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

1шт.

Part of latch kit P/N D147775

1шт.

14

N14294

HANDLE

seat height adjustment

1шт.

15

N6962

SHAFT

pivot

1шт.

16

131-434

LOCK NUT,Push, 5/16"

NUT push on type, 5/16"

2шт.

17

N6963

LATCH

seat height adjustment

2шт.

18

N6970

CATCH

SPRING latch, seat height adjustment

1шт.

19

N6964

PIN,9.53mm OD x 19.05mm L

latch

2шт.

20

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

2шт.

21

N14302

SLIDE

seat

1шт.

22

N14305

TUBE

slide

2шт.

23

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

24

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See Figure 9-186 for decal

1шт.

25

N14295

DECAL

Important, do not remove plastic slide tube covers, lubricate swivel post, see Figure 9-186 for decal

1шт.

26

D144387

HANDLE

slide release, side mounted

1шт.

27

D144430

SPRING

compression

1шт.

28

D144431

WASHER

flat, special

1шт.

29

D144432

PIN

slide lock

1шт.

30

N14311

COVER

GRIP seat levers, Included with seat assembly

2шт.

D147775

LATCH

KIT latch, Includes Refs. 8, 9, 10, 11, 12 and 13

1шт.
