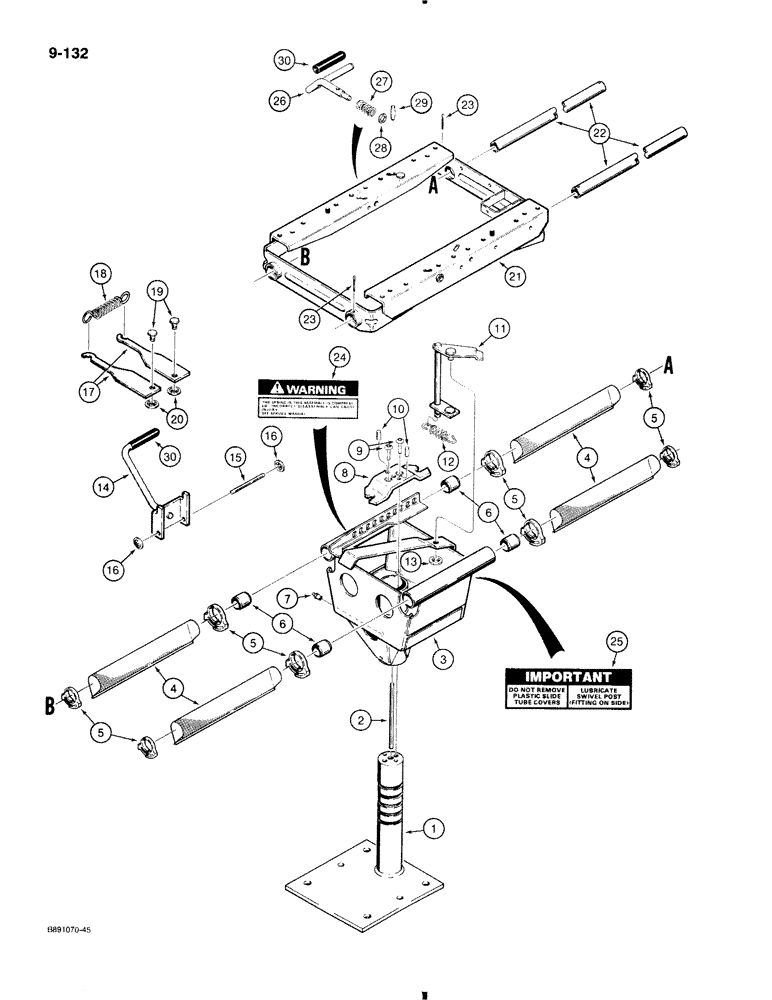

Запчасти Case 580K (9-132) - SUSPENSION SEAT SUPPORT, WITH 3/8 INCH DIAMETER LATCH PIN LEVER (ITEM 11) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
N14296
PEDESTAL
SUPPORT ASSEMBLY, D135232 or D136384 suspension seat, no longer available, order D147655 support on Figure 9-134, Includes Ref. 1-29
1шт.
1
N14299
BASE
seat support
1шт.
2
N14300
SHAFT
seat support
1шт.
3
N14301
SUPPORT ASSY.
RISER seat support
1шт.
4
D147877
BELLOWS
slide tube
4шт.
5
N14105
CLAMP
bellows
8шт.
6
N6950
TUBE,1.015" ID x 1.1905" OD x 1"
BEARING slide tube
4шт.
7
219-16
LUBE NIPPLE,5/16" NPTF
FITTING grease, straight, 5/16" drive
1шт.
8
N8339
LATCH
seat swivel
1шт.
9
164-407
HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"
BOLT hex socket button head, 5/16" NC x 1/2", grade 8
2шт.
10
135-84
GROOVED PIN,5/16" x 3/4", Type A
PIN, GROOVED, 5/16" x 3/4", Type A
2шт.
11
N14293
KIT
LEVER seat swivel, 3/8" diameter
1шт.
12
N8341
SPRING
seat swivel
1шт.
13
131-435
PUSH-ON NUT,Push, 3/8"
NUT push on type, 3/8"
1шт.
14
N14294
HANDLE
seat height adjustment
1шт.
15
N6962
SHAFT
pivot
1шт.
16
131-434
LOCK NUT,Push, 5/16"
NUT push on type, 5/16"
2шт.
17
N6963
LATCH
seat height adjustment
2шт.
18
N6970
CATCH
SPRING latch, seat height adjustment
1шт.
19
N6964
PIN,9.53mm OD x 19.05mm L
latch
2шт.
20
131-435
PUSH-ON NUT,Push, 3/8"
NUT push on type, 3/8"
2шт.
21
N14302
SLIDE
seat
1шт.
22
N14305
TUBE
slide
2шт.
23
132-336
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
2шт.
24
321-6774
WARNING DECAL
DECAL, WARNING, The spring in this assembly is compressed, See Figure 9-186 for decal
1шт.
25
N14295
DECAL
Important, do not remove plastic slide tube covers, lubricate swivel post, see Figure 9-186 for decal
1шт.
26
D144387
HANDLE
slide release, side mounted
1шт.
27
D144430
SPRING
compression
1шт.
28
D144431
WASHER
flat, special
1шт.
29
D144432
PIN
slide lock
1шт.
30
N14311
COVER
GRIP seat levers, Included with seat assembly
2шт.
