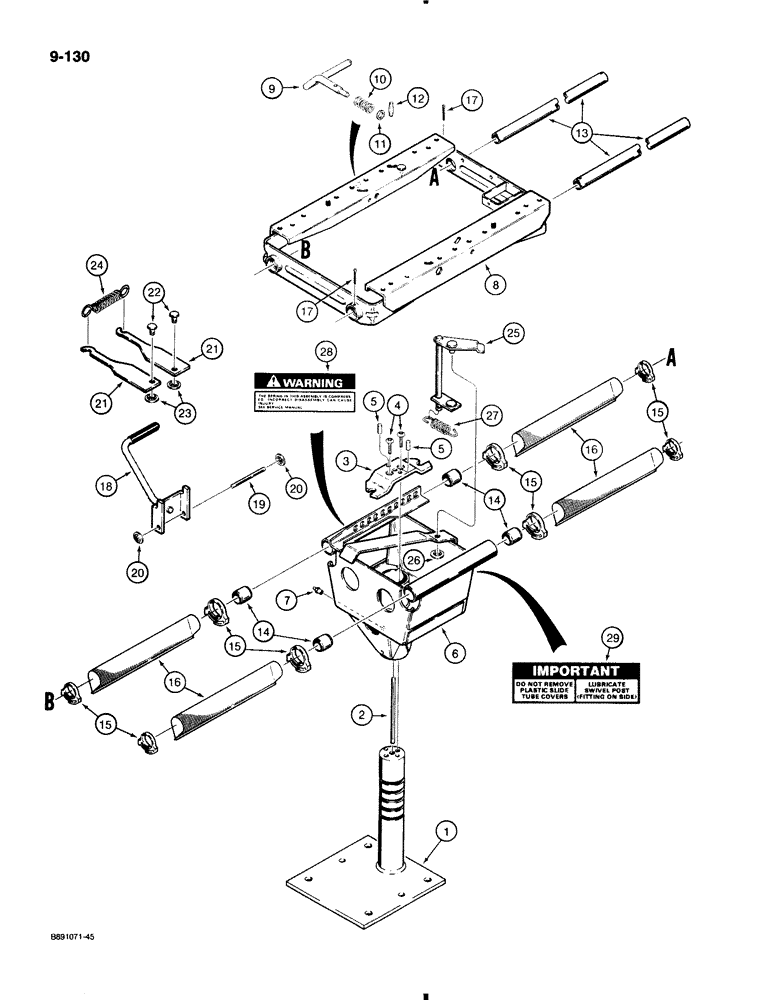

Запчасти Case 580K (9-130) - STANDARD SEAT SUPPORT, WITH 1/2 INCH DIAMETER LATCH PIN LEVER (ITEM 25) (09) - CHASSIS/ATTACHMENTS

D147644

PEDESTAL

SUPPORT ASSEMBLY, standard seat, Includes Ref. 1-29

1шт.

1

N14289

BASE

seat support

1шт.

2

N8340

SHAFT

seat support

1шт.

3

NSS

NOT SOLD SEPARAT

LATCH seat swivel

1шт.

Part of latch kit P/N D147776

1шт.

4

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, 5/16" NC x 1/2", grade 8

2шт.

Part of latch kit P/N D147776

1шт.

5

135-84

GROOVED PIN,5/16" x 3/4", Type A

PIN, GROOVED, 5/16" x 3/4", Type A

2шт.

Part of latch kit P/N D147776

1шт.

6

N14290

SUPPORT

RISER seat support

1шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight, 5/16" drive

1шт.

8

N14291

SLIDE

seat

1шт.

9

D144387

HANDLE

slide release, side mounted

1шт.

10

D144430

SPRING

compression

1шт.

11

D144431

WASHER

flat, special

1шт.

12

D144432

PIN

slide lock

1шт.

13

N14292

TUBE

slide

2шт.

14

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING slide tube

4шт.

15

N14105

CLAMP

bellows

8шт.

16

D147877

BELLOWS

slide tube

4шт.

17

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

18

N14294

HANDLE

seat height adjustment

1шт.

19

N6962

SHAFT

pivot

1шт.

20

131-434

LOCK NUT,Push, 5/16"

NUT push on type, 5/16"

2шт.

21

N6963

LATCH

seat height adjustment

2шт.

22

N6964

PIN,9.53mm OD x 19.05mm L

latch

2шт.

23

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

2шт.

24

N6970

CATCH

SPRING latch, seat height adjustment

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER seat swivel, 1/2" diameter

1шт.

Part of latch kit P/N D147776

1шт.

26

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

1шт.

Part of latch kit P/N D147776

1шт.

27

N8341

SPRING

seat swivel, 2-3/8", 60 mm long

1шт.

Part of latch kit P/N D147776

1шт.

28

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See Figure 9-186 for decal

1шт.

29

N14295

DECAL

Important, do not remove plastic slide tube covers, lubricate swivel post, see Figure 9-186 for decal

1шт.

D147776

LATCH

KIT latch, Includes Refs. 3, 4, 5, 25, 26 and 27

1шт.
