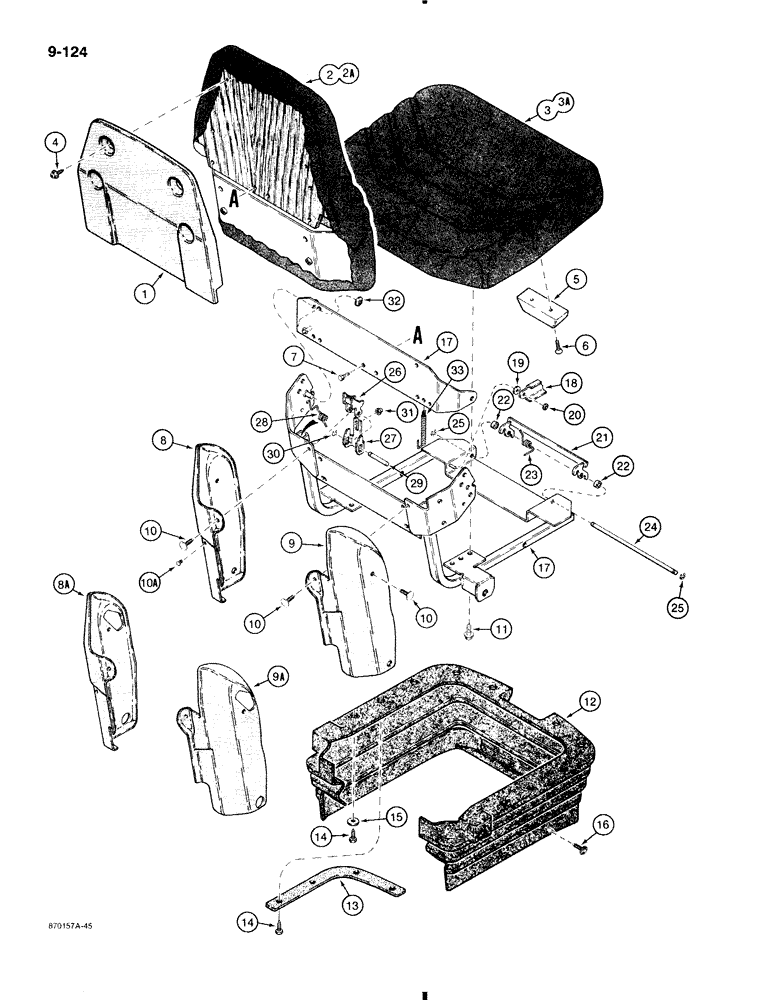

Запчасти Case 580K (9-124) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY, suspension, see Figure 9-120 for suspension seat options, for seat support and adjuster, see Figures 9-132 through 9-136

1шт.

N14339

SEAT

ASSEMBLY, D136384 suspension seat only, vinyl, without armrests, cab or canopy models, for seat support and adjuster, see Figures 9-132 through 9-136, Includes Ref. 1-16, P/N's N14317, N14852

1шт.

1

D144559

SHROUD

COVER backrest, upper, shield

1шт.

2

N14321

CUSHION

BACKREST seat, cloth

1шт.

2a

N14341

CUSHION

BACKREST seat, vinyl

1шт.

3

N14318

CUSHION

seat, cloth

1шт.

3a

N14340

CUSHION

seat, vinyl

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW Phillips, hex washer head, special

4шт.

5

N14322

HANDLE

seat cushion adjustment

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5шт.

8

D144721

SHROUD

COVER frame, left hand shroud, used on seats without armrests

1шт.

8a

D144920

SHROUD

COVER frame, left hand shroud, used on seats with armrests

1шт.

9

D144720

SHROUD

COVER frame, right hand shroud, used on seats without armrests

1шт.

9a

D144919

SHROUD

COVER frame, right hand shroud, used on seats with armrests

1шт.

10

N14323

CLIP

RETAINER plastic, brown

4шт.

10a

N8487

RIVET

plastic, yellow, weight indicator

1шт.

11

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

N14339 seat only Hex Flg, 5/16"-18 x 5/8", Serr

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

All suspension seats except N14339 seat Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

12

N14320

BOOT

seat, protective covering

1шт.

13

N14319

SUPPORT

BRACKET boot support

2шт.

14

N13703

CLIP,ELECTRICAL

SCREW hex head, special

10шт.

15

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

16

D144429

CLIP

RETAINER plastic, black

9шт.

N14317

FUNNEL

FRAME ASSEMBLY, N14339 seat, for service order N14852 frame

1шт.

N14852

FUNNEL

FRAME ASSEMBLY, seat, not shown, Includes Ref. 17-33

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

18

N14325

TOGGLE

BRACKET toggle

1шт.

19

195-102

WASHER,1/4"

flat, plated, 1/4"

1шт.

20

131-433

PUSH-ON NUT,Push, 1/4"

NUT push on type, 1/4"

1шт.

21

N14324

LATCH

BRACKET latch, cushion adjustment

1шт.

22

N14334

SPACER

nylon

2шт.

23

N14335

SPRING

torsion

1шт.

24

N14332

SHAFT

front seat bracket latch

1шт.

25

N14331

OIL SEAL

RING C-type, retaining

2шт.

REF

INSTRUCTION

SEAT ASSEMBLY, suspension

1шт.

N14852

FUNNEL

FRAME ASSEMBLY, seat, not shown

1шт.

26

N14326

LATCH

BRACKET latch, upper, backrest adjustment

1шт.

27

N14327

BACK

BRACKET latch, lower, backrest adjustment

1шт.

28

N14335

SPRING

torsion, backrest

1шт.

29

N14333

SHAFT

PIN backrest latch

1шт.

30

N14331

OIL SEAL

RING C-type, retaining

1шт.

31

N14336

NUT

push on type, special

1шт.

32

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

2шт.

33

N14337

SPRING

extension

1шт.
