(9-122) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY

Запчасти Case 580K (9-122) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

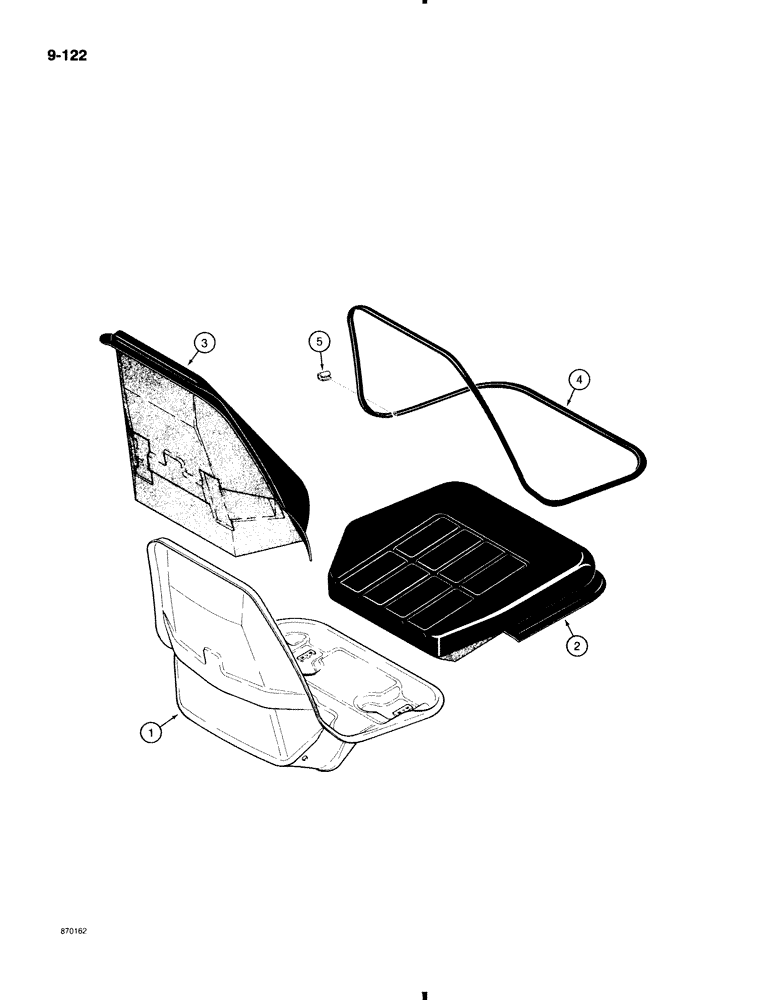

Схема запчастей Case 580K - (9-122) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
4
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D123196

SEAT ASSY.

SEAT ASSEMBLY, standard, for seat support see Figure 9-128 or 9-130, Includes Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

seat, Includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

backrest, Includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

See Figure 9-124 for optional suspension seat assemblies.

1шт.

345-44

ADHESIVE

pad retaining, in a can, 23 fl. ounces, 680 ml, not shown

1шт.

N7802

CLIP

KIT clip, Includes Ref. 5 clip above plus 6 additional narrow clips

1шт.

See Figure 9-124 for optional suspension seat assemblies.

1шт.
