Запчасти Case 580K (9-120) - SEATS AND MOUNTING PARTS, STANDARD SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

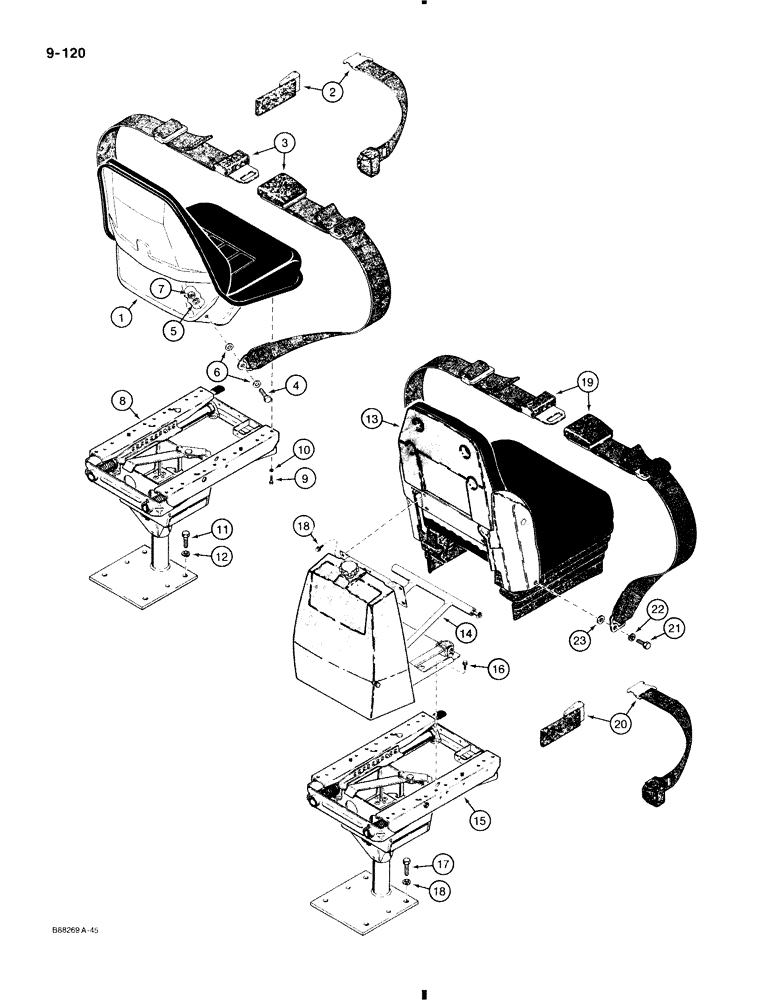

SEAT ASSEMBLY, standard, parts list Figure 9-122

1шт.

2

D135623

SAFETY BELT

BELT seat, with retractor, 2", 51 mm wide, if used

1шт.

3

D85816

SAFETY BELT

BELT seat, 3", 76 mm wide, if used

1шт.

4

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

195-529

WASHER,7/16", SAE

flat, plated, 7/16"

4шт.

7

425-117

NUT,7/16"-20, G5

hex, plated, 7/16" - 20 NF

2шт.

8

REF

INSTRUCTION

SUPPORT ASSEMBLY, standard seat, for correct assembly and components, see Figure 9-128 or 9-130

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

D135232

SEAT

ASSEMBLY, suspension, cloth, with armrests shown on Figure 9-138, cab models only, see Figure 9-124 for seat assembly, includes N14296 support, N14297 adjuster, armrests, and Ref. 31-40 on Figure 9-136, no longer available, order D147689 seat assy

1шт.

D135232

SEAT

ASSEMBLY, suspension, cloth, with armrests shown on Figure 9-138, cab models only, see Figure 9-124 for seat assembly, Includes N14296 support, N14297 adjuster, armrests, and Ref. 31-40 on Figure 9-136, no longer available, order D147689 seat assy

1шт.

D147689

SEAT

ASSEMBLY, suspension, cloth, with armrests shown on Figure 9-138, cab models only, see Figure 9-124 for seat assembly, Includes Ref. 31-40 on Figure 9-136

1шт.

D136384

SEAT

ASSEMBLY, suspension, vinyl, without armrests, also includes Ref. 31-40 on Figure 9-136, no longer available, order D147692 seat assembly

1шт.

D147690

SEAT ASSY.

SEAT ASSEMBLY, suspension, vinyl, with armrests on Figure 9-138, see Figure 9-124 and 9-126 for seat assembly, also includes Ref. 31-40 on Figure 9-136

1шт.

D147692

SEAT

ASSEMBLY, suspension, vinyl, without armrests, see Figure 9-124 for seat assembly, also includes Ref. 31-40 on Figure 9-136, Includes Ref. 13-16

1шт.

13

N14339

SEAT

ASSEMBLY, D136384 suspension seat only, vinyl, cab or canopy models, without armrests, parts list Figure 9-124, mounting parts

1шт.

14

N14297

SUSPENSION

ADJUSTER ASSEMBLY, D135232, D136384, D147689, or D147692 suspension seat, parts list Figure 9-136, mounting parts

1шт.

15

N14296

PEDESTAL

SUPPORT ASSEMBLY, D135232 or D136384 suspension seat, parts list Figure 9-132, mounting parts

1шт.

15

D147655

PEDESTAL

SUPPORT ASSEMBLY, D147689 or D147692 suspension seat, parts list Figure 8-134, mounting parts

1шт.

16

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Suspension seat and mounting parts Hex Flg, 5/16"-18 x 5/8", Serr

8шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Suspension seat and mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Suspension seat and mounting parts 1/2"

4шт.

19

D85816

SAFETY BELT

BELT seat, plated, suspension seat and mounting parts, 3", 76 mm wide, if used

1шт.

20

D135623

SAFETY BELT

BELT seat, plated, suspension seat and mounting parts, with retractor, if used, 2", 51 mm wide

1шт.

21

114-303

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex head, plated, suspension seat and mounting parts, 7/16" - 20 NF x 1-1/2"

2шт.

22

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Suspension seat and mounting parts 7/16"

2шт.

23

195-529

WASHER,7/16", SAE

flat, plated, suspension seat and mounting parts, 7/16"

2шт.
