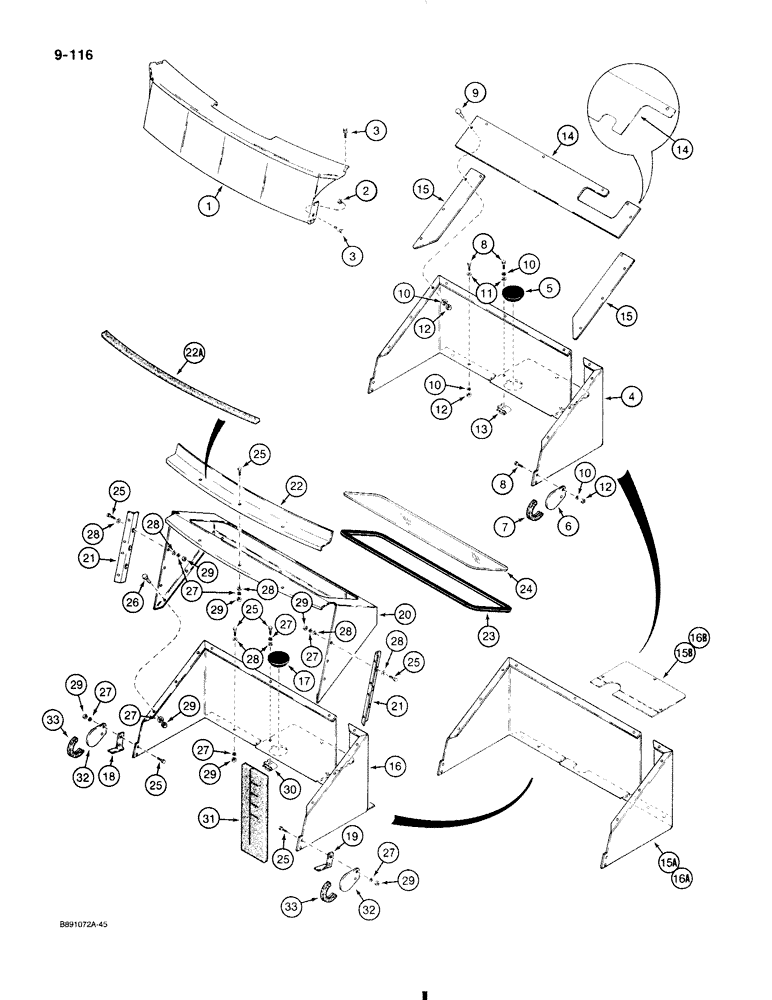

Запчасти Case 580K (9-116) - REAR CLOSURE PANELS, CANOPY MODELS - WITH BACKHOE OR REAR COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D135244

PANEL

rear closure, canopy models with backhoe or canopy models without backhoe but with rear counterweight, see Figure 9-184 for decal

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self locking, 5/16" - 18 NC x 3/4"

7шт.

4

D141305

PANEL

rear closure, one piece, canopy models without backhoe with three point hitch, no longer available, order D147480 panel and D147442 cover, Ref. 15A and 15B

1шт.

5

D143595

PLUG

canopy models, with three point hitch, 3" diameter, if used

1шт.

6

D141390

GUARD

PLATE corner guard, canopy models, with three point hitch

2шт.

7

D33500

LINING

TRIM edge, canopy models, with three point hitch, 7" long, cut from bulk trim, see Parts Substitution List for bulk trim options

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, canopy models, with three point hitch, 5/16" NC x 1"

11шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, canopy models, with three point hitch, 5/16" NC x 3/4"

10шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Canopy models, with three point hitch 5/16"

21шт.

11

495-11034

WASHER,5/16", SAE

flat, Canopy models, with three point hitch, 5/16" 5/16", SAE

7шт.

12

425-105

NUT,5/16"-18, G5

hex, canopy models, with three point hitch, 5/16" NC

18шт.

13

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, canopy models, with three point hitch, 5/16" NC, Replaces: J-type nut used on some models

3шт.

14

D141574

COVER

panel, at right hand corner, canopy models, with three point hitch, cover may have a cutout or cut away

1шт.

15

D141573

COVER

PLATE panel, canopy models, with three point hitch

2шт.

15a

D147480

PANEL

rear closure, canopy models without backhoe with three point hitch, used with Ref. 15B cover

1шт.

15b

D147442

COVER

lower, canopy models, with three point hitch, used with D147480 panel, Ref. 15A

1шт.

16

D141305

PANEL

rear closure, one piece, lower, cab models without backhoe with three point hitch, no longer available, order D147480 panel and D147442 cover, Ref.16A and 16B

1шт.

16a

D147480

PANEL

rear closure, ab models without backhoe with three point hitch, used with Ref.16B cover

1шт.

16b

D147442

COVER

lower, cab models, with three point hitch, used with D147480 panel, Ref. 16A

1шт.

17

D143595

PLUG

cab models, with three point hitch, 3" diameter, if used

1шт.

18

D136688

BRACKET

window track stop, left hand, cab models, with three point hitch

1шт.

19

D136689

BRACKET

window track stop, right hand, cab models, with three point hitch

1шт.

20

D141945

PANEL

rear closure, upper, cab models, with three point hitch

1шт.

21

D136690

BRACKET

angle, window, closure support, may have holes or slots, cab models, with three point hitch

2шт.

22

D136651

BRACKET

threshold, window, rear

1шт.

22a

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL adhesive back, 20 mm x 10 mm x 912 mm

1шт.

23

D90207

SEAL 79", 2006 mm long, cut from A42677 bulk seal, molding, window, see below

1шт.

24

D90206

GLASS

closure panel

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16" NC x 1"

20шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16" NC x 3/4"

10шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

28

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

22шт.

29

425-105

NUT,5/16"-18, G5

hex, 5/16" NC

27шт.

30

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" NC, Replaces: J-type nut used on some models

3шт.

31

D141585

SEAL

panel

1шт.

32

D141390

GUARD

PLATE corner guard

2шт.

33

D33500

LINING

TRIM edge, 7" long, cut from bulk trim, see Parts Substitution List for bulk trim options

2шт.

A42677

MOLDING

SEAL 50 feet, 15.24 cm long, bulk roll

1шт.
