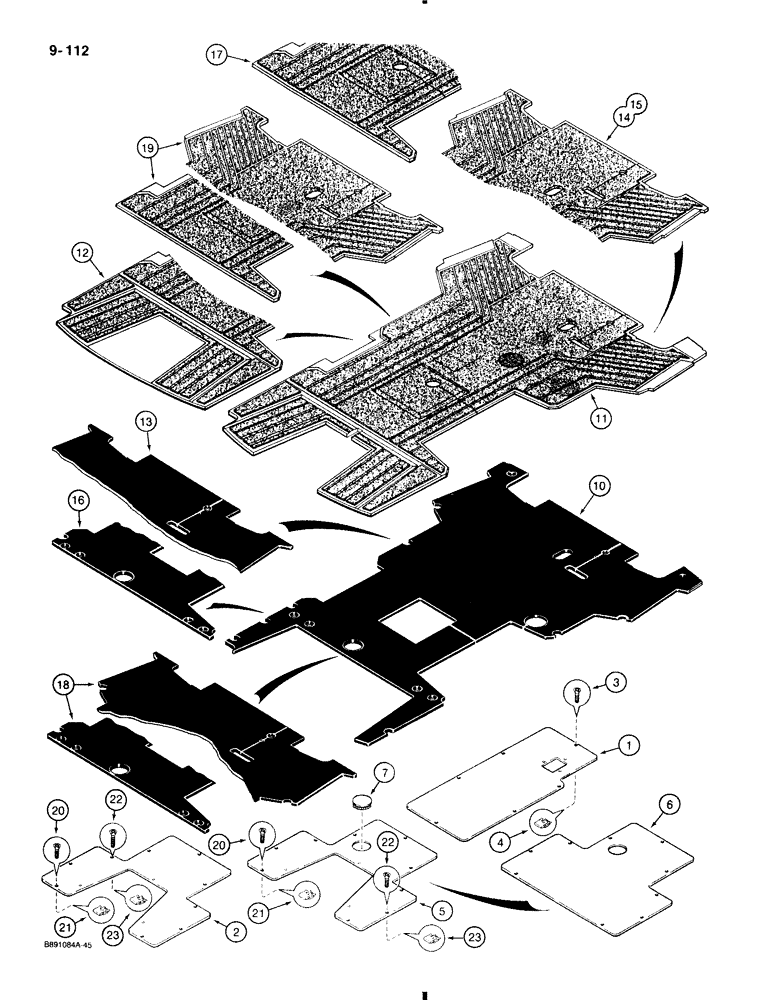

Запчасти Case 580K (9-112) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

D146215

COVER

PLATE floor, front cover, with or without backhoe

1шт.

2

D140087

PLATE floor, rear cover, without plug hole, canopy models with demountable backhoe, for service order D133813 plate and D143595 plug, Ref. 5 and 7

1шт.

3

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT hex socket flat, front floor plate, 5/16" NC x 1", Replaces 3/4" bolt

6шт.

4

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" - 18 NC, Replaces J-type nut

6шт.

5

D133813

PLATE

floor, rear cover, with plug hole, cab or canopy models with backhoe, may replace plate without plug hole on some models, if used with D143595 plug, Ref. 7

1шт.

6

D135978

COVER

PLATE floor, rear cover, cab or canopy models without backhoe, with rear counterweight

1шт.

7

D143595

PLUG

button, steel, rear floor plate, 3", if used

1шт.

10

D144102

PAD

floormat, service replacement

1шт.

11

D144096

FLOORMAT used with D144102 pad, cab models with backhoe, for service order D144097 floormat

1шт.

12

D144097

FLOOR MAT

FLOORMAT service replacement

1шт.

13

D144103

PAD floormat, used on canopy models with or without backhoe, for service order D144102 pad

1шт.

14

D144098

SPARE PART

FLOORMAT used with D144103 pad, canopy models with backhoe, for service order D144097 floormat

1шт.

15

D144099

FLOORMAT used with D144103 pad, canopy models without backhoe, for service order D144097 floormat

1шт.

16

D144104

PAD D144100 floormat, used on cab models with three point hitch, for service order D144102 pad

1шт.

17

D144100

FLOORMAT used with D144104 pad, cab models with three point hitch, for service order D144097 floormat

1шт.

18

D144105

PAD D144101 floormat, used on canopy models with three point hitch, for service order D144102 pad

1шт.

19

D144101

FLOORMAT used with D144105 pad, canopy models with three point hitch, for service order D144097 floormat

1шт.

20

461-43112

HEX SOC SCREW,Flat Hd, 5/16"-18 x 3/4"

BOLT hex socket flat head, 5/16" NC x 3/4"

2шт.

21

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16" NC

2шт.

22

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT hex socket flat head, 5/16" NC x 1"

7шт.

23

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" NC, Replaces: J-type nut

7шт.
