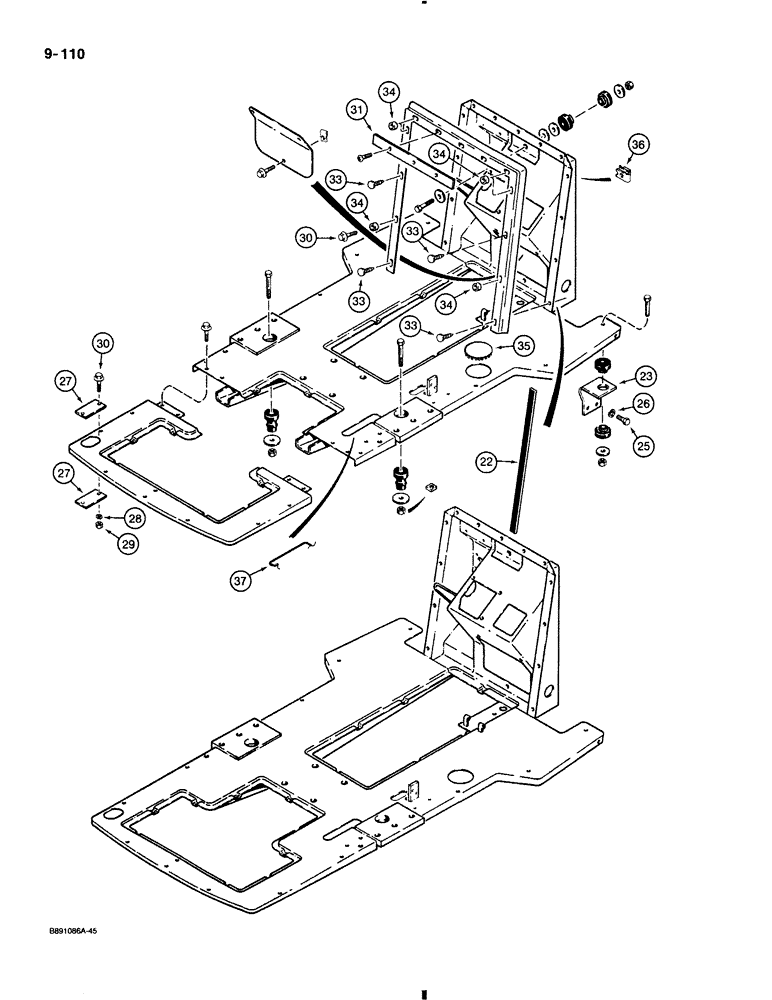

Запчасти Case 580K (9-110) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

22

D90936

BAND

SEAL adhesive one side, firewall, 112", 2845 mm long, cut from L35819 bulk seal, used on models with cab

1шт.

D90936 is a 112" strip of seal, Replaced by D150055 which is a 300" long x 1/2" wide strip, use bulk roll L35819X, 50' long x 1" wide ) and cut to length/width, sold by ft.

1шт.

23

D140554

SUPPORT

BRACKET frame mount, right hand front

1шт.

24

D140555

SUPPORT

BRACKET frame mount, left hand front, not shown

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 1-1/4"

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

D140261

PLATE ASSY.

PLATE boom latch hole, used on models without backhoe, with rear counterweight

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

425-105

NUT,5/16"-18, G5

hex, 5/16" NC

2шт.

30

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self locking, 5/16" - 18 NC x 3/4"

5-9шт.

31

D143659

PLATE

steel

1шт.

32

182-501

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

machine, pan Phillips head, 5/16" - 18 NC x 3/4"

3шт.

33

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push in, plastic

4шт.

34

D35217

BUSHING

SPACER seal to front instrument panel

6шт.

35

D143595

PLUG

button, steel, 3"

1шт.

36

131-874

NUT,Ret, J, 5/16"-18

J-type, 5/16" NC, if used

13шт.

37

D35424

LINING

SEAL trim, edge, 16", cut to required length from bulk seal F42827, see below

1шт.

L35819

RUBBER SEAL

SEAL foam rubber, bulk roll, adhesive back, 1", 25 mm wide x 1/8", 3 mm thick x 50 ft, 15.2 m long

1шт.

F42827

TRIM,2946.4mm L

SEAL trim, edge, 116"

1шт.
