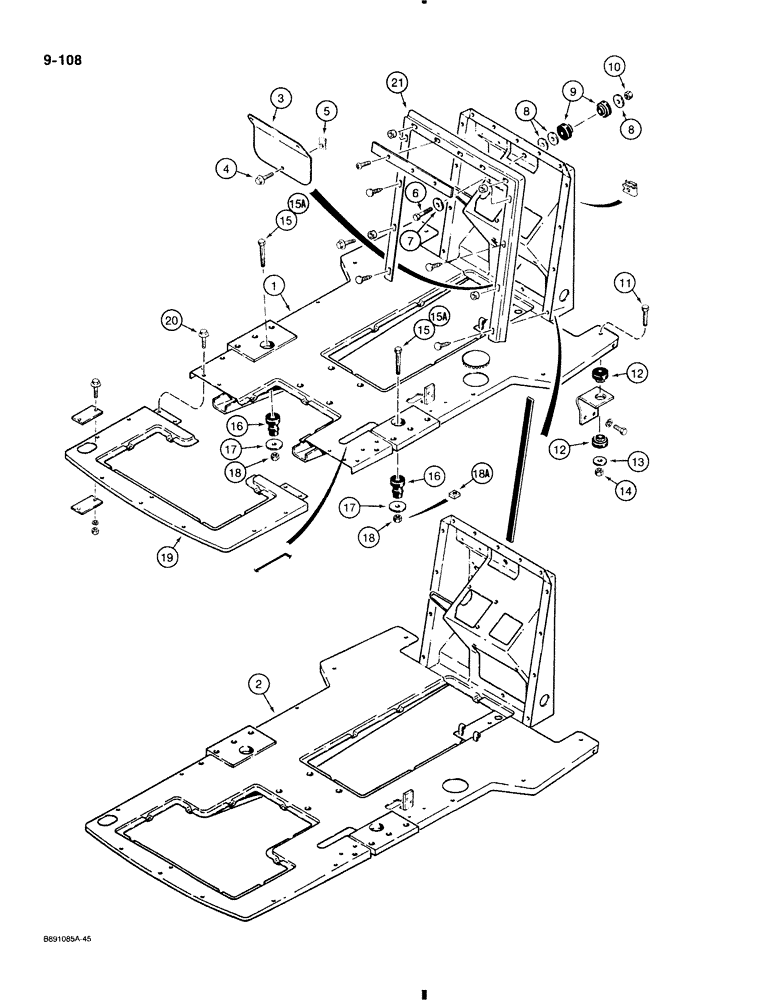

Запчасти Case 580K (9-108) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D141915

ROD ASSY.

FRAME operators compartment, with hole on right hand side of firewall wrapper, loader models only or used with D141960, Ref. 19, rear frame for bolt on demountable backhoe models

1шт.

2

D139166

PLATFORM

FRAME operators compartment, with hole on right hand side of firewall wrapper, loader integral backhoe models

1шт.

3

D139180

COVER

PLATE access, in firewall

1шт.

4

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self locking, 5/16" - 18 NC x 3/4"

3шт.

5

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16" - 18 NC, Replaces: J-type nut

3шт.

6

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

hex head, 5/8" - 11 NC x 3-3/4"

1шт.

7

D90873

WASHER

flat, special

1шт.

8

D89007

WASHER

flat, hardened, special, 5/8"

3шт.

9

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

2шт.

10

429-1010

NUT,5/8"-11, G8

1шт.

11

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex head, plated, 5/8" - 11 NC x 4"

2шт.

12

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

4шт.

13

D89007

WASHER

flat, hardened, special, 5/8"

2шт.

14

429-1010

NUT,5/8"-11, G8

2шт.

15

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8, if used

2шт.

15a

D147377

BOLT

hex, special thread length, 5/8" NC x 5", if used

2шт.

16

A141451

SHOCK ABSORBER

INSULATOR frame mount, rear, rubber

2шт.

17

D89007

WASHER

flat, hardened, special, 5/8", not used on right hand side when D147441 block, Ref. 18A is used

2шт.

18

429-1010

NUT,5/8"-11, G8

If used, may be replaced by tapped block, Ref. 18A 5/8"-11, G8

2шт.

18a

D147441

BLOCK

tapped, 2-5/8" square, if used

1-2шт.

18a

D148525

BLOCK

tapped, 2-3/4" square, if used

1шт.

19

D141960

PLATFORM ASSY.

FRAME rear, used with D141915 frame, Ref. 1, cab or canopy models with bolt on demountable backhoe or cab or canopy loader only models with rear counterweight.

1шт.

20

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer, self locking, 5/16" NC x 3/4", if used

4шт.

21

D132290

SEAL

firewall, used on models without cab

1шт.
