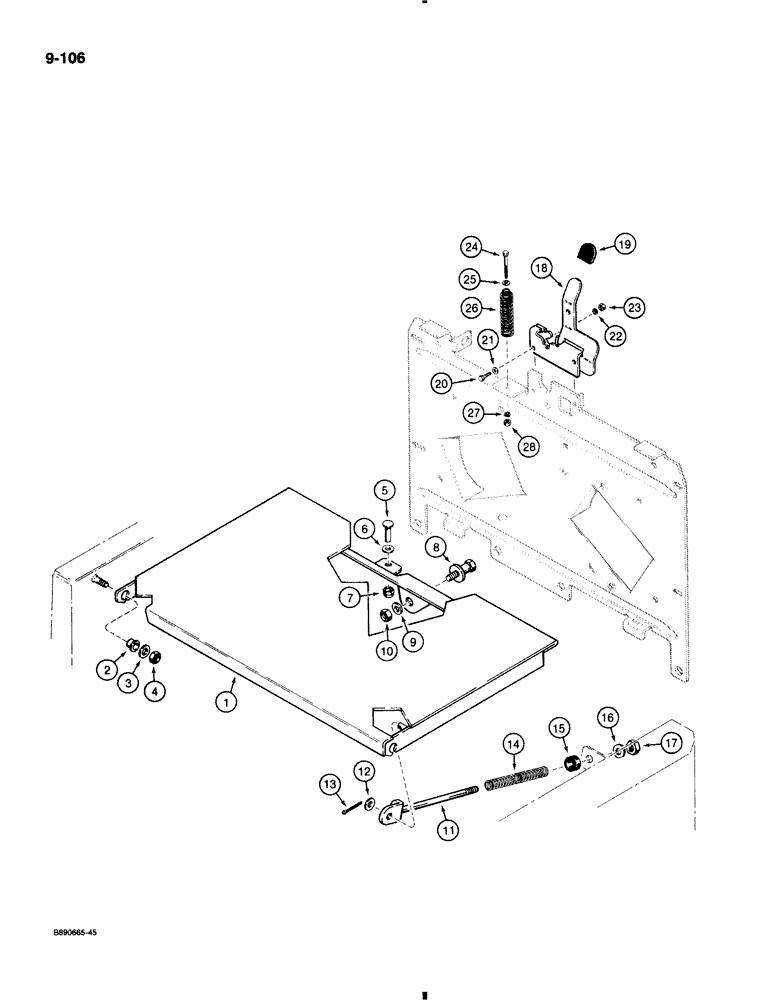

Запчасти Case 580K (9-106) - UPRIGHT COVER AND HOOD LATCH RELEASE (09) - CHASSIS/ATTACHMENTS

1

D144452

COWL

COVER chassis upright

1шт.

2

D134837

BEARING,10 mm ID x 26 mm OD x 8 mm

cover pivot

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

2шт.

4

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

5

141-52

CLEVIS PIN,1/4" x .770"

plated, special length, 1/4"

1шт.

6

495-11028

WASHER,1/4", SAE

1шт.

7

131-867

PUSH-ON NUT,1/4"-20, Push-on

push-on type with cap, 1/4"

1шт.

8

D136115

LATCH

STRIKER upright cover

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, special, 3/8"

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, plated, 3/8"-16 NC

1шт.

11

D134872

ROD

upright cover support

1шт.

12

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

13

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

14

D125336

COIL SPRING

SPRING return, upright cover

1шт.

15

D125335

BUMPER

spring stop

1шт.

16

495-11028

WASHER,1/4", SAE

1шт.

17

86625061

NUT,1/4"-20, GB

NUT hex, self locking, 1/4" - 20 NC

1шт.

18

D144414

LATCH

hood release

1шт.

19

D144519

CAP

latch lever

1шт.

21

495-21031

WASHER,1/4"

flat, plated, 1/4"

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

425-104

NUT,1/4"-20, Cl 5

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex head, plated, 1/4" - 20 NC x 3/4"

1шт.

25

495-11028

WASHER,1/4", SAE

1шт.

26

D136113

SPRING

hood pop-up

1шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

425-104

NUT,1/4"-20, Cl 5

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
