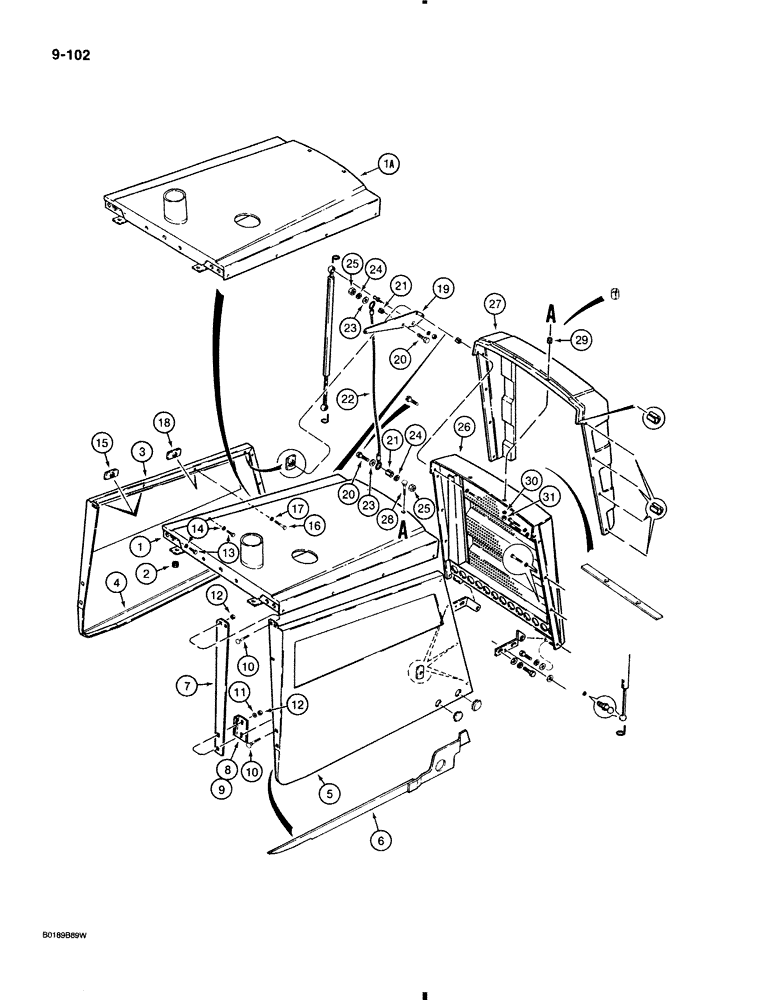

Запчасти Case 580K (9-102) - HOOD, ENGINE SIDE PANELS, AND GRILLE UNIT (09) - CHASSIS/ATTACHMENTS

1

D144397

COWL

HOOD used on models without turbocharged engine

1шт.

1a

D144409

COWL

HOOD used on models with turbocharged engine

1шт.

2

D145721

BUMPER

hood to air cleaner mounting bracket

2шт.

3

D143245

COWL

PANEL engine, left hand side, Includes Ref. 4

1шт.

4

D143260

SUPPORT

PLATE support, side panel stiffener

1шт.

5

D143244

PANEL, SIDE

PANEL engine, right hand side, Includes Ref. 6

1шт.

6

D143259

SUPPORT

PLATE support, side panel stiffener

1шт.

7

D134654

PLATE

engine side panels, rear guide

2шт.

8

D143714

SUPPORT

BRACKET rear guide, right hand side panel

1шт.

9

D143715

SUPPORT

BRACKET rear guide, left hand side panel

1шт.

10

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, at rear guide brackets, 3/8"

4шт.

12

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

8шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

hex head, plated, 1/4" - 20 NC x 1/2"

4шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

129-468

NUT

weld, special, 1/4" - 20 NC

4шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex head, plated, 1/4" - 20 NC x 3/4"

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

129-468

NUT

weld, special, 1/4" - 20 NC

2шт.

19

D143903

SUPPORT

BRACKET cylinder retaining, hood

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4", lower cable mounting bolts may be replaced with self tapping screws, Ref. 55 on Figure 9-104

2-4шт.

21

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

cable

4шт.

22

D133403

CABLE

steel, hood retaining

2шт.

23

495-21044

WASHER,3/8"

4шт.

24

492-11038

LOCK WASHER,3/8"

not required on lower cable mounting when self tapping screw is used 3/8"

2-4шт.

25

425-106

NUT,3/8"-16, Cl 5

Not required on lower cable mounting when self tapping screw is used 3/8"-16, G5

2-4шт.

26

D143506

GRILLE ASSY

GRILLE tilt

1шт.

27

D143461

GRILLE

GUARD grille, rubber

1шт.

28

111-272

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G5, Full Th

BOLT, CARRIAGE, Short NK, 5/16"- 18 x 1 1/4", Full Thd

2шт.

29

D76208

SPACER

13/32", 10 mm x 5/8", 16 mm x 31/64", 12 mm, if used

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

2шт.
