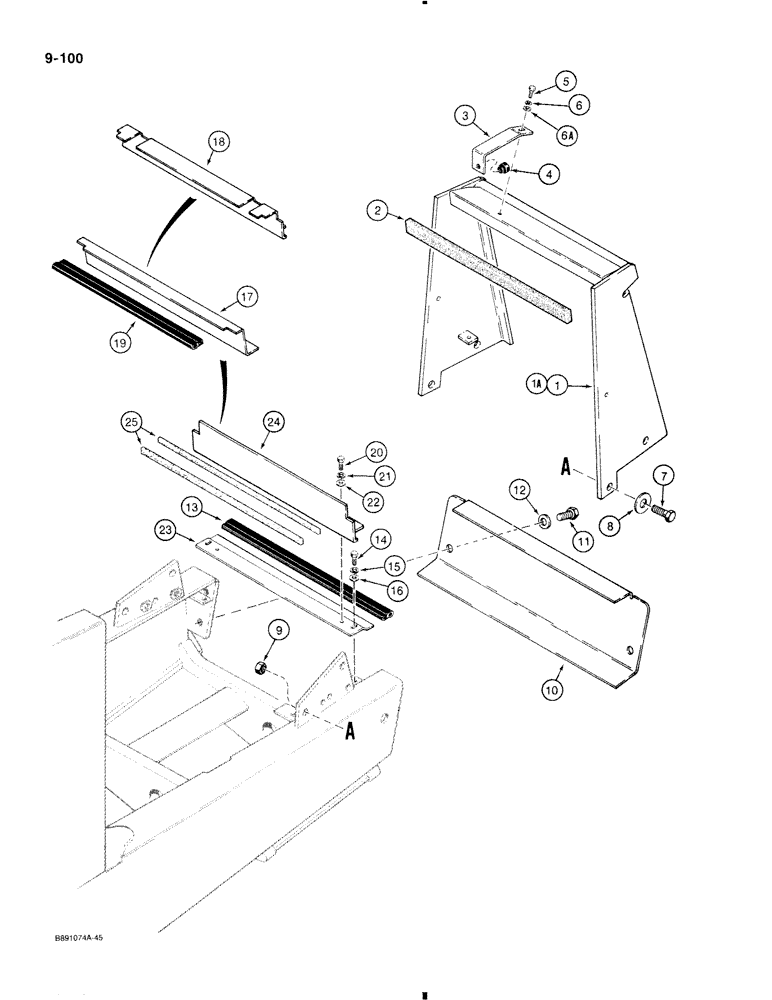

Запчасти Case 580K (9-100) - RADIATOR SHROUD, PUMP GUARD, AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

D140299

HOUSING

SHROUD radiator, uses hex head bolt, Ref. 20 on Figure 9-103, Replaces: D136734 shroud, no longer available, order D148409 shroud, Ref. 1A and two 187-573 screws, Ref. 55 on Figure 9-104

1шт.

1a

D148409

SUPPORT

SHROUD radiator, uses self tapping screw, for screw see Ref. 55 on Figure 9-104

1шт.

2

D135947

SEAL

foam, adhesive back on one side, attaches to upper rear cross tube of shroud

1шт.

3

D132477

BRACKET

radiator retaining

1шт.

4

L60224

BUMPER

rubber

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6a

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

7

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

8

195-545

WASHER,3/4", SAE

flat, plated, 3/4"

4шт.

9

129-108

NUT,3/4"-10, G5

4шт.

10

D141011

PROTECTOR

GUARD pump, not used on models with front counterweight

1шт.

11

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

hex head, 3/4" - 10 NC x 1-1/4"

2шт.

12

495-11081

WASHER,3/4", SAE

2шт.

13

D135944

SEAL

576 mm long, cut from F43117 bulk seal, see below, lower baffle plate, used only on models with front counterweight

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

17

D145479

BAFFLE

PLATE baffle, upper, not used on models with air conditioning

1шт.

18

D138355

PLATE

baffle, upper, used only on models with air conditioning, if used

1шт.

19

D128489

LINING

SEAL 19-17/32", 496 mm long, cut from F43117 bulk seal, see below, upper baffle plate

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, plated, 5/16" - 18 NC x 3/4"

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

2шт.

23

D141013

PLATE

baffle, lower, used on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

24

D140971

SHEET

PLATE baffle, lower, used with Ref. 25 seal and Ref. 23 plate on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments, if used

1шт.

25

D140871

BAND

SEAL adhesive back on one side, 22-1/16", 560 mm long, used with Ref. 24 plate, 2 used on models with air conditioning, if used

1-2шт.

F43117

SEAL

bulk, 100 ft, 3048 cm long

1шт.
