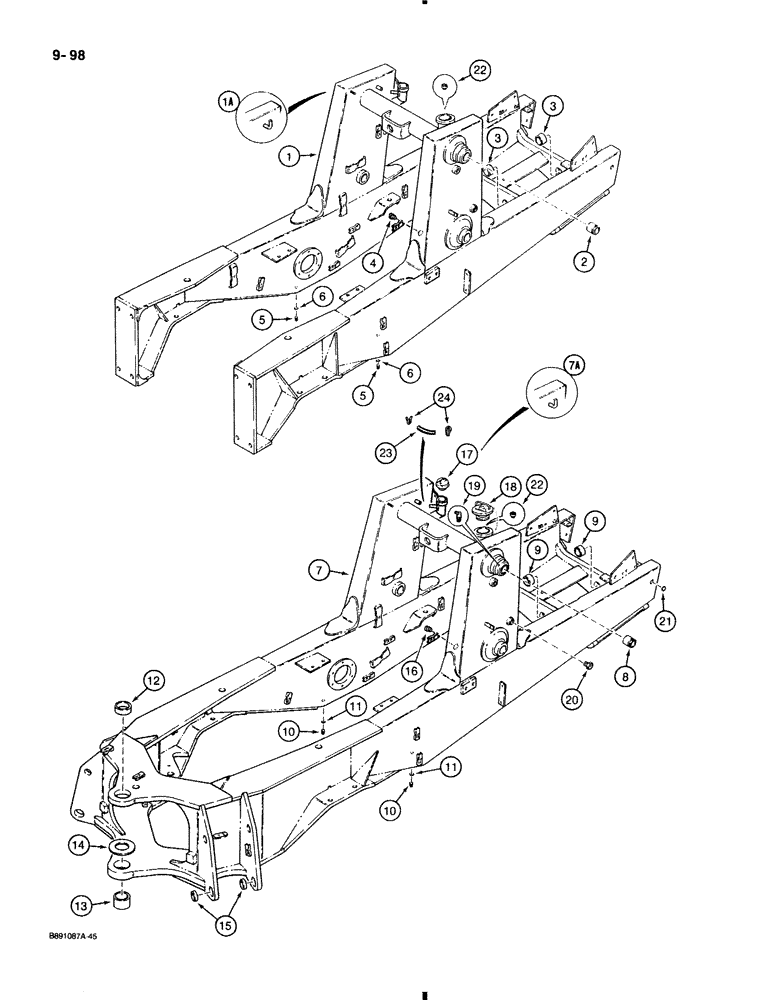

Запчасти Case 580K (9-098) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D140810

CHASSIS

loader or demountable backhoe models only, may or may not require Ref. 23 and 24 vent hose and clamps, no longer used, order D147167 chassis, Ref. 1A, Includes Ref. 1A, 7, 7A, 17-24

1шт.

1a

D147167

CHASSIS

loader or demountable backhoe models, Includes Ref. 2-5

1шт.

2

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

4

444789

PLUG,Sq Soc, 1/2"-14 NPTF

pipe, 1/2" NPT

1шт.

5

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex head, with O-ring, 1-1/4" NPT, Includes Ref. 6

2шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

7

D140809

FRAME

CHASSIS loader with integral backhoe models only, may or may not require Ref. 23 and 24 vent hose and clamps, no longer used, order D147168 chassis, Ref. 7A

1шт.

7a

D147168

CHASSIS

loader with integral backhoe models, Includes Ref. 8-10, 12-16

1шт.

8

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

9

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

10

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex head, with O-ring, 1-1/4" NPT, Includes Ref. 11

2шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

12

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting

1шт.

13

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting

1шт.

14

D136472

SPACER

bearing, welds to frame, 83 mm x 135 mm x 6 mm

1шт.

15

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

lower, side, backhoe frame, at stabilizer leg mounting

4шт.

16

444789

PLUG,Sq Soc, 1/2"-14 NPTF

pipe, 1/2" NPT

1шт.

17

A51390

CAP

diesel fuel reservoir, left hand

1шт.

18

D93981

FILLER CAP

CAP hydraulic oil reservoir, right hand

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, special short, 1/8" NPT, loader frame pivot

2шт.

20

D63875

PLUG

GAUGE sight, oil level

1шт.

21

41-1020

PLUG,Cup, 1 1/4"

expansion, cup, 1-1/4"

2шт.

22

N8796

PLUG

BREATHER vent, hydraulic oil reservoir

1шт.

23

D140609

HOSE

vent, 5/8" ID x 15/16" OD x 4-9/16" long, if used

1шт.

24

D140872

COLLAR CLAMP

CLAMP wire form, vent hose, if used

2шт.
