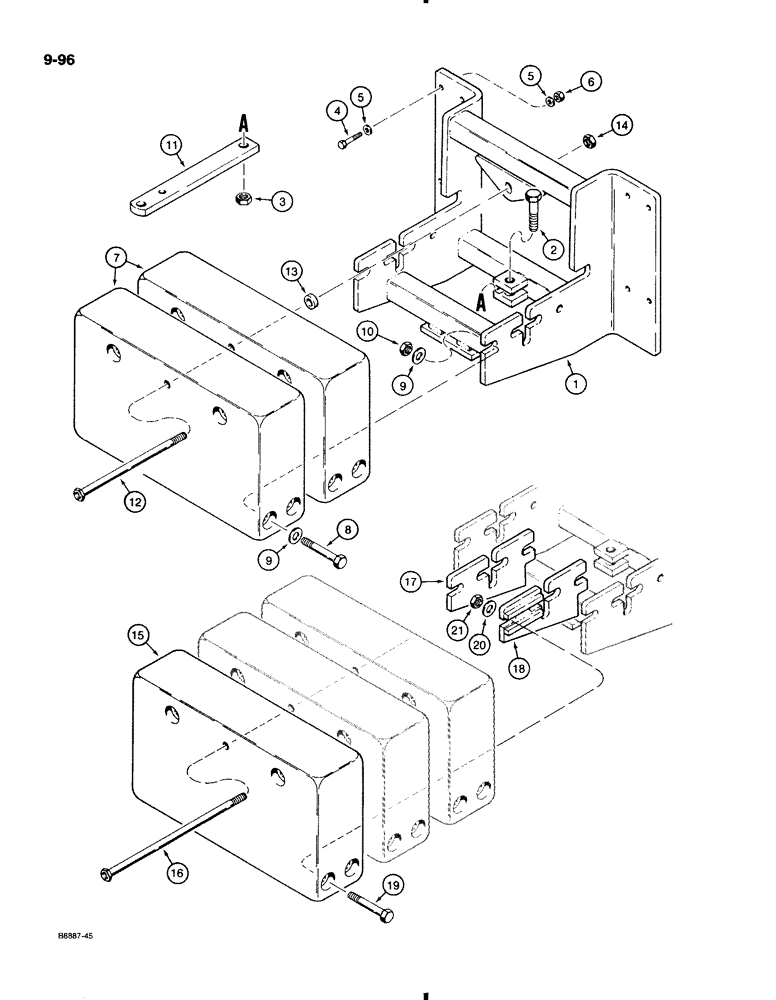

Запчасти Case 580K (9-096) - REAR COUNTERWEIGHT AND DRAWBAR, SPECIAL PARTS USED TO MOUNT ADDITIONAL 1400 POUND REAR COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D136658

FRAME

rear counterweight

1шт.

2

26-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 8

hex head, 1-1/8" - 7 NC x 5", grade 8

1шт.

3

131-200

LOCK NUT,1 1/8"-7, GC

NUT hex, self locking, 1-1/8" - 7 NC

1шт.

4

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, 3/4"

16шт.

6

129-138

NUT,3/4"-10, G8

8шт.

7

D31204

BALANCER

COUNTERWEIGHT rear, each 1425 lbs, 646 kg

2шт.

8

13-16108

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

hex head, plated, 1" - 8 NC x 6-3/4"

8шт.

9

195-553

WASHER,1", SAE

flat, plated, 1"

16шт.

10

129-110

NUT,1"-8, G5

8шт.

11

D93293

DRAWBAR, SWINGING

DRAWBAR tractor

1шт.

12

D139275

BOLT

special

1шт.

13

H62406

SPACER

counterweight

1шт.

14

131-199

LOCK NUT,1"-8, GC

NUT hex, self locking, 1" - 8 NC

1шт.

15

D31204

BALANCER

COUNTERWEIGHT rear, 1425 lbs, 646 kg, used with 2800 lbs rear counterweight, if used

1шт.

16

D140548

BOLT

BOLT special

1шт.

17

D93344

PLATE

BRACKET left hand, additional counterweight adapter

1шт.

18

D93345

PLATE

BRACKET right hand, additional counterweight adapter

1шт.

19

113-974

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

4шт.

20

195-553

WASHER,1", SAE

flat, plated, 1"

4шт.

21

129-110

NUT,1"-8, G5

4шт.
