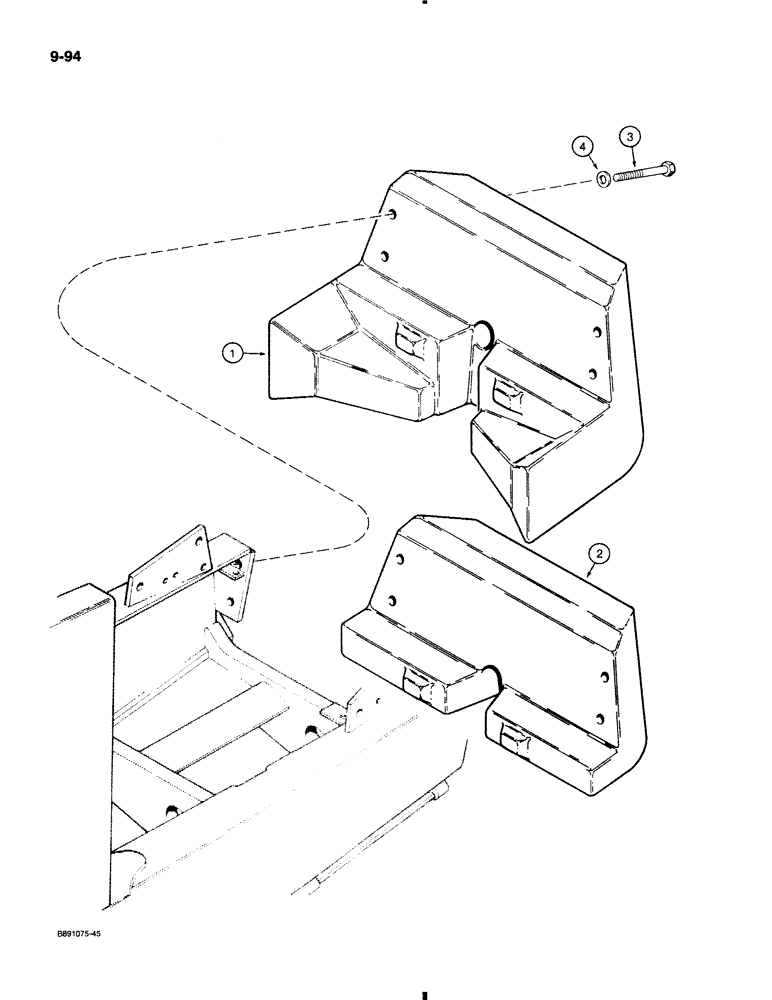

Запчасти Case 580K (9-094) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D141716

BALANCER

COUNTERWEIGHT front, 900 lbs, 408 kg, not used if front pump guard is used, see Figure 9-100 for pump guard and pump guard mounting hardware

1шт.

2

D141717

BALANCER

COUNTERWEIGHT front, 400 lbs, 181 kg, if used

1шт.

3

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Used with front counterweight only Hex, 3/4"-10 x 4 1/2", G5

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, 3/4", used with front counterweight only

4шт.
