(9-092) - RIGID DRAWBAR, USED WITH THREE-POINT HITCH

Запчасти Case 580K (9-092) - RIGID DRAWBAR, USED WITH THREE-POINT HITCH (09) - CHASSIS/ATTACHMENTS

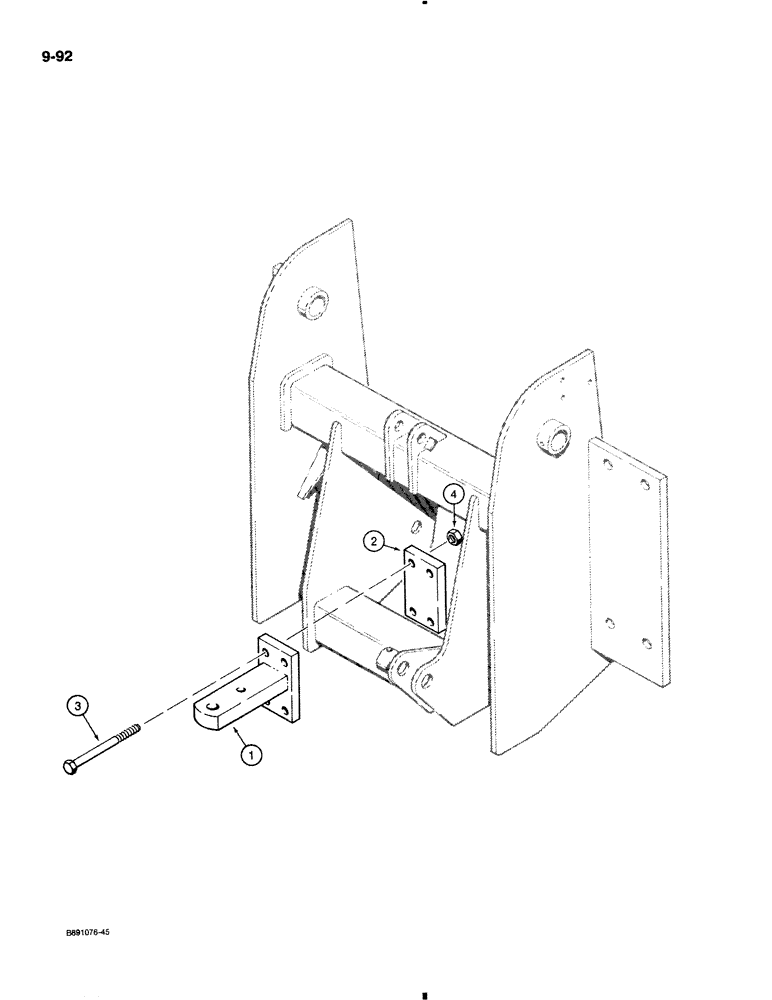

Схема запчастей Case 580K - (9-092) - RIGID DRAWBAR, USED WITH THREE-POINT HITCH (09) - CHASSIS/ATTACHMENTS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D146243

PLATE ASSY.

DRAWBAR rigid, tractor

1шт.

2

D73231

LARGE PLATE

PLATE mounting

1шт.

3

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

hex head, plated, 5/8"-11 NC x 6-1/2"

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

Выбрано товаров: 4
