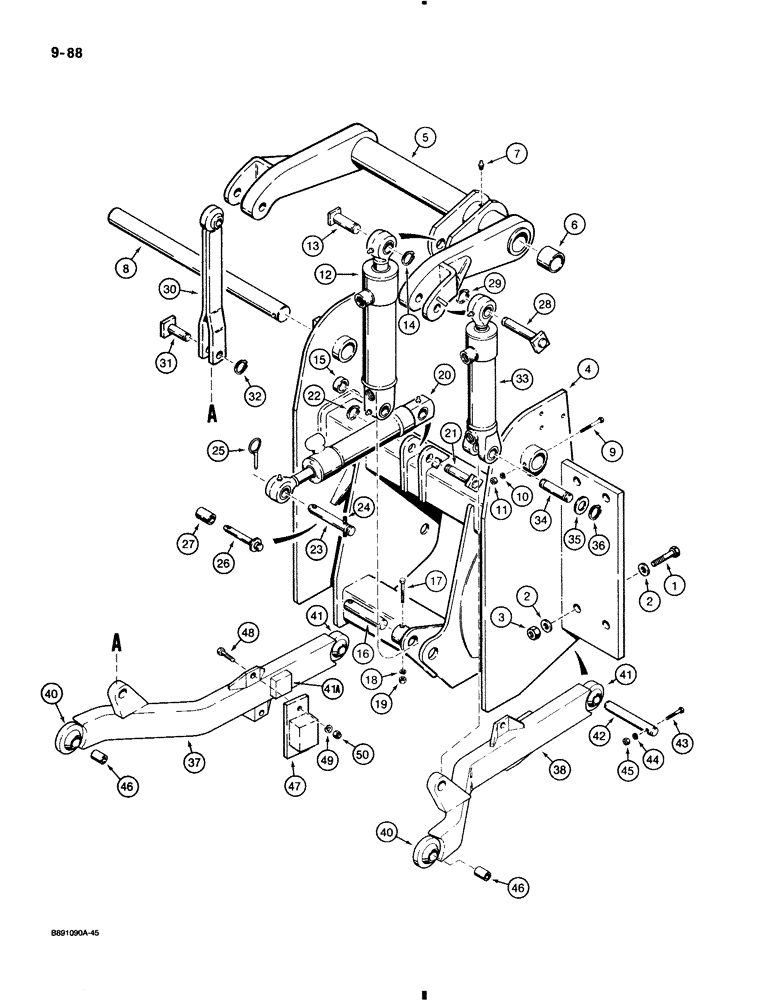

Запчасти Case 580K (9-088) - THREE-POINT HITCH FRAME, DRAFT ARMS, LINKAGE, AND CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

8шт.

2

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, 3/4"

16шт.

3

129-138

NUT,3/4"-10, G8

8шт.

4

D149215

FRAME

three point hitch

1шт.

5

D146067

SHAFT

TUBE rockshaft, Includes Ref. 6

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

tube

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

8

D146070

SHAFT

ROCKSHAFT three point hitch

1шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY, lift, parts list Figure 8-160

1шт.

13

D51302

PIN

mounting, lift cylinder, upper, Includes Ref. 14

1шт.

14

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

1шт.

15

D51692

SPACER

lift cylinder mounting pin, lower

1шт.

16

D51695

PIN

mounting, lift cylinder, lower

1шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, plated, 3/8"-16 NC x 2-1/2"

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

1976884C1

JACK BODY

CYLINDER ASSEMBLY, pitch, parts list Figure 8-164

1шт.

138235A1R

REMAN-HYD CYLINDER

580K ASN JJG0020000, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

21

D141090

PIN

mounting, pitch cylinder at mounting frame

1шт.

22

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

1шт.

23

D140990

PIN

pitch cylinder to equipment, 1" diameter, for use with Category II hitch, if used, Includes Ref. 24

1шт.

24

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

25

D33805

PIN

lock

1шт.

26

D141292

PIN

pitch cylinder to equipment, 3/4" diameter, for use with Category I hitch, if used

1шт.

27

D141156

TUBE

BUSHING pivot, pitch cylinder rod eye, used with D141292 pin to adapt for use with Category I hitch, if used

1шт.

28

D51299

PIN

mounting, tilt cylinder and strut, upper

2шт.

29

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.

30

D51276

STAND

STRUT stationary

1шт.

31

D51297

PIN

mounting, strut, lower

1шт.

32

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

1шт.

33

G101188

JACK BODY

CYLINDER ASSEMBLY, tilt, parts list Figure 8-162

1шт.

34

D30609

PIN,25.4mm OD x 95.25mm L

mounting, tilt cylinder, lower

1шт.

35

495-11106

WASHER,1", SAE

flat, plated, cylinder alignment, 1"

2шт.

36

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.

37

D149514

ARM

draft, left hand

1шт.

38

D149513

ARM

draft, right hand, Includes Ref. 40-41A

1шт.

40

H363424

BALL JOINT

BUSHING - self-aligning, 1-1/8" pin size

1шт.

41

D149451

BALL JOINT

BUSHING, self aligning, 1" pin size

1шт.

41a

D146073

STOP

BLOCK wear

1шт.

42

D146078

PIN

mounting, draft arm to mounting frame

2шт.

43

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, plated, 3/8"-16 NC x 2-1/2"

2шт.

44

492-11038

LOCK WASHER,3/8"

2шт.

45

425-106

NUT,3/8"-16, Cl 5

2шт.

46

D140991

BUSHING,22.48mm ID x 28.57mm OD x 44.45mm L

draft arm to equipment, for use with Category I hitch, if used

2шт.

47

D149156

BLOCK

RETAINER sway, draft arm

2шт.

48

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

49

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

50

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
