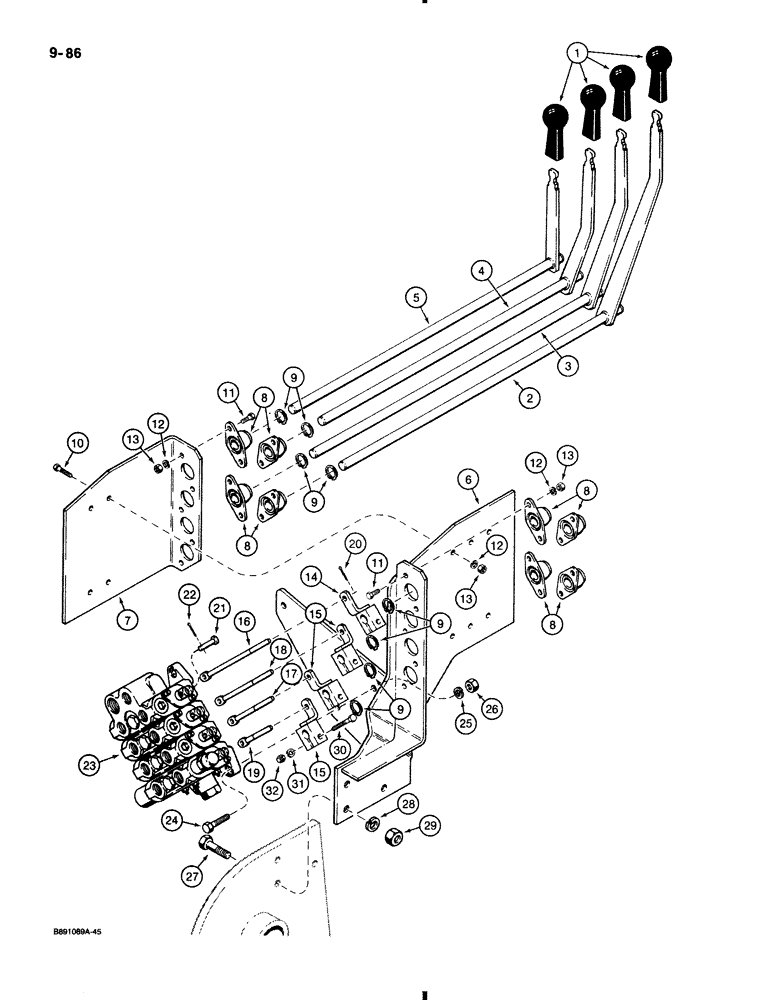

Запчасти Case 580K (9-086) - THREE-POINT HITCH CONTROLS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D135387
GRIP
KNOB control lever
4шт.
2
D149234
HANDLE
LEVER lift control
1шт.
3
D149233
HANDLE
LEVER tilt control
1шт.
4
D149232
HANDLE
LEVER pitch control
1шт.
5
D149231
HANDLE
LEVER implement control
1шт.
6
D149228
BRACKET
valve and control lever mounting
1шт.
7
D149229
BRACKET
front adjustment
1шт.
8
L15401
BEARING,15.89mm ID
pivot
8шт.
9
N9959
SNAP RING,#62, Ext
Ring, Snap, , brg #62, Ext
8шт.
10
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
hex, 5/16" NC x 1"
4шт.
11
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16" NC x 3/4"
10шт.
12
495-21044
WASHER,3/8"
lock, plated, 5/16"
14шт.
13
425-105
NUT,5/16"-18, G5
hex, plated, 5/16" - 18 NC
14шт.
14
D143923
SPECIAL CLAMP
RETAINER long pivot
1шт.
15
D143922
SPECIAL CLAMP
RETAINER short pivot
3шт.
16
D136359
LINK
ROD lift control, Serial Range: shaft-valve
1шт.
17
D136358
LINK
ROD tilt control, Serial Range: shaft-valve
1шт.
18
D136357
LINK
ROD pitch control, Serial Range: shaft-valve
1шт.
19
D136356
LINK
ROD implement control, Serial Range: shaft-valve
1шт.
20
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
4шт.
21
141-52
CLEVIS PIN,1/4" x .770"
PIN clevis, 1/4"
4шт.
22
132-329
COTTER PIN,1/16" x 3/4"
1/16" x 3/4"
4шт.
23
D141297
VALVE
ASSEMBLY, three point hitch control, four spool, parts list Figure 8-124
1шт.
24
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8"-16 NC x 1-1/2", valve mounting
3шт.
25
492-11038
LOCK WASHER,3/8"
3шт.
26
425-106
NUT,3/8"-16, Cl 5
3шт.
27
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
Valve mounting bracket to three point hitch frame Hex, 1/2"-13 x 1 1/2", G5, Full Thd
3шт.
28
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
3шт.
29
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
3шт.
30
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
4шт.
31
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
4шт.
32
425-105
NUT,5/16"-18, G5
hex, 5/16" NC
4шт.
Выбрано товаров: 32
