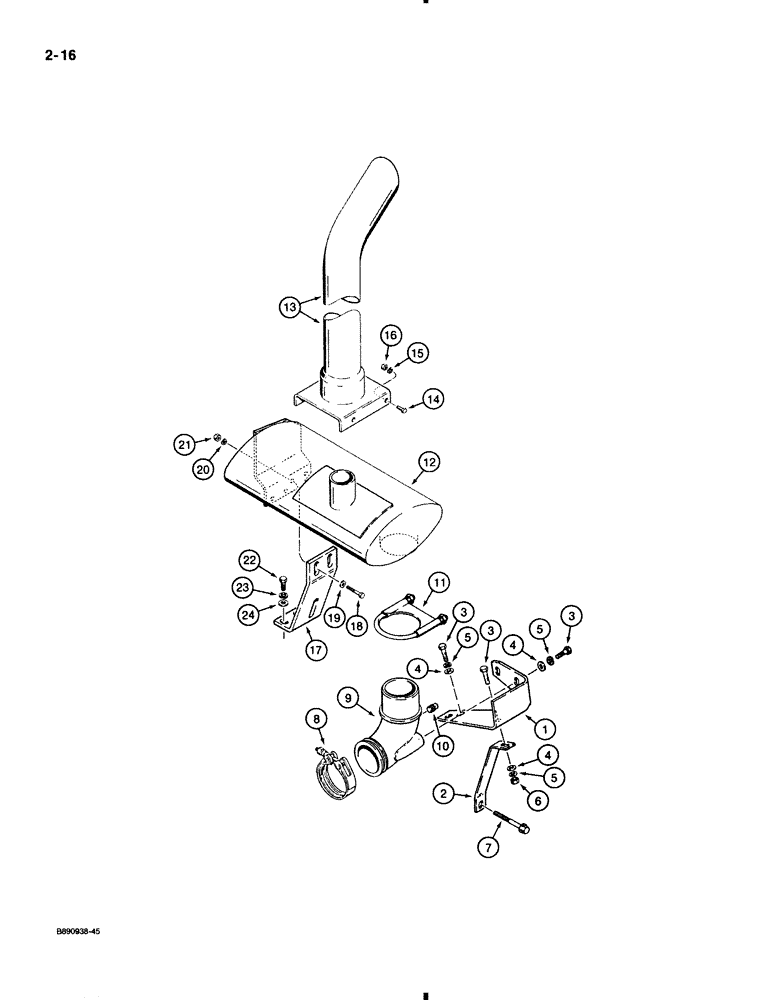

Запчасти Case 580K (2-016) - MUFFLER AND EXHAUST SYSTEM, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

1

L114429

SUPPORT

BRACKET support, exhaust

1шт.

2

L115129

SUPPORT

BRACE support, exhaust

1шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

5

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

5шт.

6

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

1шт.

7

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

hex flange head, 10 mm - 1.5 x 80 mm, Replaces: existing manifold bolt

1шт.

8

A170467

CLAMP,72mm ID

T-bolt type, at engine, Includes hardware

1шт.

9

A173795

ELBOW

engine exhaust

1шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

square head, 1/4" NPT

1шт.

11

L73711

CLAMP

at muffler, Includes hardware

1шт.

12

A184890

MUFFLER

engine exhaust

1шт.

13

D136087

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

A189275

SUPPORT

BRACKET support, muffler

1шт.

18

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex head, 8 mm - 1.5 x 30 mm

2шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

20

892-1108

LOCK WASHER,M8

2шт.

21

825-1108

NUT,Hex, M8, Cl 8

hex, 8 mm - 1.25

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

See Figure 4-016 for hardware used on models with air conditioning.

1шт.

23

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm

2шт.

See Figure 4-016 for hardware used on models with air conditioning.

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

See Figure 4-016 for hardware used on models with air conditioning.

1шт.
