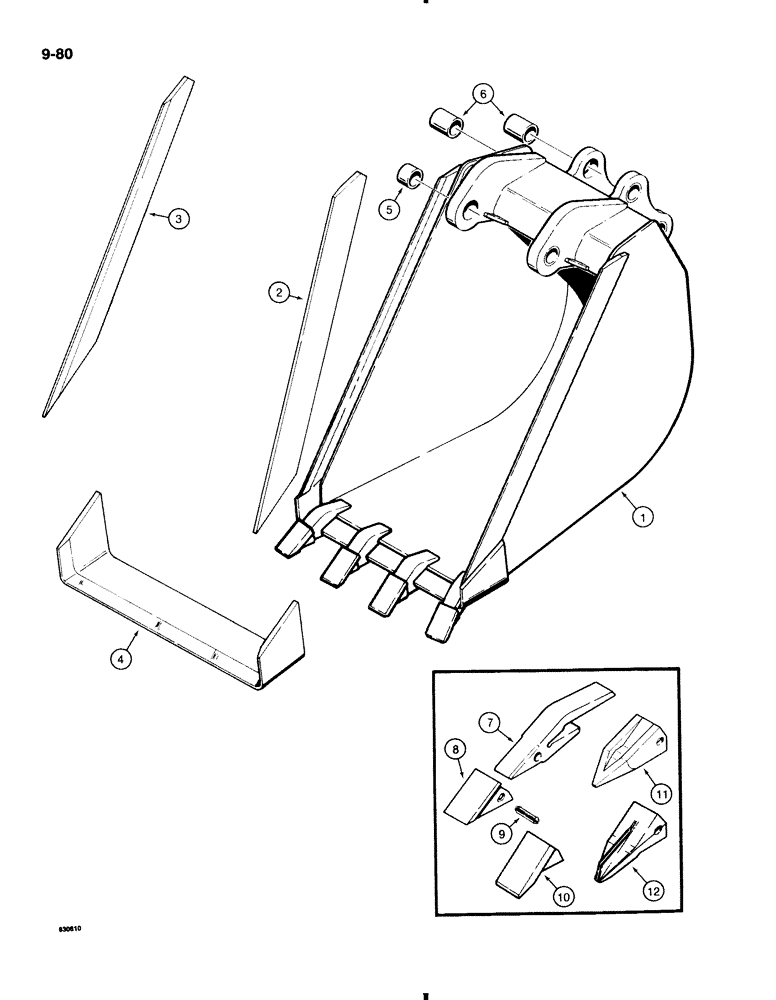

Запчасти Case 580K (9-080) - BACKHOE BUCKET, 24 INCH (610 MM) HIGH CAPACITY TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY, 24", 610 mm, machinery item, order from the Machinery Price List, Includes Ref. 2-6, P/N L43266

1шт.

L107618 24" high capacity bucket - - may be ordered thru parts

1шт.

2

L70084

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

L70083

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D41673

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket links

4шт.

L43266

TOOTH

ASSEMBLY, high capacity bucket, Includes Ref. 7-9

4шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D39093

TOOTH

POINT tooth

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN point

1шт.

10

D44193

TOOTH

POINT tooth, heavy duty, flat end, service option, optional bucket teeth

1шт.

11

D80119

TOOTH

POINT tooth, heavy duty, pointed end, service option, optional bucket teeth

1шт.

12

D79100

TOOTH

POINT tooth, heavy duty, star point, service option, optional bucket teeth

1шт.
