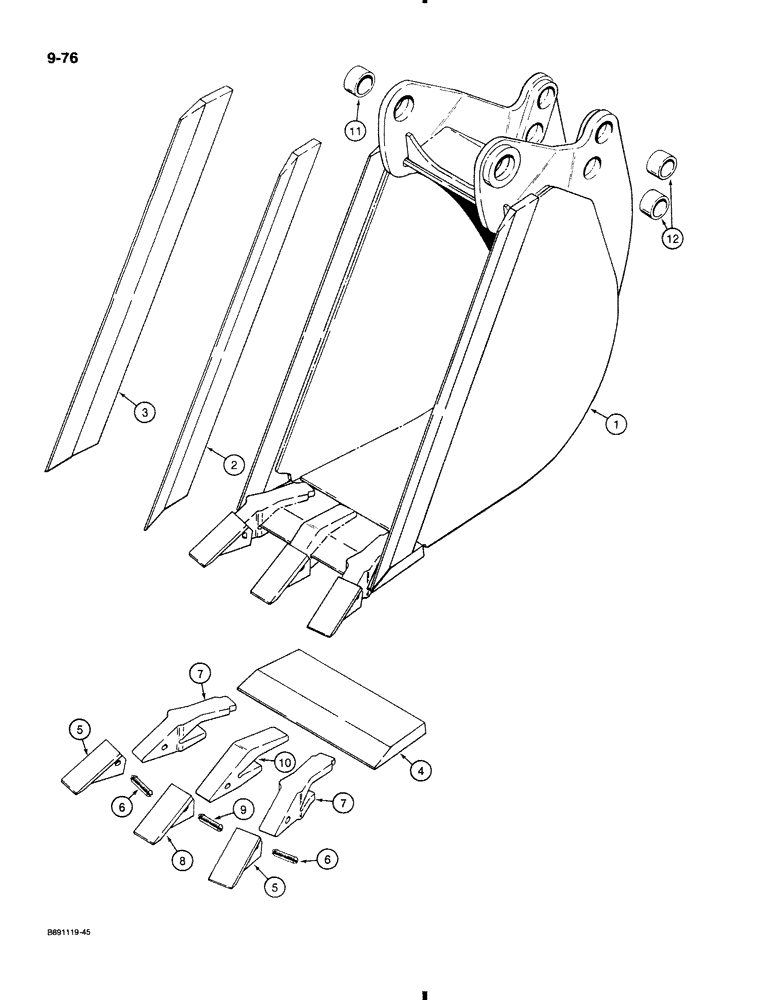

Запчасти Case 580K (9-076) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D145053

BUCKET

ASSEMBLY, with 7 teeth, 36", 914 mm, not shown, machinery item, order from the Machinery Price List, no longer used, order D147358 Universal bucket on Figure 9-78, Includes Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

D145053 36" HD bucket - may be ordered thru parts

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D145062

EDGE, CUTTING,901.8mm W x 165.1mm L

EDGE cutting, center, 36", 914 mm bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8-10

5шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.
