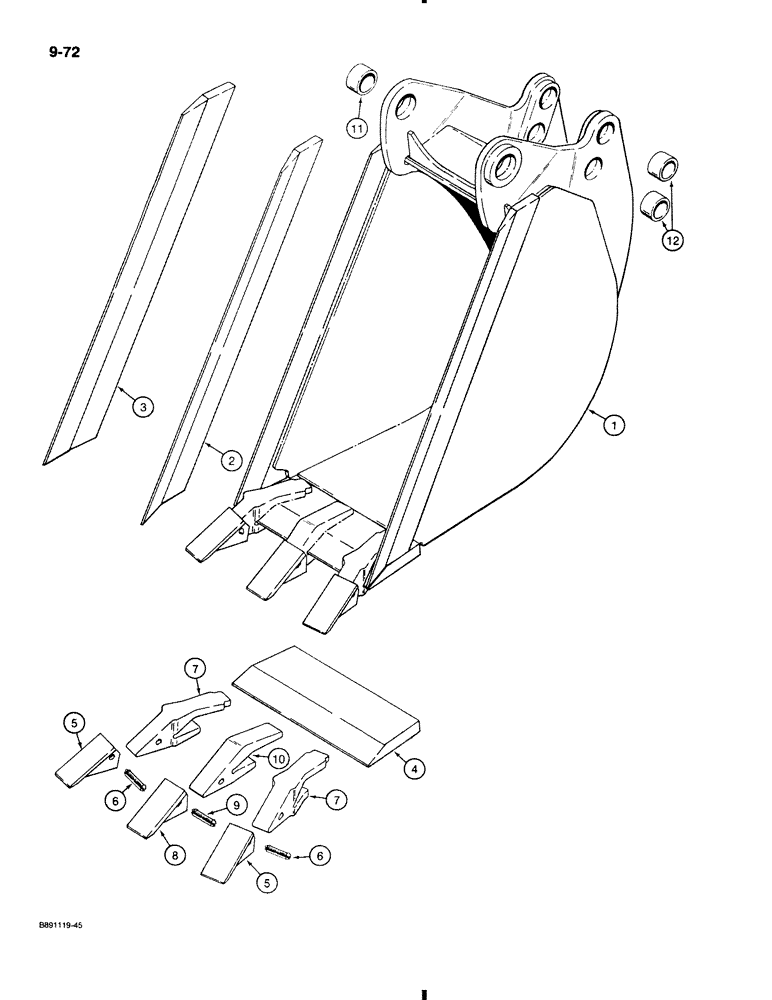

Запчасти Case 580K (9-072) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D145051

BUCKET

ASSEMBLY, with 5 teeth, 24", 610 mm, not shown, machinery item, order from the Machinery Price List, also see Figure 9-74 for 24 inch Universal bucket, Includes Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

D145051 24" HD bucket - may be ordered thru parts

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE cutting, center, 24", 610 mm bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Incudes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

D145052

BUCKET

ASSEMBLY, with 5 teeth, 30", 762 mm, not shown, machinery item, order from the Machinery Price List, no longer used, order D147350 Universal bucket on Figure 9-74, Includes Ref. 2-4, 11-12, P/N's D139851, D139849

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D145061

EDGE, CUTTING

EDGE cutting, center, 30", 762 mm bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8-10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.
