Запчасти Case 580K (9-070) - UNIVERSAL BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

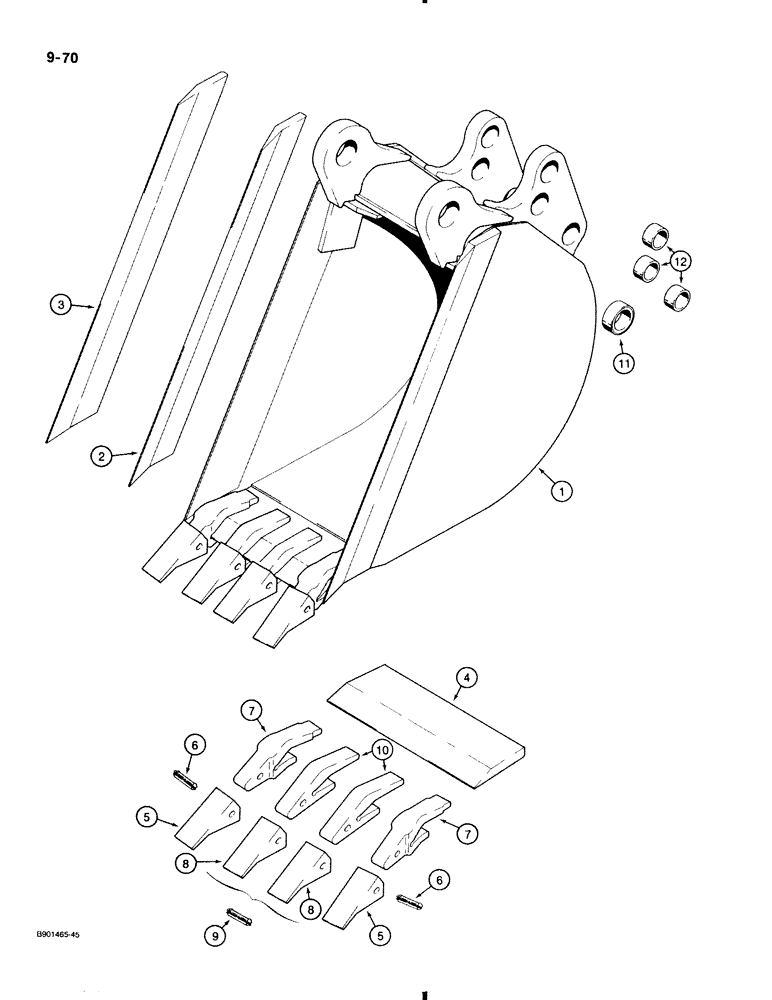

Схема запчастей Case 580K - (9-070) - UNIVERSAL BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
7
8
10
7
4
12
1
11
6
8
3
2
5
6
9
5

Артикул

Название

Примечание

Количество

1

D147247

BUCKET

ASSEMBLY, with 3 teeth, 16", 406 mm, not shown, machinery item, order from the Machinery Price List, Includes Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

D147247 16" HD bucket - may be ordered thru parts

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D147249

EDGE

cutting, center, 16", 406 mm bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, Includes Ref 8-10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

6шт.

1

D146588

BUCKET

ASSEMBL,Y with 4 teeth, 18", 457 mm, machinery item, order from the Machinery Price List, Includes Ref. 2-4, 11-12, and P/N's D139851, D139849

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE cutting, center, 18", 457 mm bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners

2шт.

5

D51750

BUCKET TOOTH POINT

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center

2шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

6шт.

Выбрано товаров: 29
