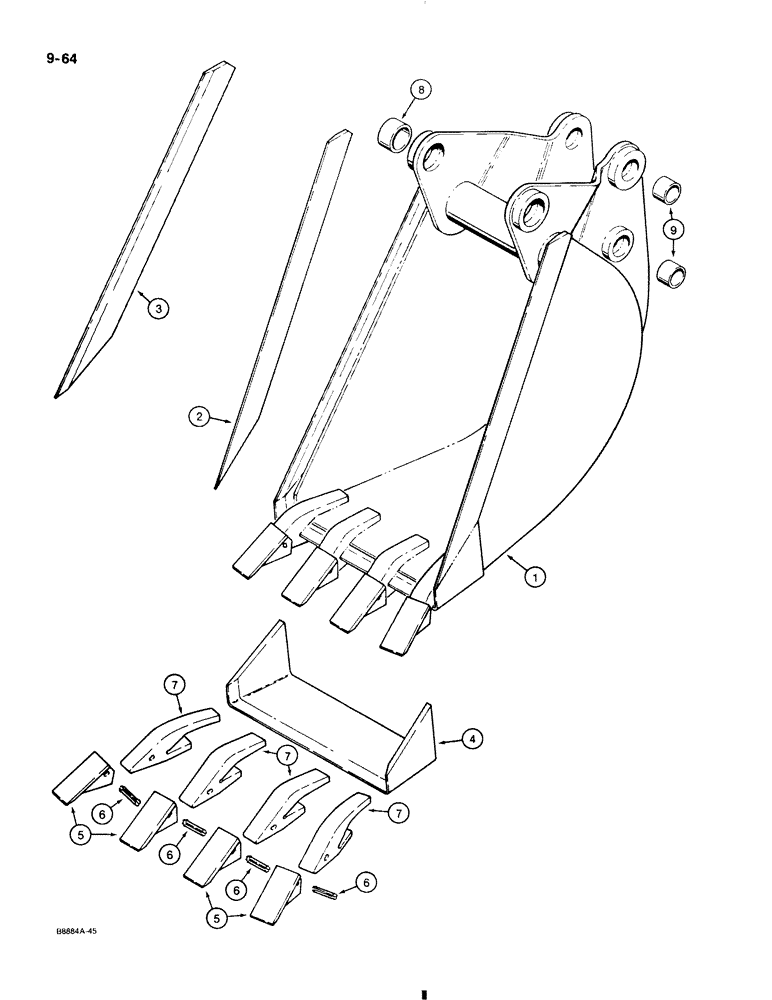

Запчасти Case 580K (9-064) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D139795

BUCKET

ASSEMBLY, with teeth, 18", 457 mm, machinery item, order from the Machinery Price List, Includes Ref. 2-4, 8-9, P/N D41659

1шт.

D139795 18" bucket - may be ordered thru parts

1шт.

2

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D37642

EDGE, CUTTING

EDGE cutting center, 18", 457 mm bucket

1шт.

D41659

TOOTH

ASSEMBLY, trenching bucket, Includes Ref. 5-7

4шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

D139796

BUCKET

ASSEMBLY, with 5 teeth, 24", 610 mm, not shown, machinery item, order from the Machinery Price List, Includes Ref. 2-4, 8-9, P/N D41659

1шт.

2

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D37507

EDGE

cutting, center, 24", 610 mm bucket

1шт.

D41659

TOOTH

ASSEMBLY, trenching bucket, Includes Ref. 5-7

5шт.

5

D39093

TOOTH

POINT tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.
