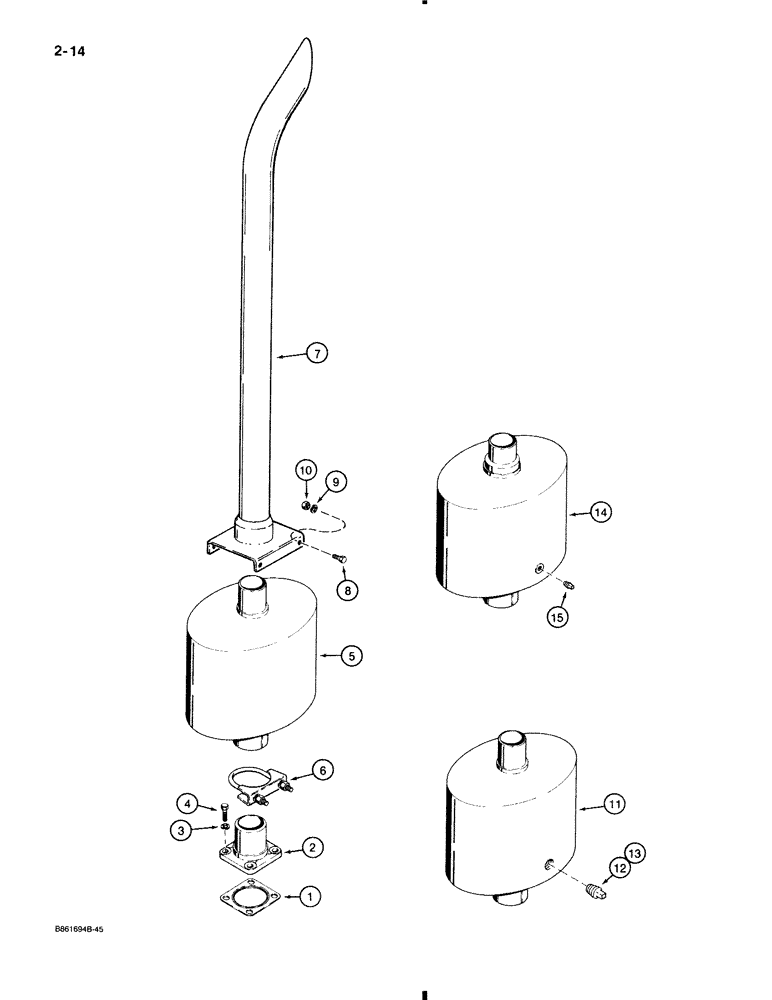

Запчасти Case 580K (2-014) - MUFFLER AND EXHAUST SYSTEM, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

1

J912220

GASKET,0.4mm Thk

steel, muffler adapter

1шт.

2

A170611

ADAPTER

muffler

1шт.

3

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

A184237

MUFFLER

engine exhaust, under hood, standard, if used

1шт.

6

A62874

CLAMP

muffler, Includes hardware

1шт.

7

D136087

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension, Serial Range: attaches-hood

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

A184241

MUFFLER

spark arrester, under hood, no longer available, order A189315, Ref. 14, Includes: Ref. 12 and 13

1шт.

12

217-77

PLUG

square head, brass, spark arrester muffler, 3/8" NPT, if used

1шт.

13

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG square head, steel, spark arrester muffler, 3/4" NP, if used

1шт.

14

A189315

MUFFLER

spark arrester, under hood, if used, Includes: Ref. 15

1шт.

15

217-77

PLUG

square head, brass, spark arrester muffler, 3/8" PT

1шт.
