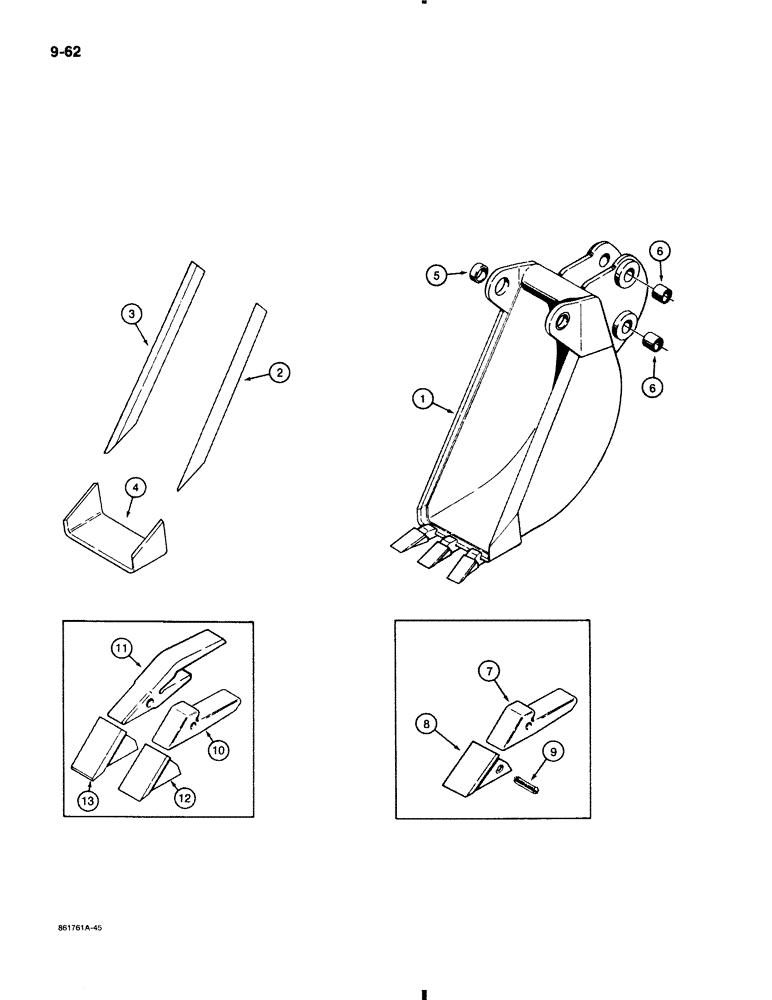

Запчасти Case 580K (9-062) - BACKHOE BUCKET, TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY, 12", 305 mm machinery item, order from Machinery Price List, Includes Ref. 2-6, P/N D41659

1шт.

D52642 12" bucket - may be ordered thru parts

1шт.

2

D29424

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket links

4шт.

D41659

TOOTH

ASSEMBLY, trenching bucket, pinned on, Includes Ref. 7-9

3шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

8

D39093

TOOTH

POINT tooth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point

1шт.

10

D26368

SUPPORT

SHANK tooth, original equipment, if used, crimped on bucket teeth

1шт.

11

D58499

SUPPORT

SHANK tooth, service option, if used, crimped on bucket teeth

1шт.

12

D27748

TOOTH

POINT tooth, original equipment, if used, crimped on bucket teeth

1шт.

13

D36720

TOOTH

POINT tooth, heavy duty service option, if used, crimped on bucket teeth

1шт.
