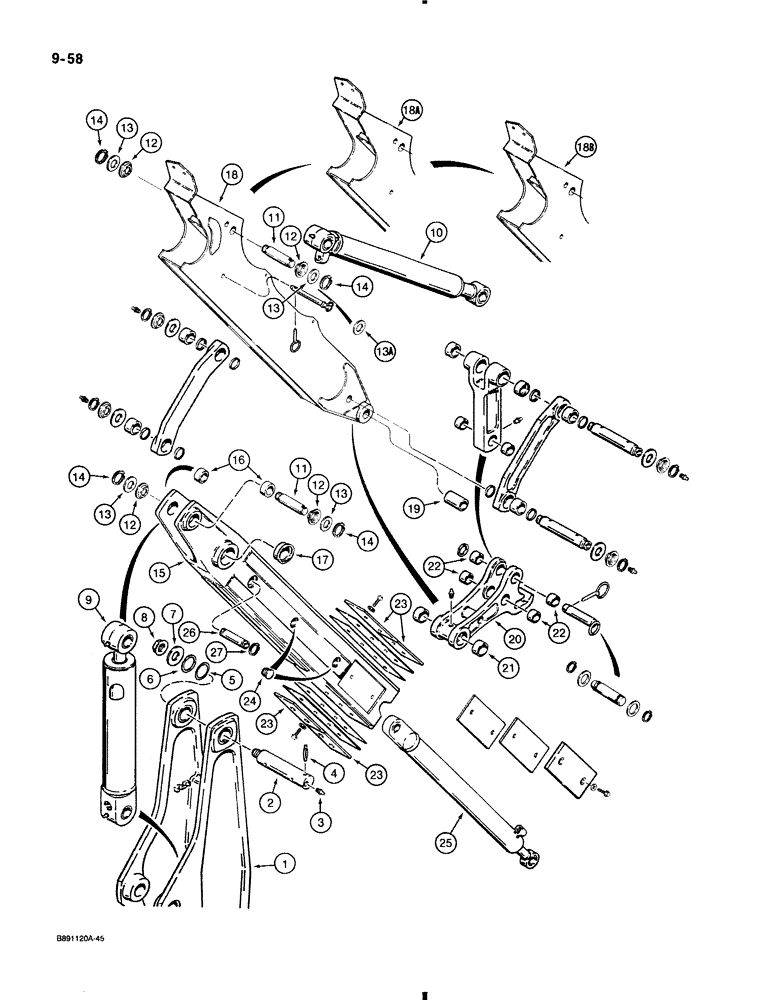

Запчасти Case 580K (9-058) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM backhoe, see Figure 9-48

1шт.

2

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT, both ends of Ref. 2 pin

2шт.

4

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

5

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

2шт.

6

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

8

D120610

NUT

hex, special, 1-3/4" - 12 NF

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY, dipper, for correct assembly and components, see Figure 8-154

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY, bucket, for correct assembly and components, see Figure 8-156

1шт.

11

D141666

PIN,50mm OD x 199mm L

dipper and bucket, Serial Range: cylinder-dippers

2шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

12

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1/13/16" ID x 3" OD x 1/8" thick

4шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

13

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

flat, 1-13/16" x 2-3/4" x 1/8"

2-4шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

13a

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch, used with D146558 dipper housing, if used

2шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

D140889

HYDRAULIC VALVE

DIPPER ASSEMBLY, extension, inner, Includes Ref. 15-17

1шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

15

NSS

NOT SOLD SEPARAT

DIPPER inner

1шт.

16

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

without slots for groove pin, dipper cylinder rod end pivot, 2", 50 mm ID x 1-11/32", 34 mm long, Replaces D141389

1шт.

17

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

boom to dipper pivot, 2-3/4", 70 mm ID x 1-7/16", 36 mm long

2шт.

18

D142136

HOUSING

dipper, outer, 10 mm thick side plates, without coupler, Ref. 20, order coupler and bushings separately, no longer available, order D147989 dipper housing

1шт.

18a

D147989

BOOM

HOUSING dipper, outer, 8 mm thick side plates, without inner cylinder mounting reinforcement ears at bucket end, if used

1шт.

18b

D146558

HOUSING

dipper, outer, 8 mm thick side plates, with inner cylinder mounting reinforcement ears at bucket end, if used

1шт.

19

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

bucket coupler pivot, 1-3/4", 45 mm ID x 3-11/16", 94 mm long

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY, bucket, Includes Ref. 20-22

1шт.

20

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

special, at dipper, 1-3/16", 30 mm long

2шт.

22

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

at bucket link, 1-1/8", 28 mm) long

4шт.

23

D141998

LARGE PLATE

WEAR PLATE plastic

4шт.

Part of extendahoe inner dipper assemblies kit P/N D103366 and Figure 9-58 and 9-60 and instruction sheet

1шт.

24

D133865

PLUG

plastic

4шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY, dipper extension, for correct assembly and components, see Figure 8-158b

1шт.

26

D129892

PIN

dipper extension cylinder closed end

1шт.

27

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

D103366

KEY

KIT extendable inner dipper assembly, Includes Refs. 11, 12, 13, 14, D140889 and 23 on Figure 9-58 and 9-60 and an instruction sheet

1шт.
