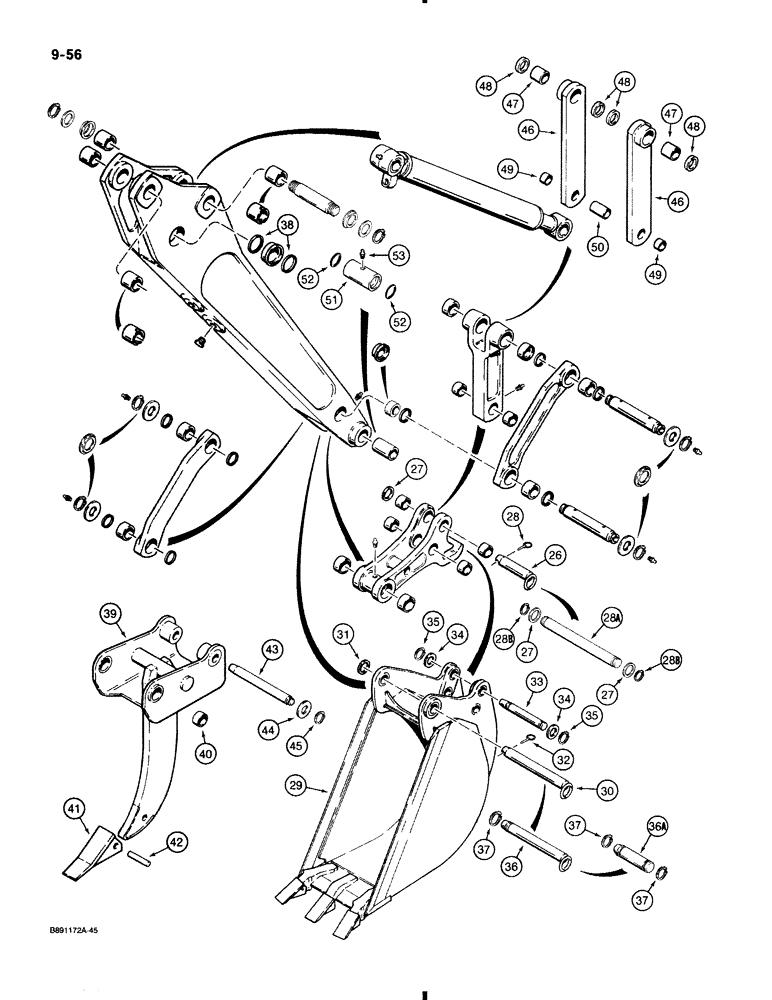

Запчасти Case 580K (9-056) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

26

D140653

PIN,44.42mm OD x 152mm L

dump link to bucket coupler, if used

1шт.

27

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1-2шт.

28

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock, if used

1шт.

This lock pin is 1.63 ID, If 1.75 ID is needed use P/N D130037.

1шт.

28a

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler, if used

1шт.

28b

D25280

SNAP RING,#175, Ext

Ring, Snap, , if used #175, Ext

2шт.

29

REF

INSTRUCTION

BUCKET backhoe, see Figures 9-62 through 9-82 for bucket options

1шт.

30

D140655

PIN,44.29mm OD x 349mm L

dipper to bucket, all buckets excepts 12", 305 mm buckets, for models with 12" bucket see Ref. 36 pin

1шт.

31

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

32

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN lock

1шт.

33

D149298

PIN,44.38mm OD x 331mm L

dipper to bucket,

1шт.

34

103-16175

SNAP RING,#175, Ext

snap ring

2шт.

35

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

36

D135690

PIN

dipper to bucket, 12", 305 mm buckets only, not used on the Universal 12" bucket, see Ref. 36A

1шт.

36a

D37614

PIN,38mm Od x 246mm L

bucket coupler, 12", 305 mm, universal bucket only

1шт.

37

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

spacer, 38 mm x 64 mm x 2 mm

2шт.

37

D25279

SNAP RING,M35, Int

pin retaining

2шт.

38

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease, O.D. 3.15", I.D. 2.75"

4шт.

D140679

BRACKET

FROST POINT ASSEMBLY, backhoe, Includes Ref. 39-42

1шт.

39

NSS

NOT SOLD SEPARAT

BODY frost point

1шт.

40

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

front point pivot

2шт.

41

D83306

POINT

tooth

1шт.

42

D43417

PIN

tooth point

1шт.

43

D54218

PIN,38.1mm OD x 345.95mm L

link to frost point

1шт.

44

195-63

WASHER,1 5/8" x 3 1/4" x .180"

flat, 1-9/16" ID x 3-1/4" OD x 3/16" thick

2шт.

45

D25279

SNAP RING,M35, Int

pin retaining

2шт.

D141074

PITMAN

LINK ASSEMBLY, bucket, used with Ref. 16 link, may replace Ref. 13 coupler and Ref. 18 link for some attachments, optional backhoe bucket links for rear attachments, Includes Ref. 46-49

2шт.

46

NSS

NOT SOLD SEPARAT

LINK attachment, optional backhoe for rear attachments

1шт.

47

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

cylinder pivot, 2-1/8", 54 mm long, optional backhoe bucket links for rear attachments

1шт.

48

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease, optional backhoe bucket links for rear attachments, O.D. 2.36", I.D. 1.96"

2шт.

49

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

pivot, 1", 25 mm long, optional backhoe bucket links for rear attachments

1шт.

50

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

links, 2-25/32", 71 mm long, optional backhoe bucket links for rear attachments

1шт.

51

D141076

SPACER,57.17mm ID x 76.2mm OD x 138mm L

dipper end, 5-7/16", 138 mm long, optional backhoe bucket links for rear attachments

1шт.

52

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

spacer, optional backhoe bucket links for rear attachments

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT, optional backhoe bucket links for rear attachments

1шт.
