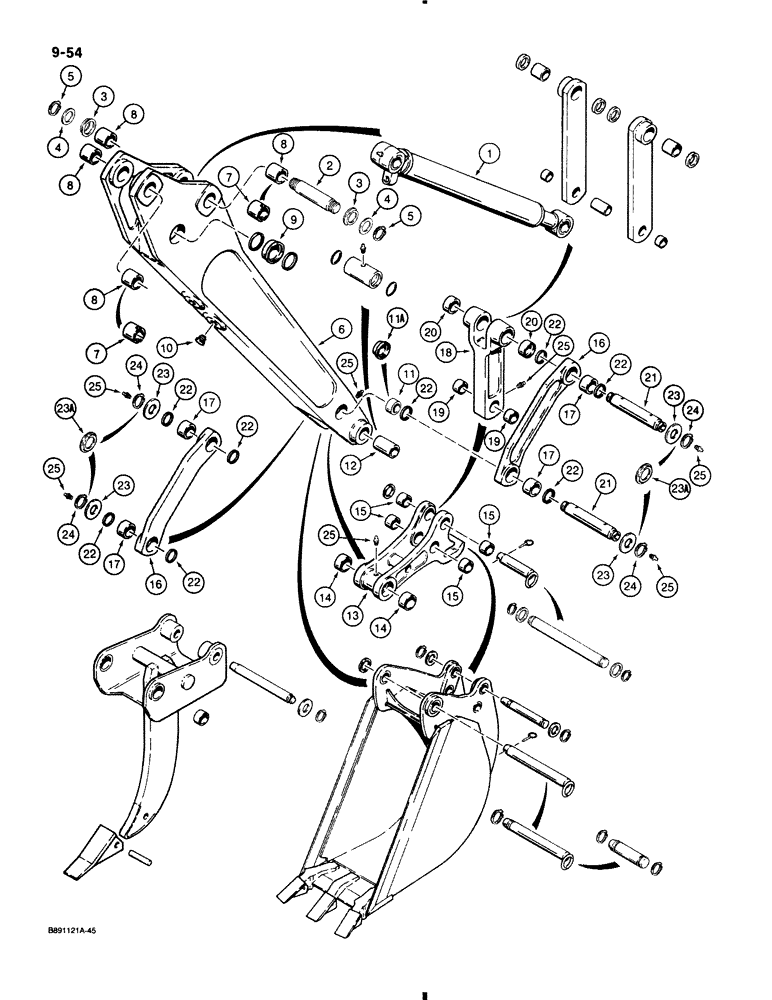

Запчасти Case 580K (9-054) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, bucket, for correct assembly and components, see Figure 8-156

1шт.

2

D138022

PIN,50mm OD x 240mm L

Bucket cylinder closed, Serial Range: end-dipper

1шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

3

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" ID x 3" OD x 1/8" thick

1шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

4

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

Either use two of Ref. 3 or two of Ref. 4 with P/N D138022 pin.

1шт.

5

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

D127163

ASSEMBLY

DIPPER ASSEMBLY, backhoe, Includes D139084 coupler, Ref. 13, no longer available, order D145904 dipper

1шт.

D140368

DIPPER ASSEMBLY, backhoe, used in production, Includes D139084 coupler, Ref. 13, Replaced by D145902 dipper in production, for service order D145904 dipper

1шт.

D145902

DIPPER ASSEMBLY, backhoe, used in production, without D139084 coupler, Ref. 13, for service order D145904 dipper

1шт.

D145904

BOOM

DIPPER ASSEMBLY, backhoe, without D139084 coupler, order Ref. 13 coupler separately, Includes Ref. 6-12, P/N D139084

1шт.

6

NSS

NOT SOLD SEPARAT

DIPPER backhoe

1шт.

7

D136565

BUSHING,50.22mm ID x 70mm OD x 54mm L

with slot for groove pin, right hand side of dipper at dipper cylinder rod end pivot and bucket cylinder closed end pivot, D127163 or D145904 dipper, 50 mm ID x 54 mm long

2шт.

8

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

without slot for groove pin, dipper cylinder rod end pivot and bucket cylinder closed end pivot, 2", 50 mm ID x 2-1/8", 54 mm long, two on D127163, four on D140368, four on D145902, two on D145904 dipper

2-4шт.

9

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

D127163, D140368, D145902, or D145904 dipper to boom pivot, 70 mm ID x 36 mm long

2шт.

10

D120450

PLUG

plastic

6шт.

11

D141249

BUSHING,50.19mm ID x 70mm OD x 25.5mm L

bucket link pivot, D140368 or D145902 dipper, 50 mm ID x 25 mm long

2шт.

11a

D136573

BUSHING,50.19mm ID x 74mm OD x 40mm L

bucket link pivot, D127163 or D145904 dipper, 50 mm ID x 36 mm long

2шт.

12

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

bucket coupler pivot, D127163 or D140368 dipper, 45 mm ID x 94 mm long

2шт.

D139084

CLIP, SPRING

COUPLER ASSEMBLY, bucket, D127163 or D140368 dipper, Includes Ref. 13-15

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLER backhoe bucket

1шт.

14

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

special, at dipper, 1-3/16", 30 mm long

2шт.

15

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

at bucket link, 1-1/8", 28 mm long

4шт.

16

D141468

PITMAN

LINK bucket guide, with 1" long bushing, Includes Ref. 17

2шт.

17

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 mm x 60 mm x 25 mm

2шт.

18

D140007

PITMAN

LINK bucket dump, with two bushings at forked end, Includes Ref. 19-20

1шт.

19

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

1-1/8", 28 mm long

2шт.

20

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

2-1/8", 54 mm long

2шт.

21

D141142

PIN,50mm OD x 306mm L

306 mm long

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

8шт.

23

495-81282

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16" ID x 3" OD x 1/8" thick

4шт.

23a

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" x 3" x 1/8"

4шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

6шт.
