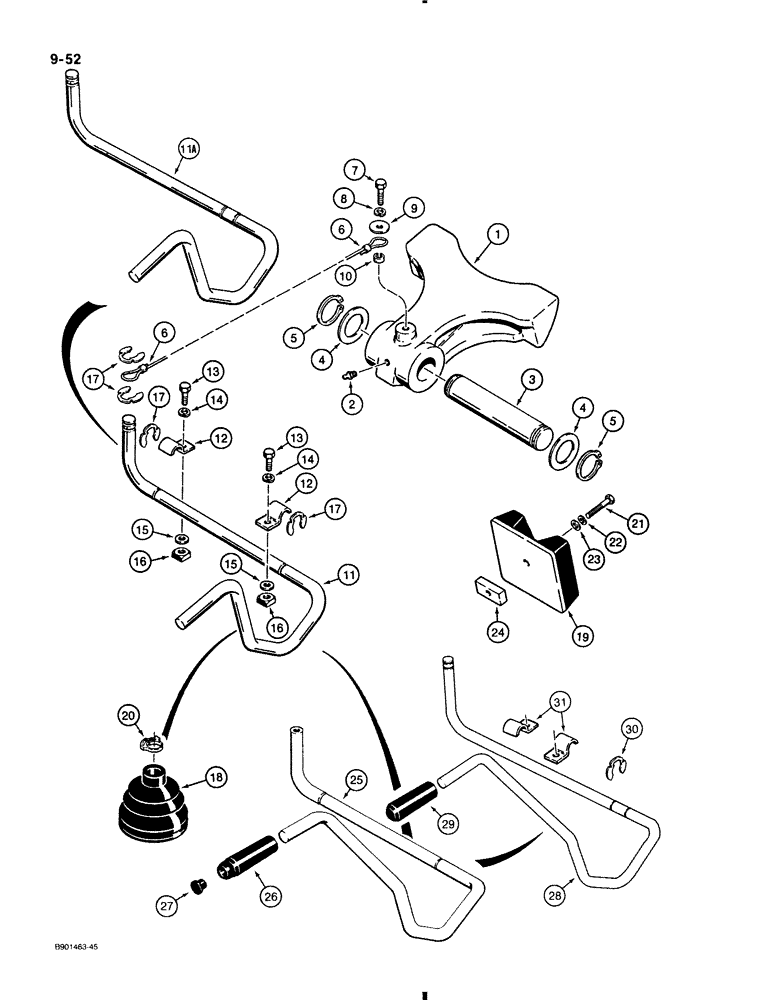

Запчасти Case 580K (9-052) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH backhoe boom

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

3

D129227

PIN,40mm OD x 196mm L

- Boom latch to swing tower

1шт.

4

D144592

WASHER,41mm ID

flat, special

2шт.

5

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

6

D129641

CABLE

latch control

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, plated, 3/8" - 16 NC x 1"

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

flat, 3/8"

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 mm x 16 mm x 6 mm

1шт.

11

D142634

THREADED ROD

ROD boom latch control, not used on models with tilt backhoe controls, see Ref. 25-31, no longer available, order D148136 rod, Ref. 11A

1шт.

11a

D148136

THREADED ROD

ROD boom latch control, not used on models with tilt backhoe controls, see Ref. 25-31

1шт.

12

D143723

SHIN

CLAMP rod

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

2шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8" - 16 NC

2шт.

17

D143591

RING, SNAP,12.7mm ID, Ext

RETAINER clip ring

4шт.

18

D86664

BOOT

rod

1шт.

19

D141556

RUBBER BLOCK

BUMPER boom

1шт.

20

D143735

CLAMP,19.1mm - 22.2mm

boot

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

1шт.

24

D143425

BAR

PLATE boom stop

1шт.

25

D139927

ROD

boom latch control, 7/8" diameter, used with Ref. 26 and 27 on models with tilt backhoe controls, no longer available, order D148287 rod, four D143591 retainers, two D143723 clamps, and one D86694 knob, Ref. 28-31

1шт.

26

D91439

TUBE

KNOB boom latch rod, used with Ref. 25, if used

1шт.

27

353-406

PLUG,Dome, .625" hole, Nylon

D91439 knob, if used

1шт.

28

D148287

ROD

boom latch control, 5/8" diameter, used with Ref. 29-31 on models with tilt backhoe controls

1шт.

29

D86694

KNOB

boom latch rod, used with Ref. 28, if used

1шт.

30

D143591

RING, SNAP,12.7mm ID, Ext

RETAINER clip ring, if used

4шт.

31

D143723

SHIN

CLAMP rod, if used

2шт.
