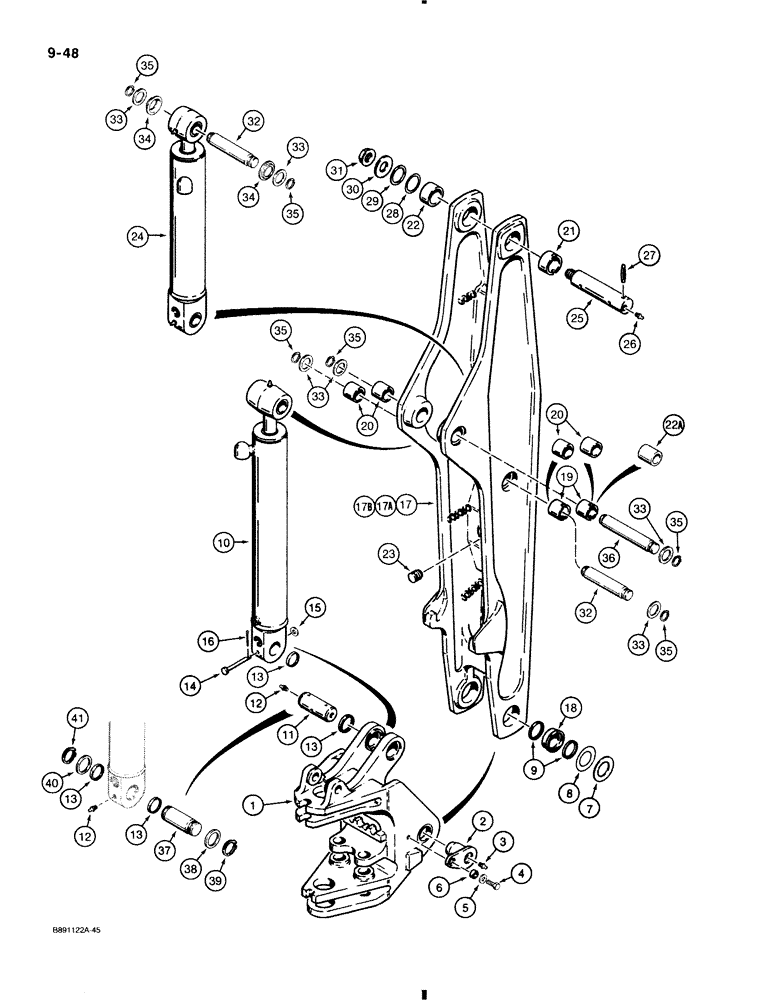

Запчасти Case 580K (9-048) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWING TOWER backhoe, with inner ears, see Figure 9-44 for swing tower and bushings

1шт.

2

D140093

PIN

swing, Serial Range: tower-boom

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

2шт.

4

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex head, plated, 3/4" - 10 NC x 1-1/2"

2шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, 3/4"

2шт.

6

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

bolt

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

72 mm x 114 mm x 3 mm

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM 2-13/16" x 4-1/2" x 1/16"

1шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY, boom, for correct assembly and components, see Figures 8-148 through 8-152

1шт.

11

D140096

PIN,69.98mm OD x 160mm L

boom cylinder closed end to swing tower, used with 1971713C2 or 1980460C2 boom cylinder, if used

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1-2шт.

13

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease, O.D. 3.15" I.D. 2.75"

2-4шт.

14

S10835

CLEVIS PIN,14.33mm OD x 144.86mm L

PIN, CLEVIS, 9/16" x 5-1/2", hardened, if used

1шт.

15

495-11066

WASHER,5/8", SAE

flat, plated, 5/8", if used

1шт.

16

132-311

COTTER PIN,5/32" x 1 1/4"

if used 5/32" x 1 1/4"

1шт.

17

D127159

BOOM

backhoe, complete, use on tractors prior to P.I.N. JJG0029391

1шт.

17a

D140367

BOOM

backhoe, complete, used in production, prior to P.I.N. JJG0029391, for service order D127159 boom

1шт.

17b

D147729

BOOM

backhoe, complete, used on tractor P.I.N. JJG0029391 and after, Includes Ref. 18-23

1шт.

18

D136569

BUSHING,70.19mm ID x 94mm OD x 38mm L

boom to swing tower pivot, 70 mm ID x 33 mm long

2шт.

19

D136565

BUSHING,50.22mm ID x 70mm OD x 54mm L

50 mm ID x 54 mm long

2шт.

With slot for groove pin, right hand side of boom at dipper cylinder closed end pivot and boom cylinder rod end pivot, D127159 boom

1шт.

20

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

2", 50 mm ID x 2-1/8", 54 mm long

2-4шт.

Without slot for groove pin, left hand side of boom at dipper cylinder closed end pivot and boom cylinder rod end pivot, may be replaced with D136565 bushing on some booms, 2 used on left hand side of D127159 boom, 4 used on D140367 boom, 2 used on D147729 boom at dipper cylinder closed end pivot.

1шт.

21

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

2-3/4", 70 mm ID x 1-3/4", 44 mm long

1шт.

With slot for groove pin, right hand side of boom at boom to dipper pivot

1шт.

22

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2-3/4", 70 mm ID x 1-3/4", 44 mm long

1шт.

Without slot fro groove pin, left hand side of boom at boom to dipper pivot, may be, Replaced with D135739 bushing on some booms

1шт.

22a

D145080

BUSHING

50 mm ID x 78 mm long

2шт.

Boom cylinder rod end pivot, D147729 boom

1шт.

23

D120450

PLUG

plastic

7шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY, dipper, for correct assembly and components, see Figure 8-154

1шт.

25

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

2шт.

27

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

28

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

1шт.

29

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Boom to dipper 3.05mm Thk

1шт.

30

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

31

D120610

NUT

hex, special flanged, 1-3/4" - 12 NF

1шт.

32

D138022

PIN,50mm OD x 240mm L

Dipper cylinder to boom and dipper

2шт.

Either use two of Ref. 33 or two of Ref. 34 for P/N D138022 dipper cylinder mounting pin, Ref. 32.

1шт.

33

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

Either use two of Ref. 33 or two of Ref. 34 for P/N D138022 dipper cylinder mounting pin, Ref. 32.

1шт.

34

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" x 3" x 1/8"

1шт.

Either use two of Ref. 33 or two of Ref. 34 for P/N D138022 dipper cylinder mounting pin, Ref. 32.

1шт.

35

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

6шт.

36

D138023

PIN,50mm OD x 290mm L

boom cylinder rod, Serial Range: end-boom

1шт.

37

D151068

PIN

boom cylinder closed end to swing tower, used with 1346217C1 boom cylinder, if used

1шт.

38

D144423

WASHER,66.7mm ID x 86mm OD x 3.4mm Thk

2-5/8" x 3-3/8" x 1/8", used as a shim

1шт.

39

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining, right hand side of swing tower

1шт.

40

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(2-27/32" x 3-1/2" x 1/16") 1.57mm Thk

1шт.

41

800-40070

SNAP RING,M70 Ext

RING snap, pin retaining, left hand side of swing tower

1шт.
