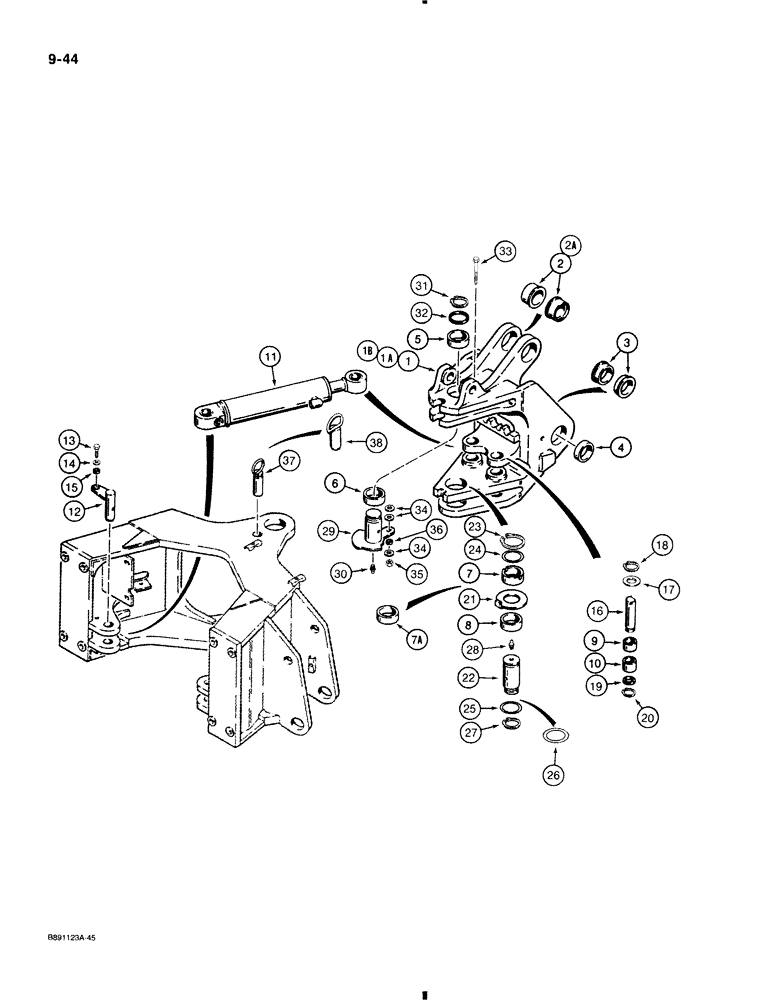

Запчасти Case 580K (9-044) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D133597

HOUSING

TOWER ASSEMBLY, backhoe swing, with inner ears, see Figure 9-48 for boom attaching parts, used on models with cross pin to retain pin to boom cylinder, Ref. 11 and 14-16 on Figure 9-48

1шт.

1a

D141067

FRAME

TOWER ASSEMBLY, backhoe swing, with inner ears, used in production, for service order D133597 swing tower, used on models with cross pin to retain pin to boom cylinder, Ref. 11 and 14-16 on Figure 9-48

1шт.

1b

D146499

FRAME

TOWER ASSEMBLY, backhoe swing, with inner ears, used on models with snap rings to retain pin to boom cylinder, Ref. 37-41 on Figure 9-48, Includes Ref. 2-10

1шт.

2

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

36 mm wide, boom cylinder pivot, D133597 or D141067 swing tower

2шт.

2a

D144422

BUSHING

31.8 mm wide, boom cylinder pivot, D146499 swing tower

2шт.

3

D135742

BUSHING,70.19mm ID x 94mm OD x 24mm L

inner, boom pivot

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

outer, boom pivot

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

upper, swing tower pivot

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

tower pivot

1шт.

7

D135558

BUSHING,70.19mm ID x 86mm OD x 34mm L

with slots for groove pin, tower pivot, D133597 swing tower

1шт.

7a

D138042

BUSHING

Without slots for groove pin, tower pivot, D141067 swing tower

1шт.

8

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

lower, tower pivot

1шт.

9

D136570

BUSHING,40.19mm ID x 55mm OD x 30mm L

upper, swing cylinder pivot

2шт.

10

D136571

BUSHING,40.19mm ID x 55mm OD x 38mm L

lower, swing cylinder pivot

2шт.

11

1971702C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, swing, for correct assembly and components, see Figure 8-146

2шт.

12

D139267

PIN

swing cylinder mounting, closed end

2шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

15

D23740

BUSHING

bolt

2шт.

16

D140306

PIN,40mm OD x 160mm L

swing cylinder rod end to swing tower

2шт.

17

D144592

WASHER,41mm ID

flat, 41 mm ID

2шт.

18

800-44040

SNAP RING,M40, Ext

RING snap

2шт.

19

495-81276

WASHER,1.31" ID x 1.75" OD x 0.07" Thk

flat, 1-5/16" x 1-3/4" x 1/16"

2шт.

20

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

21

D136699

WASHER

bearing, special, swing tower

1шт.

22

D138038

PIN

lower, swing tower to frame, grease fitting mounts in top of pin, without groove pin

1шт.

23

800-40070

SNAP RING,M70 Ext

RING snap, pin retaining, upper

1шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Upper 3.05mm Thk

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

lower, 67 mm x 83 mm x 2 mm

1шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD) 1.57mm Thk

1шт.

27

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining, lower

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

29

D140657

PIN

swing tower to frame, upper

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

31

800-40065

SNAP RING,M65, Ext

RING snap, pin retaining

1шт.

32

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 mm x 83 mm x 2 mm

1шт.

33

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

hex head, 1/2" - 13 NC x 5-1/2", grade 8

1шт.

34

495-11053

WASHER,1/2", SAE

Used as a spacer 1/2", SAE

1шт.

35

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC

1шт.

36

D139603

SPACER

pin mounting

1шт.

37

D141720

PIN

swing stop, without snap ring, no longer available, order D149239 pin, Ref. 38

1шт.

38

D149239

PIN

swing stop, without snap ring

1шт.
