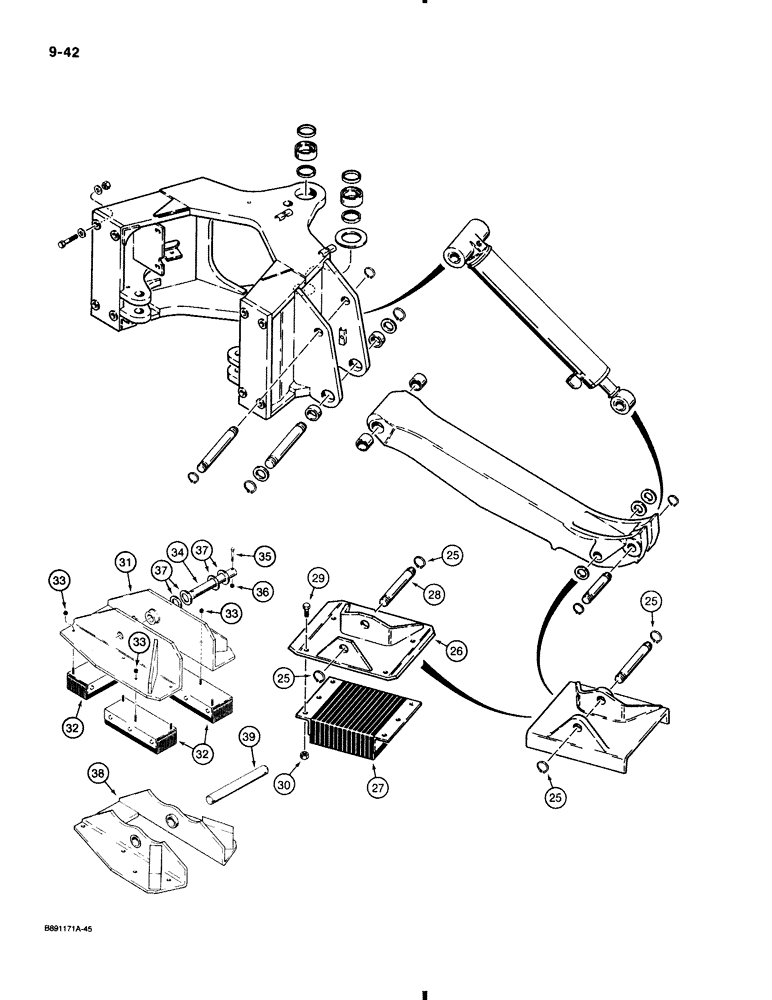

Запчасти Case 580K (9-042) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

25

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

26

D142519

SHOE (ASSY)

PLATE stabilizer, street or cemetery, if used

2шт.

27

D61368

PAD

Rubber, if used

2шт.

28

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN D142519 plate to leg, 9-3/8", 238 mm long

2шт.

29

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

If used Hex, 3/4"-10 x 1 3/4", G5

8шт.

30

129-108

NUT,3/4"-10, G5

If used 3/4"-10, G5

8шт.

31

D144673

SKID/SHOE

PLATE stabilizer, flip over, Category III, no longer used, order D147317 plate, Ref. 38

2шт.

32

D142314

SKID/SHOE

PAD rubber, if used

6шт.

Part of D147316 Assembly

1шт.

33

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, if used

18шт.

Part of D147316 Assembly

1шт.

34

D144672

PIN

plate to stabilizer leg, 11-1/2" long, no longer used, order D149033 pin, Ref. 39

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used Hex, 3/8"-16 x 2", G5

4шт.

Part of D147316 Assembly

1шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8" NC, If used

4шт.

Part of D147316 Assembly

1шт.

37

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

flat, 1-17/32" x 2-1/16" x 1/8"

8шт.

38

D147317

SKID/SHOE

PLATE stabilizer, flip over, Category III, if used

2шт.

Part of D147316 Assembly

1шт.

39

D149033

PIN,38.1mm OD x 323.5mm L

Plate to stabilizer leg, 12-1/2" long, if used

1шт.

Part of D147316 Assembly

1шт.

2 Pins P/N D149033 are needed if used.

1шт.
