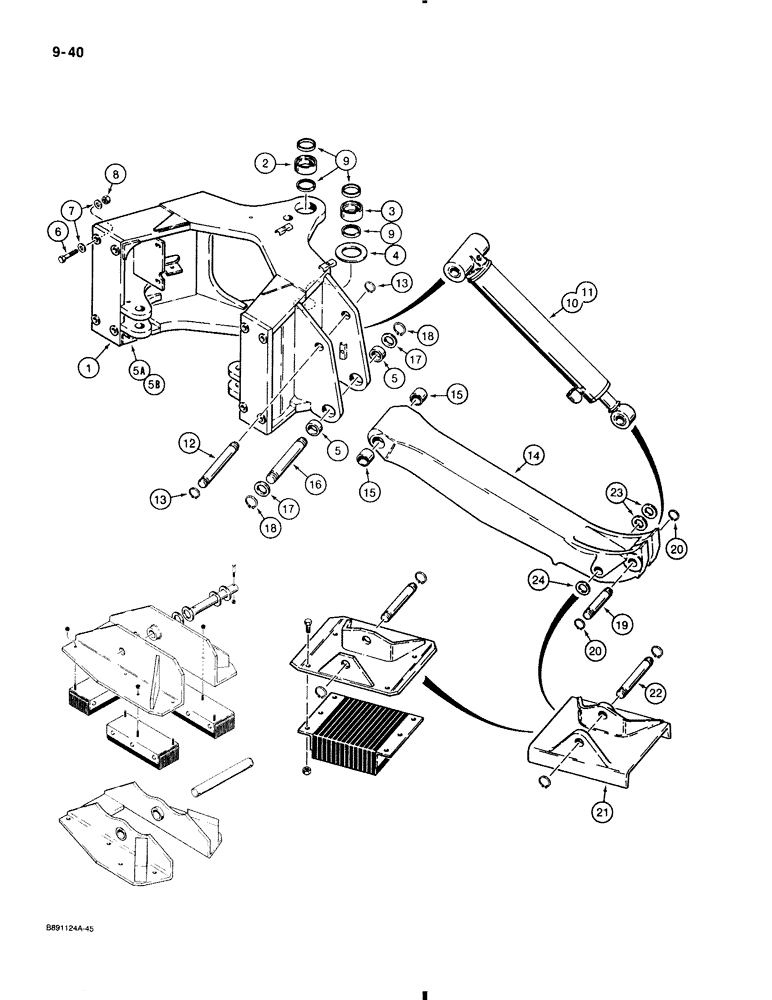

Запчасти Case 580K (9-040) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

D144455

FRAME

backhoe mounting, for use on loader models with demountable backhoe only, Includes Ref. 2-5B

1шт.

2

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting

1шт.

3

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting

1шт.

4

D136472

SPACER

bearing, welds to frame, 83 mm x 135 mm x 6 mm

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

lower, side, backhoe frame, at stabilizer leg mounting

4шт.

5a

D143460

LARGE PLATE

PLATEgusset, used with D136740 gusset, also order 8-75630 instruction sheet

2шт.

5b

D136740

GUSSET

frame, used with D143460 plate, also order 8-75630 instruction sheet

2шт.

6

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, 3/4"

16шт.

8

129-572

NUT,3/4"-10, G8

8шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

frame, at swing tower mounting

4шт.

10

G110672

CYLINDER ASSY.

CYLINDER ASSEMBLY, stabilizer, right hand, parts list Figure 8-144

1шт.

11

G110673

CYLINDER ASSY.

CYLINDER ASSEMBLY, stabilizer, left hand, parts list Figure 8-144

1шт.

12

D133509

PIN,38.1mm OD x 299mm L

stabilizer, Serial Range: cylinder-frame

2шт.

13

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

14

D133428

STABILIZER

LEG stabilizer, Includes Ref. 15

2шт.

15

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

leg to frame

2шт.

16

D134723

PIN

stabilizer, Serial Range: leg-frame

2шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-13/16" x 2-1/2" x 1/8"

4шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

19

D26002

PIN,38.1mm OD x 187.32mm L

stabilizer, Serial Range: cylinder-leg

2шт.

20

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

21

D88427

PLATE

stabilizer, cleated, if used

2шт.

22

D28648

PIN,1.5" OD x 10 7/16" L

D88427 stabilizer, Serial Range: plate-leg

2шт.

23

D31312

WASHER

spacer, hardened, 70 mm OD x 1.6 mm thick

1шт.

24

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

spacer, 1-1/2" x 2-1/2" x 7/64" thick

2шт.
