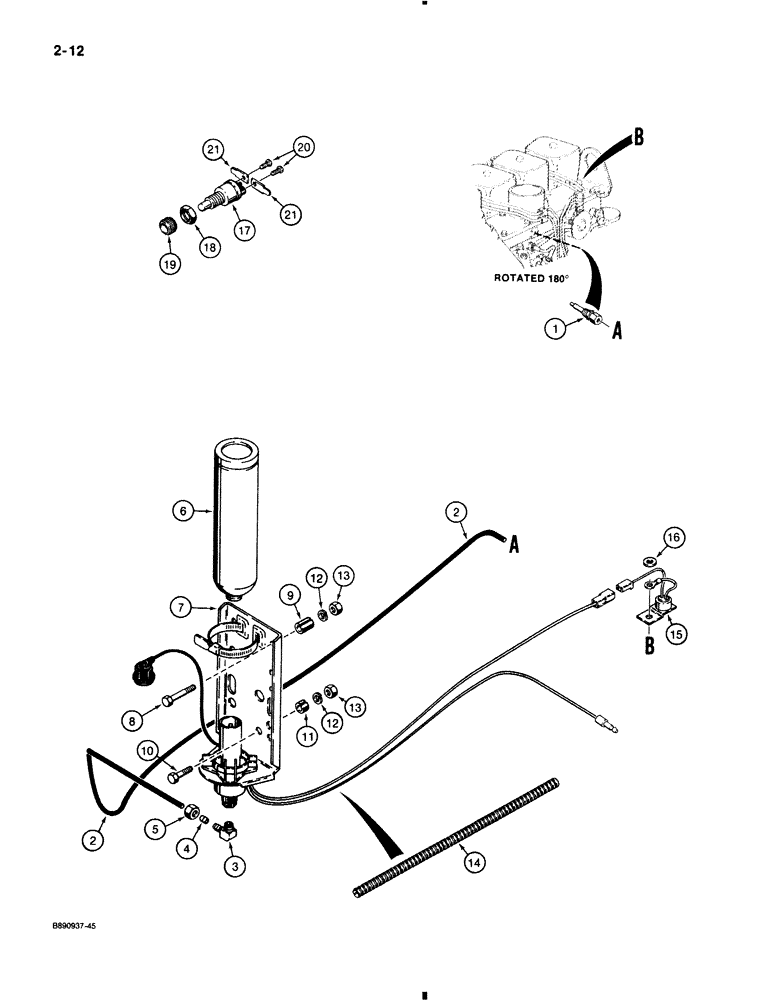

Запчасти Case 580K (2-012) - COLD START SYSTEM (02) - ENGINE

1

A189154

JET

NOZZLE ASSEMBLY, cold start injector, .008 dual orifice nozzle, component parts not serviced seperately

1шт.

2

D145367

TUBE

valve to injector nozzle, 30", 762 mm long

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 3 - 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

6

A171940

CYLINDER

STARTING FLUID cylinder

1шт.

7

A172116

VALVE

ASSEMBLY, starting fluid injection, 3 cc, component parts not serviced seperately

1шт.

8

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

D76210

SPACER

valve mounting, upper

2шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

R46103

SPACER

valve mounting, lower

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

13

9635082

NUT,5/16" - 18, Gr 5

3шт.

14

D128402

PLASTIC-RUBBER TUBE

SLEEVE wire guard, 15", 380 mm long

1шт.

15

A187923

SWITCH

- temperature, circuit breaking, uses existing intake manifold mounting hardware

1шт.

16

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

L72776

SWITCH

ASSEMBLY, cold start, must also order two L59682 blade terminals, Ref. 21, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH cold start

1шт.

18

H275784

JAM NUT

hex, jam, special

1шт.

19

D73741

NUT

hex, special

1шт.

20

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No. 10 - 32 NF x 1/4"

2шт.

21

L59682

TERMINAL CONNECTOR

TERMINAL blade, used with L72776

2шт.
