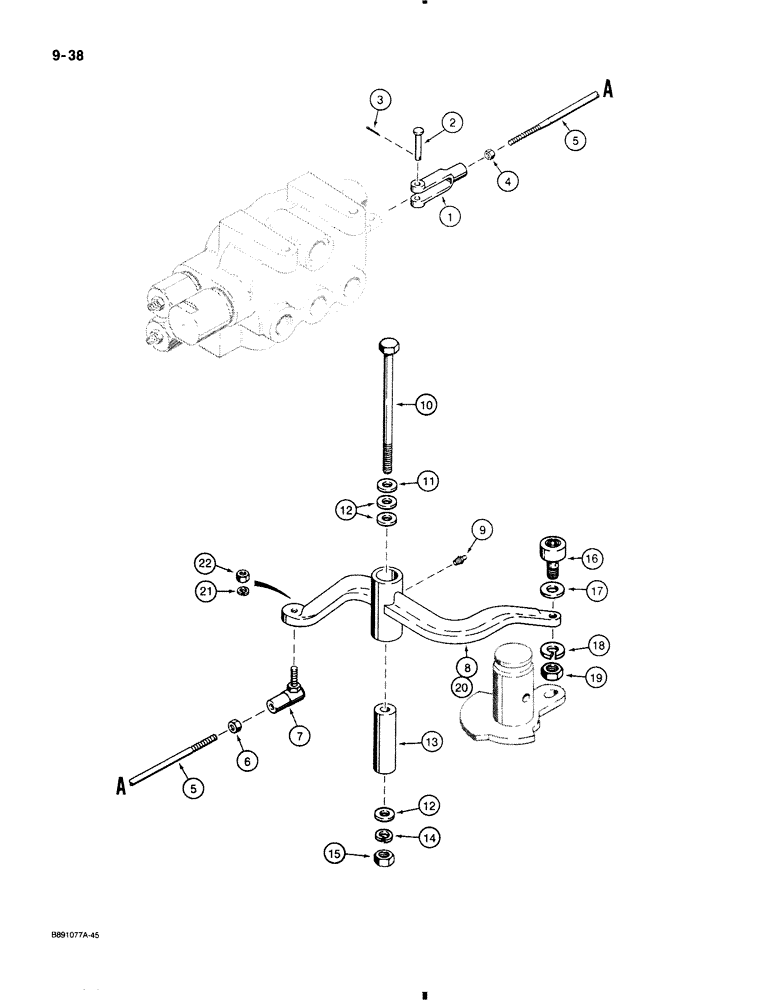

Запчасти Case 580K (9-038) - BACKHOE SWING SEQUENCE VALVE CONTROL (09) - CHASSIS/ATTACHMENTS

1

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS adjustable, 5/16" - 24 NF, attaches to swing sequence valve spool

1шт.

2

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

3

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

4

425-115

NUT,5/16"-24, G5

hex, plated, clevis end, 5/16" - 24 NF

1шт.

5

D143594

ROD

control

1шт.

6

129-215

NUT,3/8"-24, G5, LH

hex, left hand thread, ball joint end , 3/8" - 24 NF, subs to 125-11011

1шт.

7

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, left hand thread, 3/8"

1шт.

8

D145259

CRANK LEVER

LEVER crank, swing sequence, with tapped hole for balljoint retaining, no longer available, order D145218 bellcrank, 492-11038 washer, and 425-116 nut, Ref. 20 through 22 below

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

10

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2" NC x 6"

1шт.

11

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

flat, hardened, 9/16" x 1-1/4" x 11/64"

1шт.

12

495-21056

WASHER,1/2"

flat, 1/2"

1шт.

13

D145249

SPACER

pivot

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

16

D145113

SHIFTER ROLLER

FOLLOWER cam, hex socket

1шт.

17

495-11047

WASHER,7/16", SAE

1шт.

18

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

425-117

NUT,7/16"-20, G5

hex, 7/16" NF

1шт.

20

D145218

POWER ARM

LEVER crank, swing sequence, with through hole for balljoint, used with Ref. 21 and 22 to retain balljoint

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8" NC

1шт.
