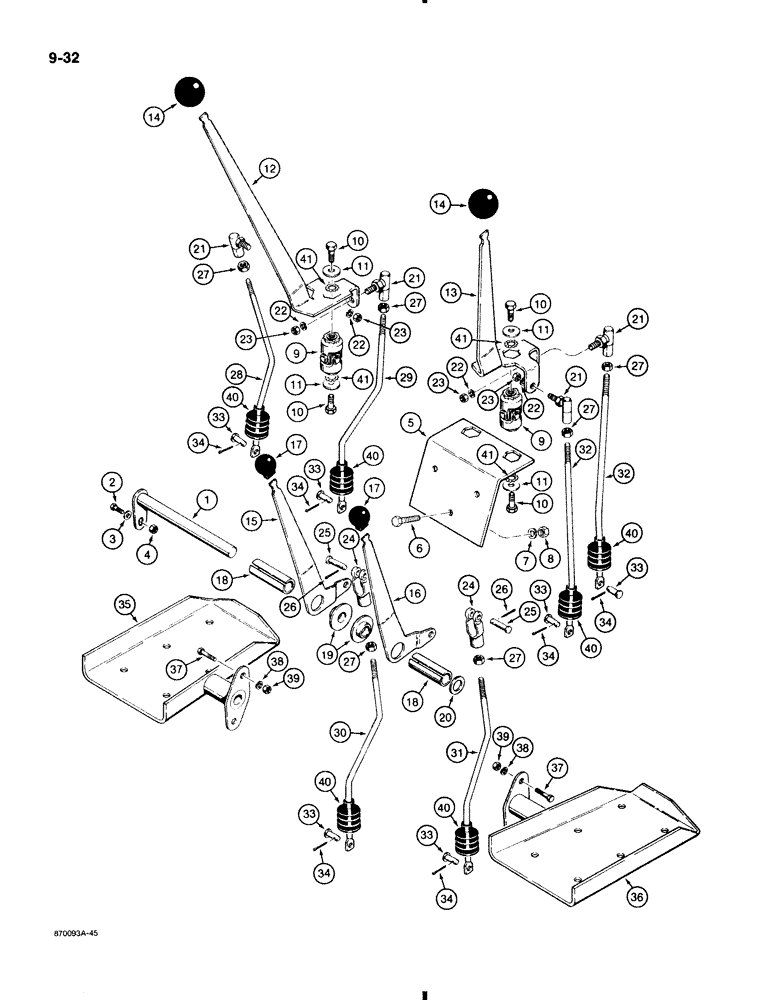

Запчасти Case 580K (9-032) - BACKHOE CONTROLS WITH HAND SWING, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

D147932

SHAFT

pivot, control levers

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

1шт.

3

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

4

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

1шт.

5

D133542

SUPPORT

BRACKET universal joint mounting, attaches to control tower and valve mounting support

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

3шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

3шт.

9

D132579

ARTICULATION

JOINT universal, control levers

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

4шт.

12

D133538

CONTROL LEVER

LEVER left hand, boom and swing control

1шт.

13

D133539

CONTROL LEVER

LEVER right hand, bucket and dipper control

1шт.

14

D135401

KNOB

control levers

2шт.

15

D133540

CONTROL LEVER

LEVER left hand stabilizer control

1шт.

16

D133541

CONTROL LEVER

LEVER right hand stabilizer control

1шт.

17

D135399

KNOB

stabilizer control levers

2шт.

18

D128652

SPACER

control lever

2шт.

19

D128616

BUSHING

plastic

2шт.

20

495-11081

WASHER,3/4", SAE

Used as a spacer 3/4", SAE

1шт.

21

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, Serial Range: rod-lever

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-116

NUT,3/8" - 24, Gr 5

hex, plated, 3/8"-24 NF

4шт.

24

D134900

CLEVIS,3/8-24"

special, 3/8"

2шт.

25

141-73

CLEVIS PIN

PIN clevis, 3/8"

2шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

27

425-116

NUT,3/8" - 24, Gr 5

hex, plated, 3/8"-24 NF

6шт.

28

D134725

ROD

swing control

1шт.

29

D133544

ROD

boom control

1шт.

30

D134716

ROD

left hand stabilizer control

1шт.

31

D134715

ROD

right hand stabilizer control

1шт.

32

D133547

ROD

dipper and bucket control

2шт.

33

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

6шт.

34

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

35

D144681

FOOTREST

PLATFORM left hand foot rest

1шт.

36

D144682

FOOTREST

PLATFORM right hand foot rest, not used on models with extendable dipper

1шт.

37

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4"

4шт.

38

492-11038

LOCK WASHER,3/8"

4шт.

39

425-106

NUT,3/8"-16, Cl 5

4шт.

40

D85869

BELLOWS

BOOT control rods, if used

6шт.

41

493-81006

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER internal-external tooth lock, plated, 3/8"

4шт.
