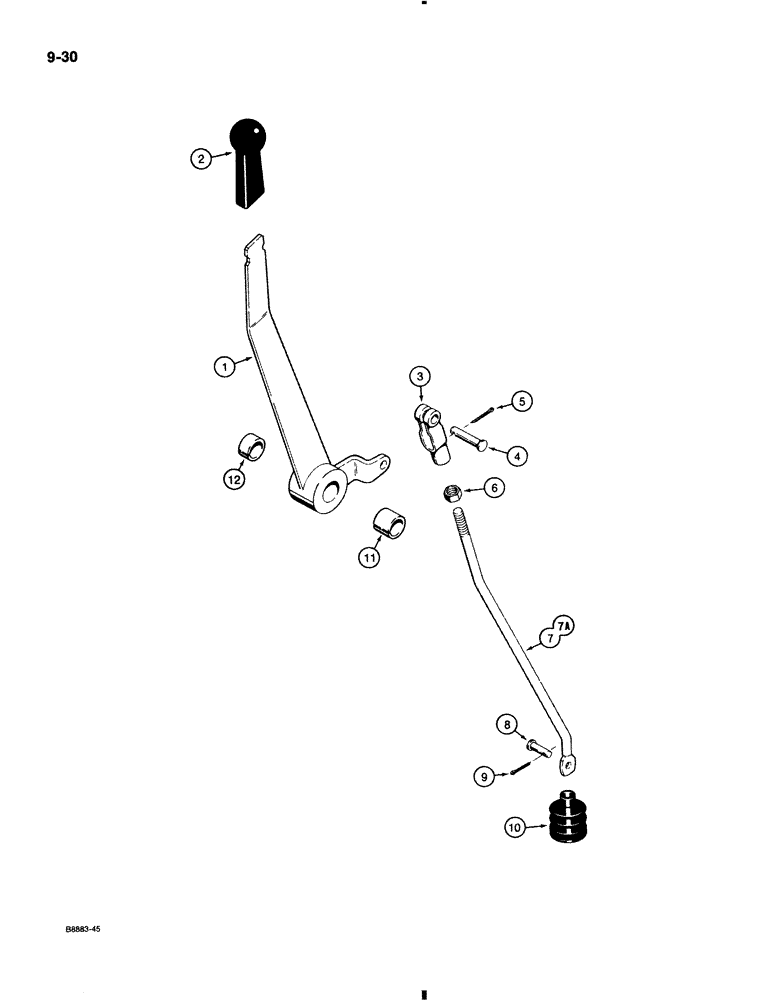

Запчасти Case 580K (9-030) - BACKHOE CONTROLS WITH FOOT SWING (09) - CHASSIS/ATTACHMENTS

1

D133476

CONTROL LEVER

LEVER extendahoe control

1шт.

2

D135387

GRIP

KNOB extendahoe control lever

1шт.

3

D134900

CLEVIS,3/8-24"

special, 3/8"

1шт.

4

141-73

CLEVIS PIN

PIN clevis, 3/8"

1шт.

5

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

129-123

NUT,3/8"-24, G5

1шт.

7

D134724

ROD

extendahoe control, used on models without tilt backhoe controls

1шт.

7a

D139421

ROD

extendahoe control, used on models with tilt backhoe controls

1шт.

8

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

D85869

BELLOWS

BOOT control rod, if used

1шт.

11

D139527

SPACER

used only on models with tilt backhoe controls

1шт.

12

D139526

SPACER

left side of boom lever, used only on models with extendable tilt backhoe controls

1шт.
