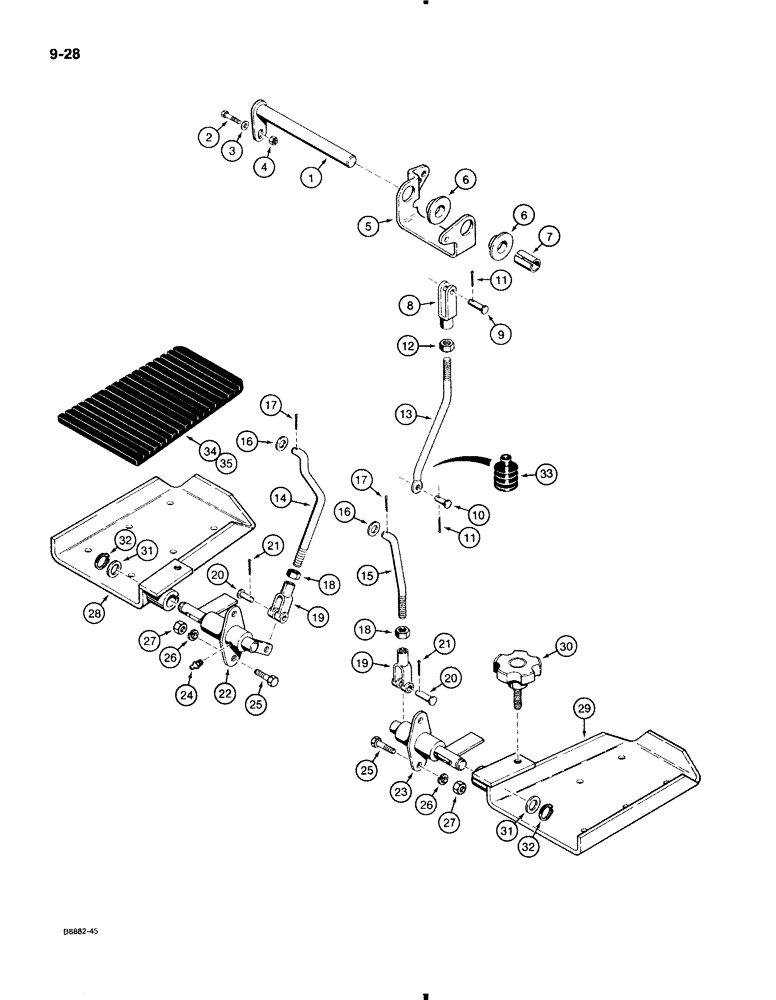

Запчасти Case 580K (9-028) - BACKHOE CONTROLS W/ FOOT SWING, W/ NON-EXTENDABLE DIPPER USED ON MODELS W/ TILT BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D148039

SHAFT

pivot, swing bracket

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

1шт.

3

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

1шт.

4

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

1шт.

5

D134702

BRACKET

swing

1шт.

6

D128616

BUSHING

plastic, swing bracket

2шт.

7

D139525

SPACER

swing bracket

1шт.

8

D134900

CLEVIS,3/8-24"

special, 3/8"

1шт.

9

141-73

CLEVIS PIN

PIN clevis, 3/8"

1шт.

10

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

11

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

425-116

NUT,3/8" - 24, Gr 5

hex, plated, 3/8"-24 NF

1шт.

13

D139409

ROD

swing bracket to backhoe control valve swing section

1шт.

14

D139410

ROD

left hand swing pedal to swing bracket

1шт.

15

D139411

ROD

right hand swing pedal to swing bracket

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, plated, 3/8"

2шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

18

425-116

NUT,3/8" - 24, Gr 5

hex, plated, 3/8"-24 NF

2шт.

19

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

2шт.

20

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

21

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

D139412

SHAFT

left hand swing pedal

1шт.

23

D138558

SHAFT

right hand swing pedal

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

4шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4"

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

425-106

NUT,3/8"-16, Cl 5

4шт.

28

D144834

PEDAL

left hand swing

1шт.

29

D144833

PEDAL

right hand swing

1шт.

30

D138559

KNOB

swing pedal adjustment

2шт.

31

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER swing pedal shaft

2шт.

32

D95097

RING, SNAP

RING retaining, swing pedal shaft

2шт.

33

D85869

BELLOWS

BOOT swing rod, at floor plate, if used

1шт.

34

D137492

LINING

PAD rubber, left hand swing pedal, optional deluxe interior

1шт.

35

D137491

LINING

PAD rubber, right hand swing pedal, optional deluxe interior

1шт.
