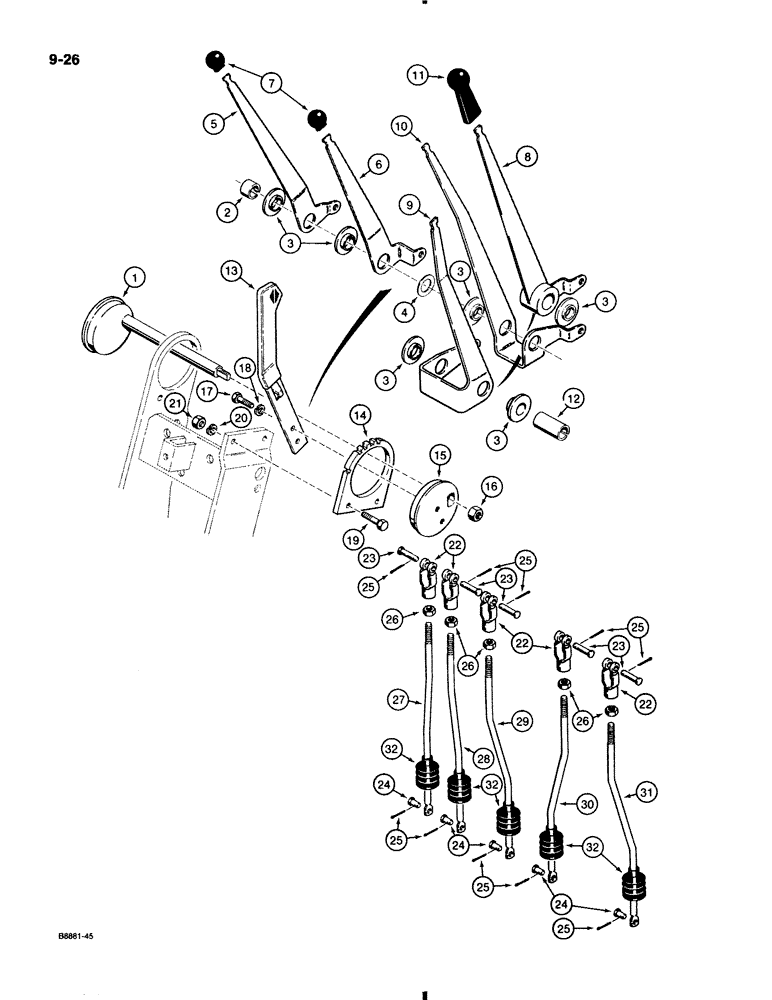

Запчасти Case 580K (9-026) - BACKHOE CONTROLS W/ FOOT SWING, W/ NON-EXTENDABLE DIPPER USED ON MODELS W/ BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D148040

SHAFT

pivot, control levers

1шт.

2

D139526

SPACER

left side of boom lever

1шт.

3

D128616

BUSHING

plastic, control levers

6шт.

4

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, used as a shim between control levers

1шт.

5

D139646

LEVER

left hand stabilizer control

1шт.

6

D139647

LEVER

right hand stabilizer control

1шт.

7

D135399

KNOB

stabilizer control levers

2шт.

8

D133474

CONTROL LEVER

LEVER dipper control

1шт.

9

D133475

CONTROL LEVER

LEVER boom control

1шт.

10

D133473

CONTROL LEVER

LEVER bucket control

1шт.

11

D135387

GRIP

KNOB boom, dipper, and bucket control levers

3шт.

12

D139528

SPACER

not used on models with extendable dipper, see Figure 9-30 for extendable dipper spacer

1шт.

13

D141290

HANDLE

lever adjustment

1шт.

14

D139911

PLATE

BRACKET lever adjustment

1шт.

15

D139420

PLATE

lever pivot

1шт.

16

129-148

JAM NUT,Jam, 3/4"-10, G5

jam, hex, plated, 3/4" - 10 NC

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex head, plated, 5/16" - 18 NC x 3/4"

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

hex, plated, 5/16" - 18 NC

2шт.

22

D134900

CLEVIS,3/8-24"

special, 3/8"

5шт.

23

141-73

CLEVIS PIN

PIN clevis, 3/8"

5шт.

24

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

5шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

10шт.

26

425-116

NUT,3/8" - 24, Gr 5

hex, plated, 3/8"-24 NF

5шт.

27

D139425

ROD

left hand stabilizer control

1шт.

28

D139426

ROD

right hand stabilizer control

1шт.

29

D139424

ROD

dipper control

1шт.

30

D139423

ROD

boom control

1шт.

31

D139422

ROD

bucket control

1шт.

32

D85869

BELLOWS

BOOT rods, at floor plate, if used

5шт.
